This pack contains

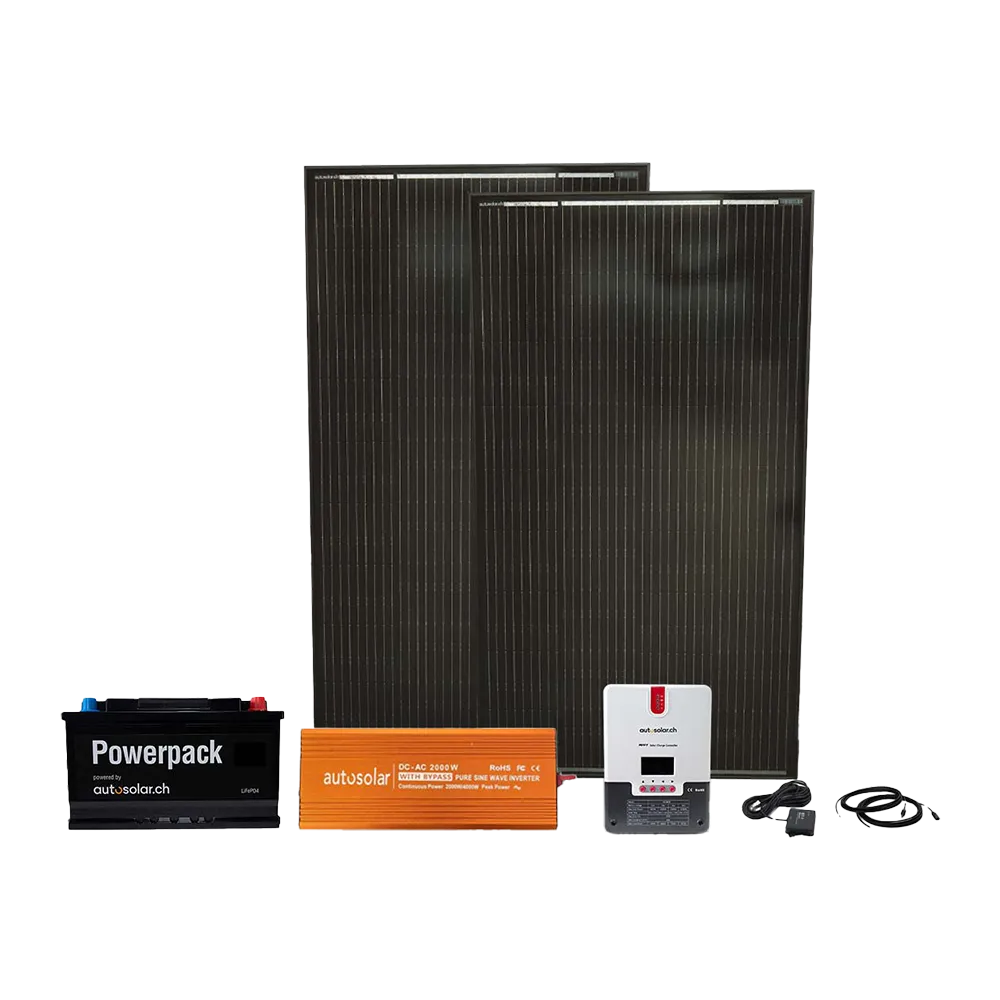

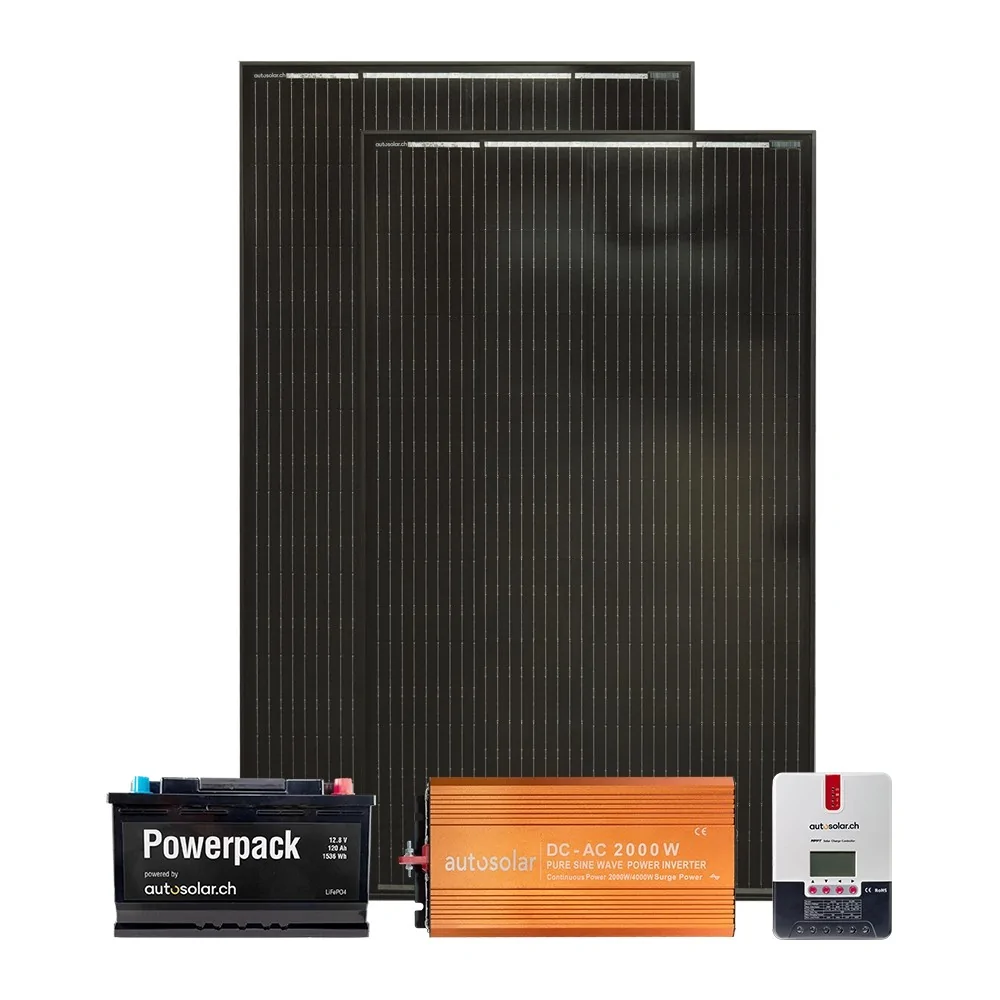

This solar set includes two 160W solar panels, a 30A charger, a 2000W pure sine wave inverter (12V-220V), a powerful 100AH LiFePo battery, and the necessary cables and plugs for charging the 12V batteries, including mounting material for the motorhome or camper.
The battery is included in this solar panel kit.
This solar kit contains everything you need to power your 230V devices with solar energy, just like at home. This system can produce an average of approximately 1,400Wh per day.
The included MPPT charge controller allows for approximately 25% more power to be generated from the solar panels. The high-quality, backlit display (optional) allows for easy monitoring of production, consumption, and battery status at any time.
Produkt-Nummer
set320-230mm

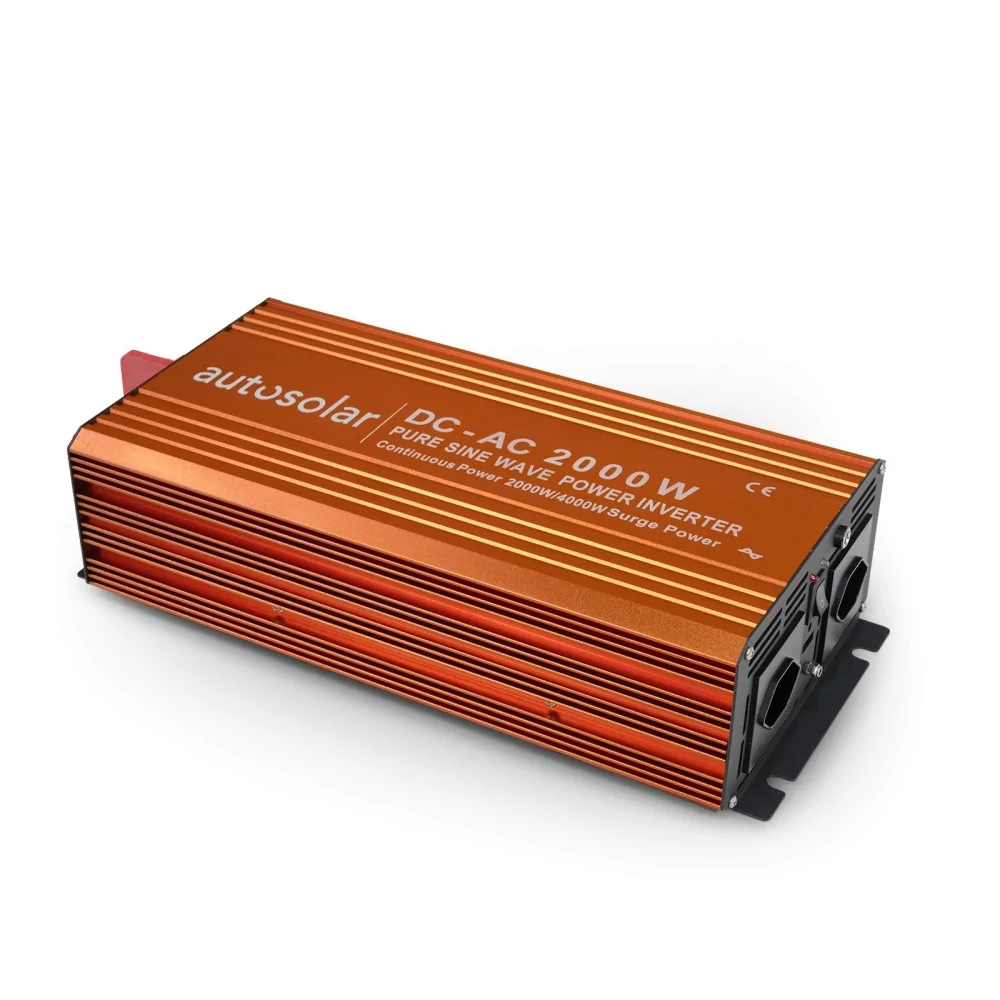

Produkt-Nummer
inv2000wSin
Size (length x width x height)
372 x 170 x 89 mm
Weight
4.2kg
Tension
12 V
Top performance
4000W
Continuous power
2000W
With network priority switching (bypass)
No
guarantee
2 years
Produkt-Nummer
dd2-s
Area of application
For motorhomes
Area of application
For campers
Produkt-Nummer
sika554-schwarz
Area of application
For motorhomes
Area of application
For campers
Produkt-Nummer
fuse30a
Produkt-Nummer
bk2
Produkt-Nummer
fbWR
Length of connection cable
2 m
guarantee
2 years

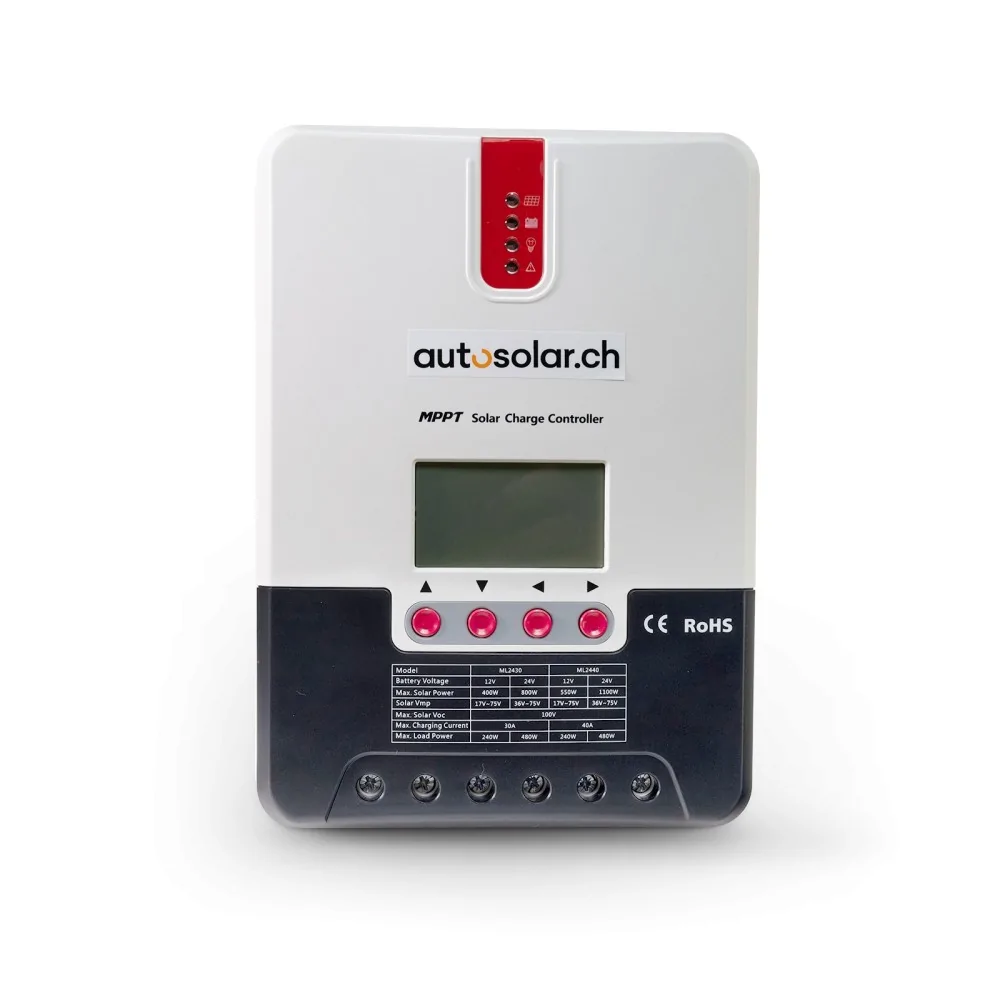

Produkt-Nummer
mppt30srne
Size (length x width x height)
238x173x72.5mm
Weight
2.0kg
Battery type
Suitable for lead/AGM/GEL/Lithium
Tension
12/24V
PV input voltage
100V
Charging current
30A
guarantee
2-year product warranty
Produkt-Nummer
bt1
Produkt-Nummer
rks
Produkt-Nummer
spoilerS
Area of application
For motorhomes
Area of application
For campers
Produkt-Nummer
kabel6mmMC4

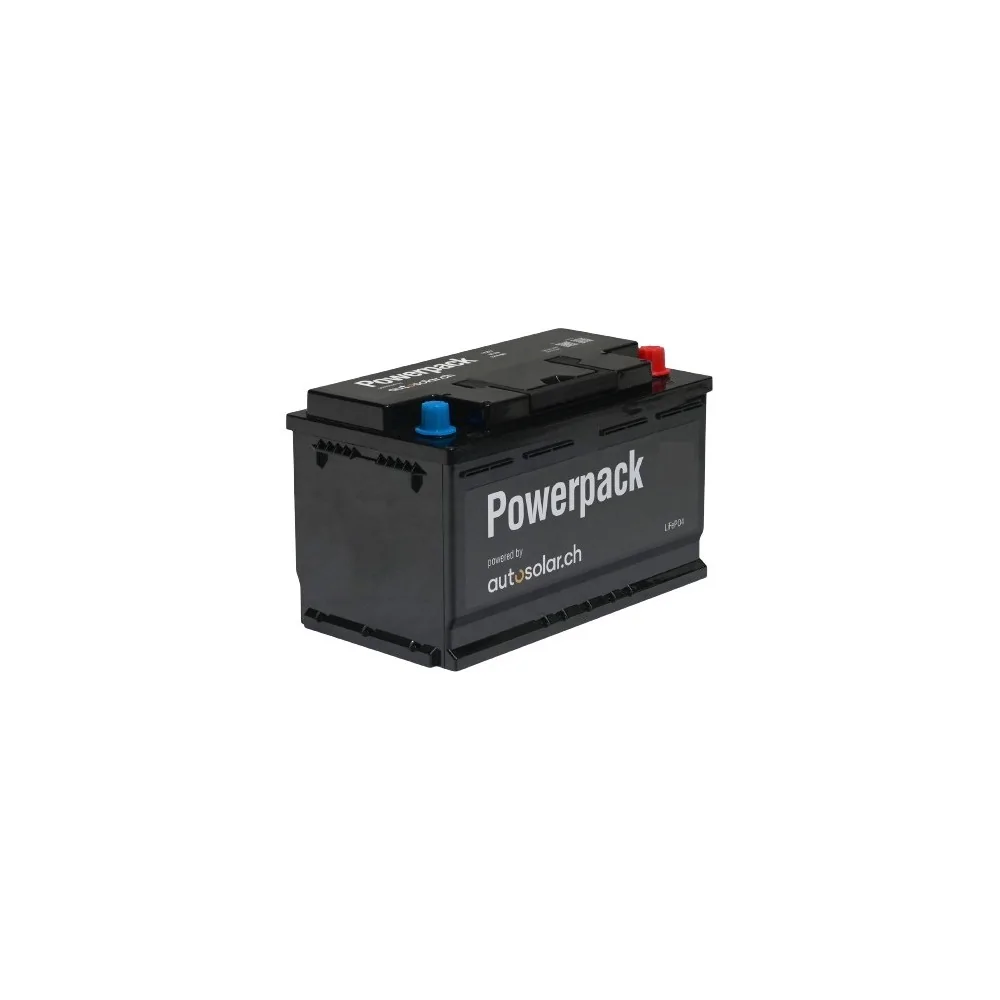

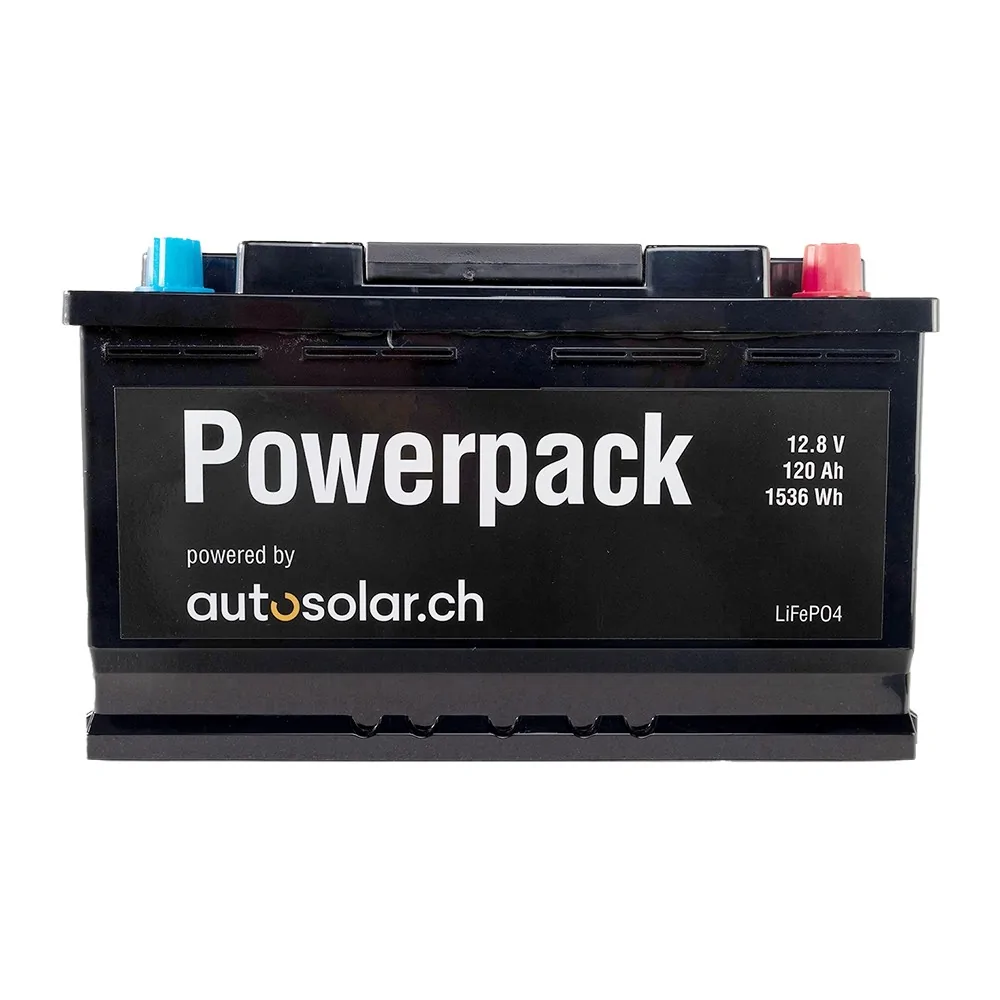

Produkt-Nummer
Li105ah-v2
Size (length x width x height)
318 x 176 x 190 mm
Weight
12.6 kg
Tension
12.8 V
constant output flow
150A
Cycles
over 2000 (50% DOD)
App available
Yes, via Wi-Fi or Bluetooth.
Produkt-Nummer
mono160b
Scope of delivery
1x 160W solar panel with 90cm cable and MC4 connector pre-assembled
Weight
9 kg
Solar module type
Monocrystalline with aluminum frame
Short-circuit current (Isc)
8.8 A
Open circuit voltage (Voc)
24 V
Maximum power (Pmax)
160 watts
Wir können gerne ein passendes Set für die jeweiligen Bedürfnisse zusammenstellen.

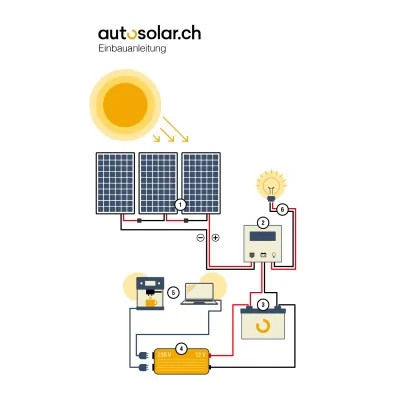

Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
