Sky Blue Balcony Power Plant 400-1600 Watts 899.00 - On sale!
Choose your solar power
More than 10 pieces in stock. Delivered within 24 hours. These 200-watt balcony solar panels produce clean electricity and look great. Slim, stable, and easy to install – ideal for any balcony railing and flexibly expandable. read more Compare Compare Products Swiss online shop
Encrypted payment
FREE shipping within 24 hours
Call us: 044 999 01 01
899.00
Choose your solar power
More than 10 pieces in stock.
Delivered within 24 hours. These 200-watt balcony solar panels produce clean electricity and look great. Slim, stable, and easy to install – ideal for any balcony railing and flexibly expandable. read more
Compare
Compare Products
Swiss online shop
Encrypted payment
FREE shipping within 24 hours
Call us: 044 999 01 01

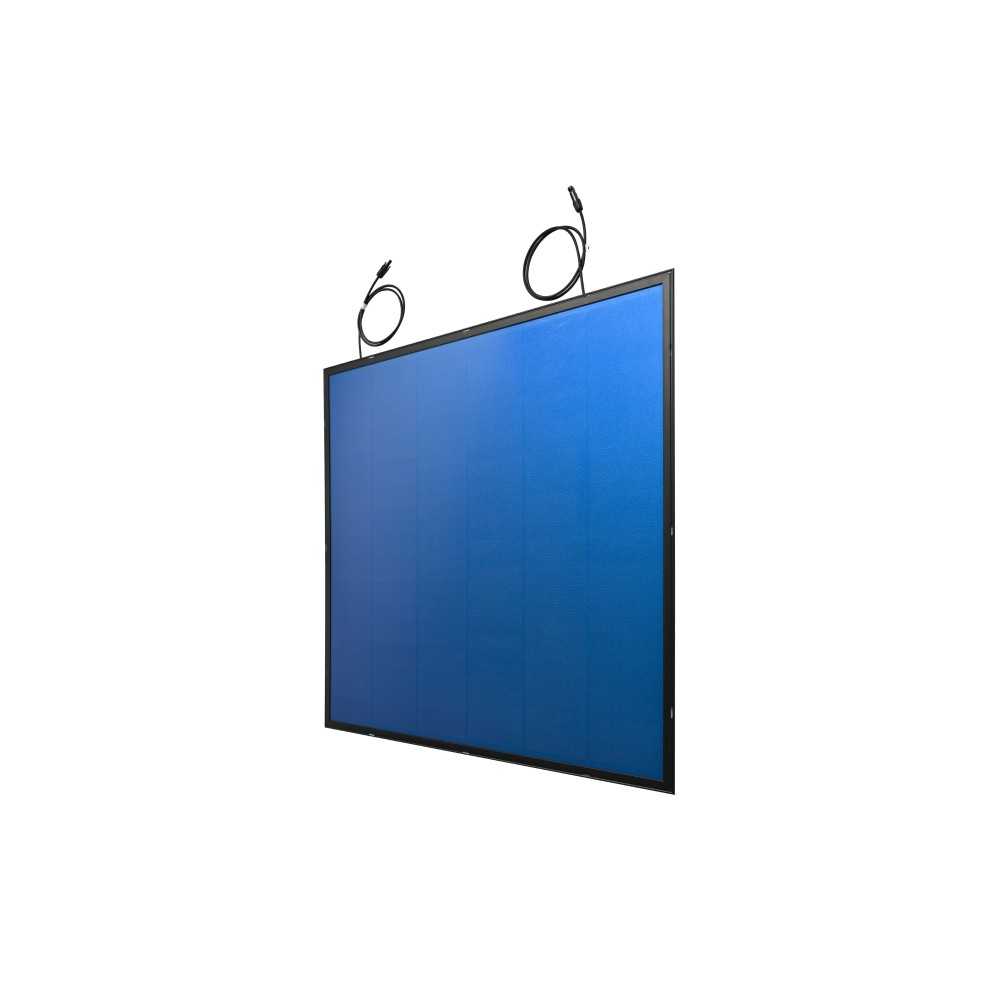

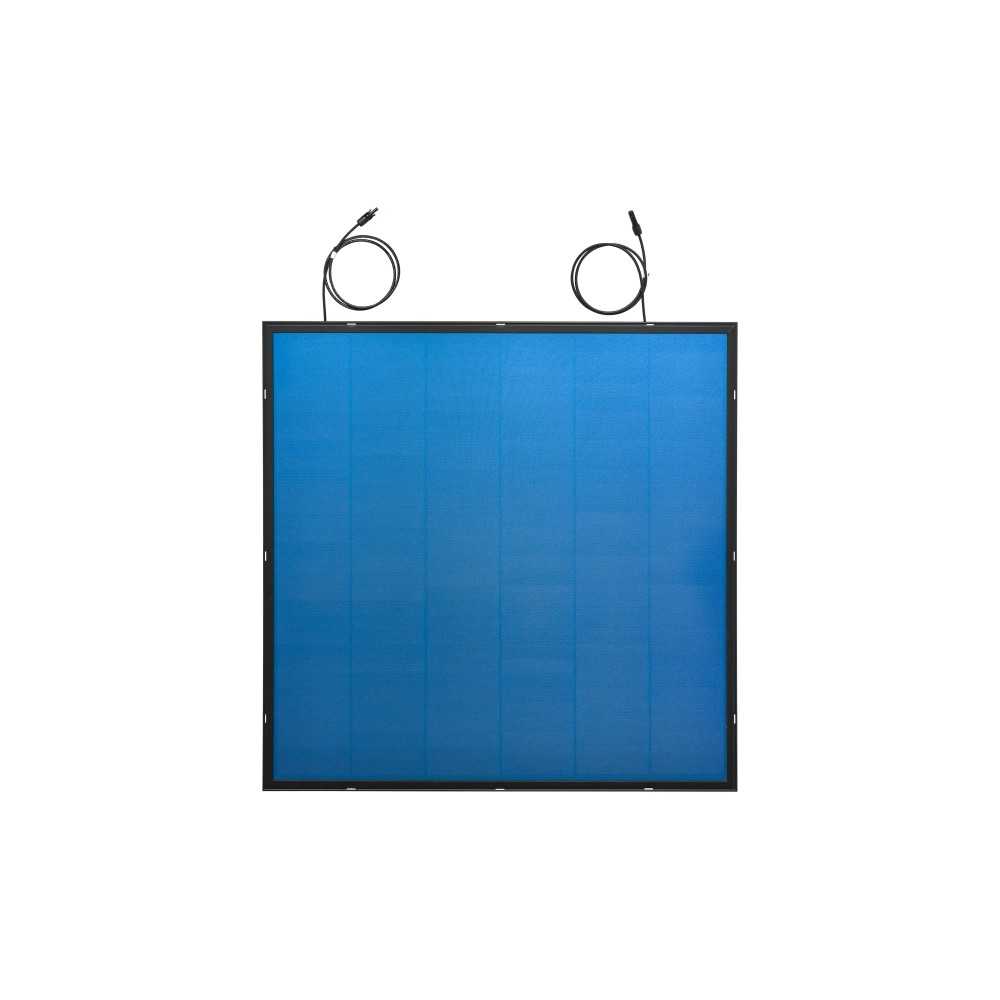

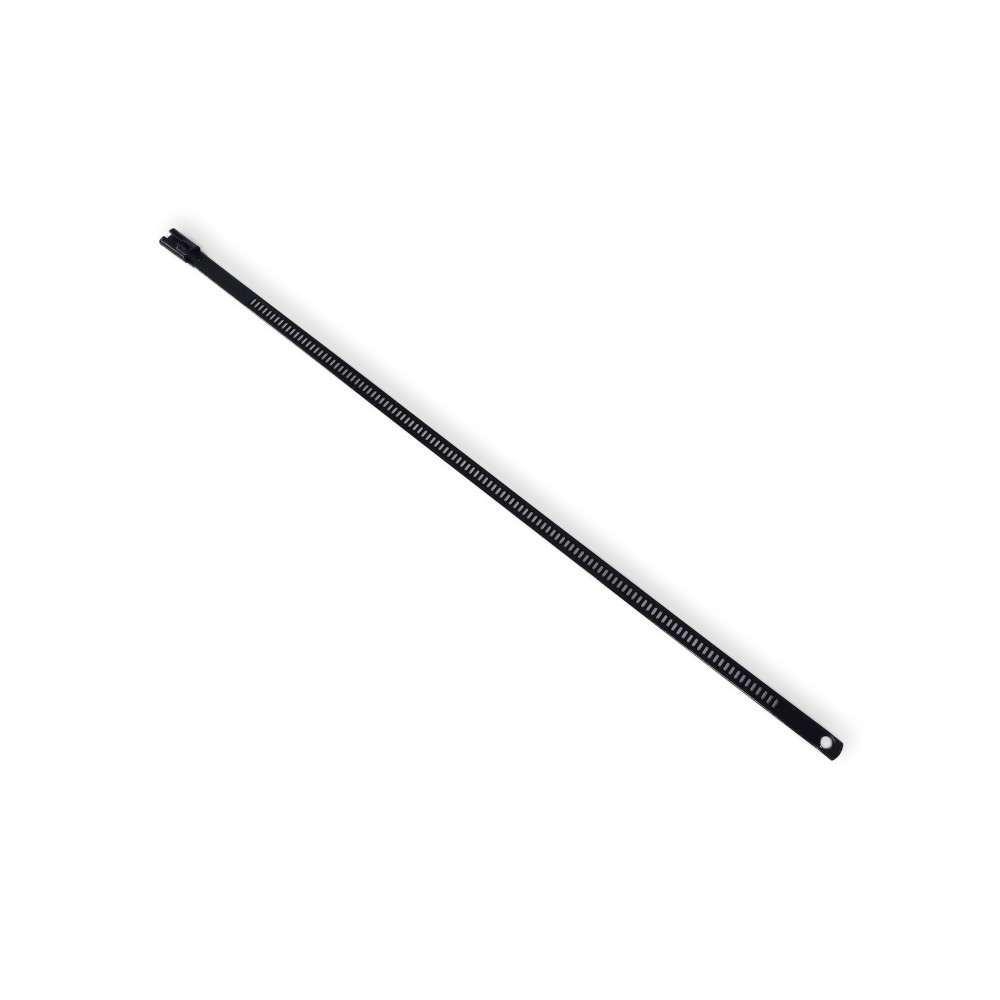

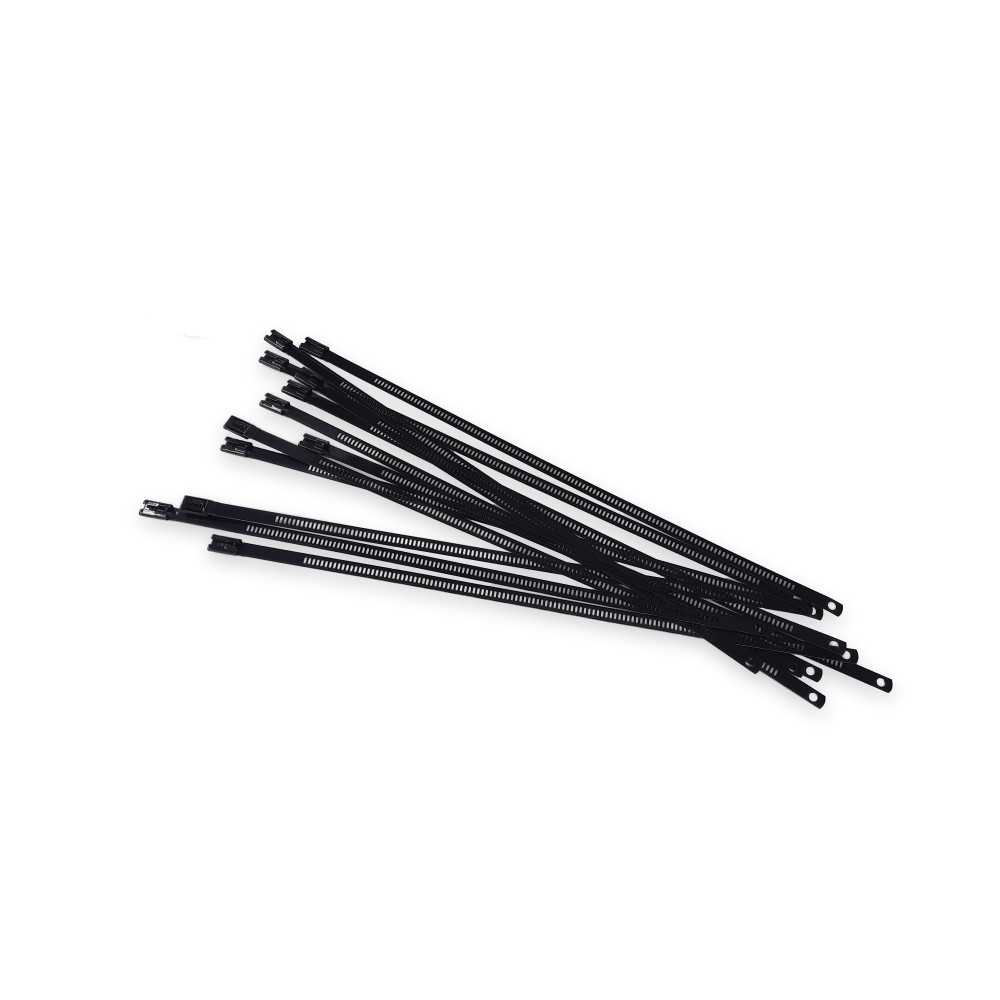

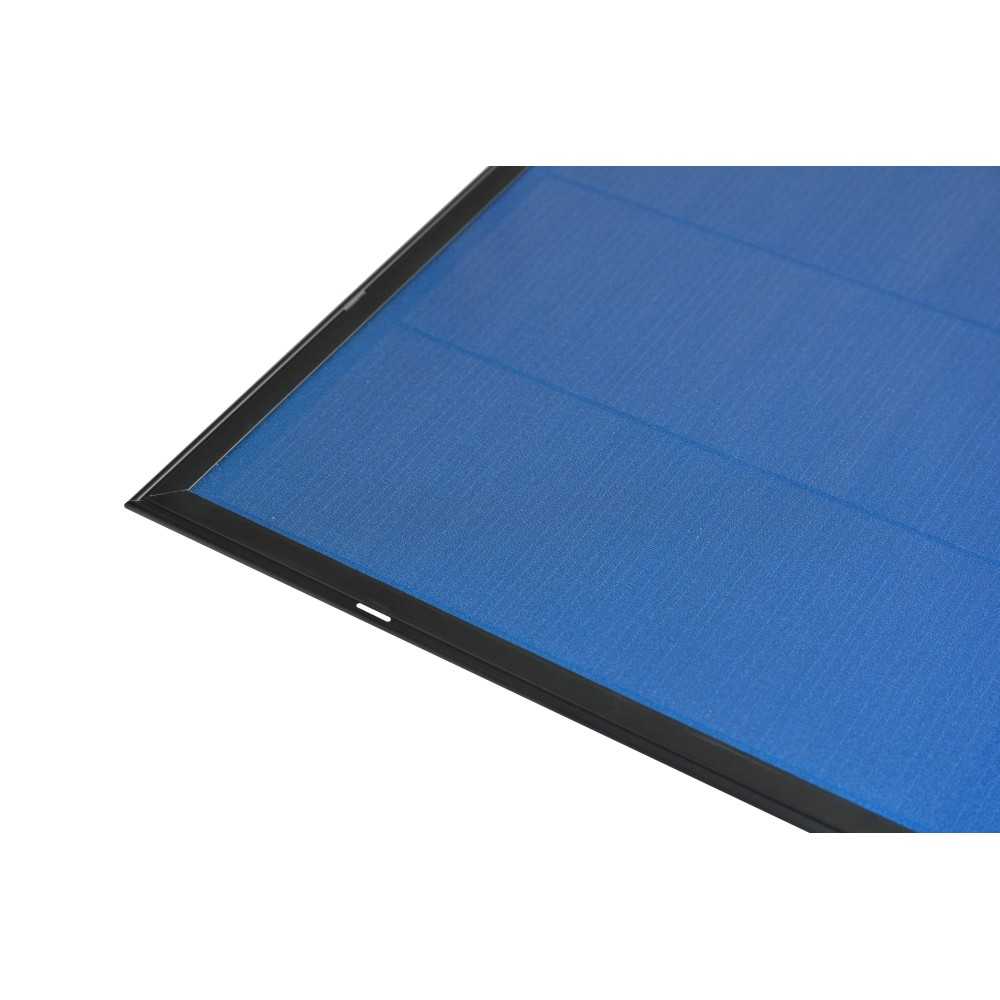

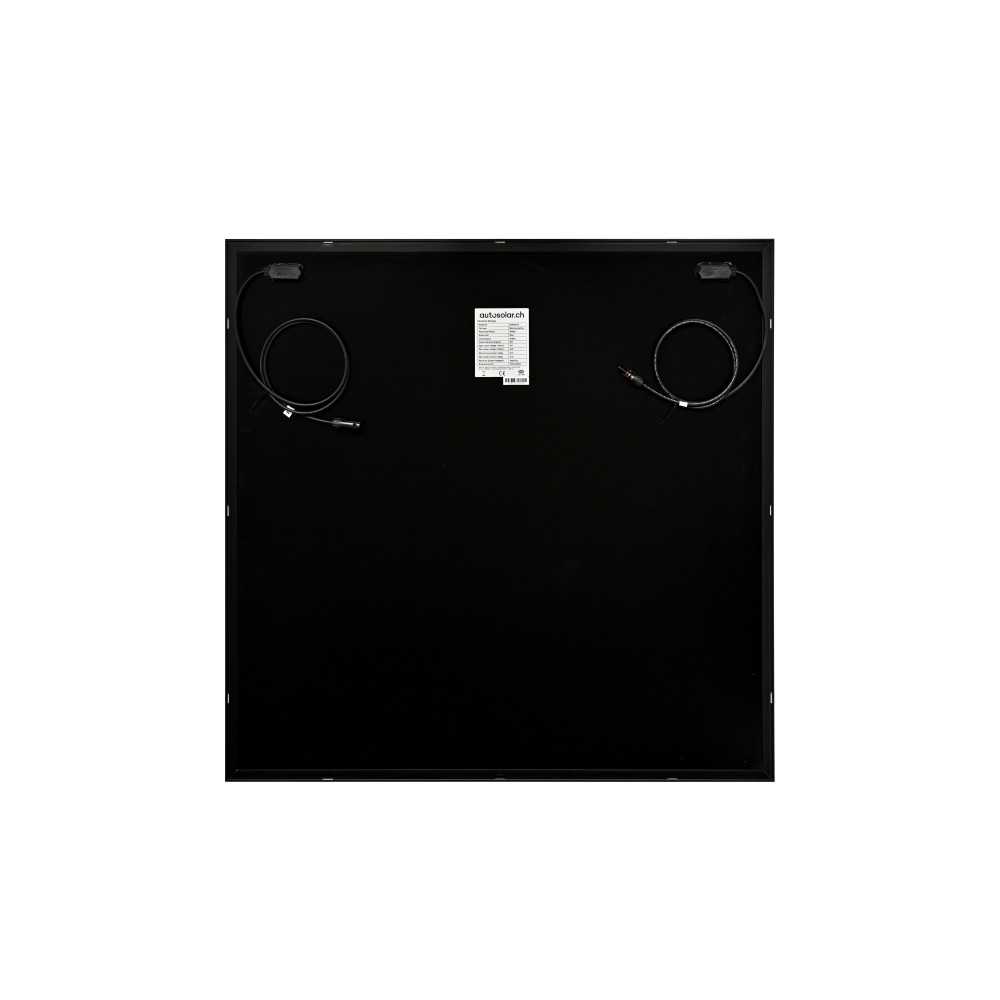

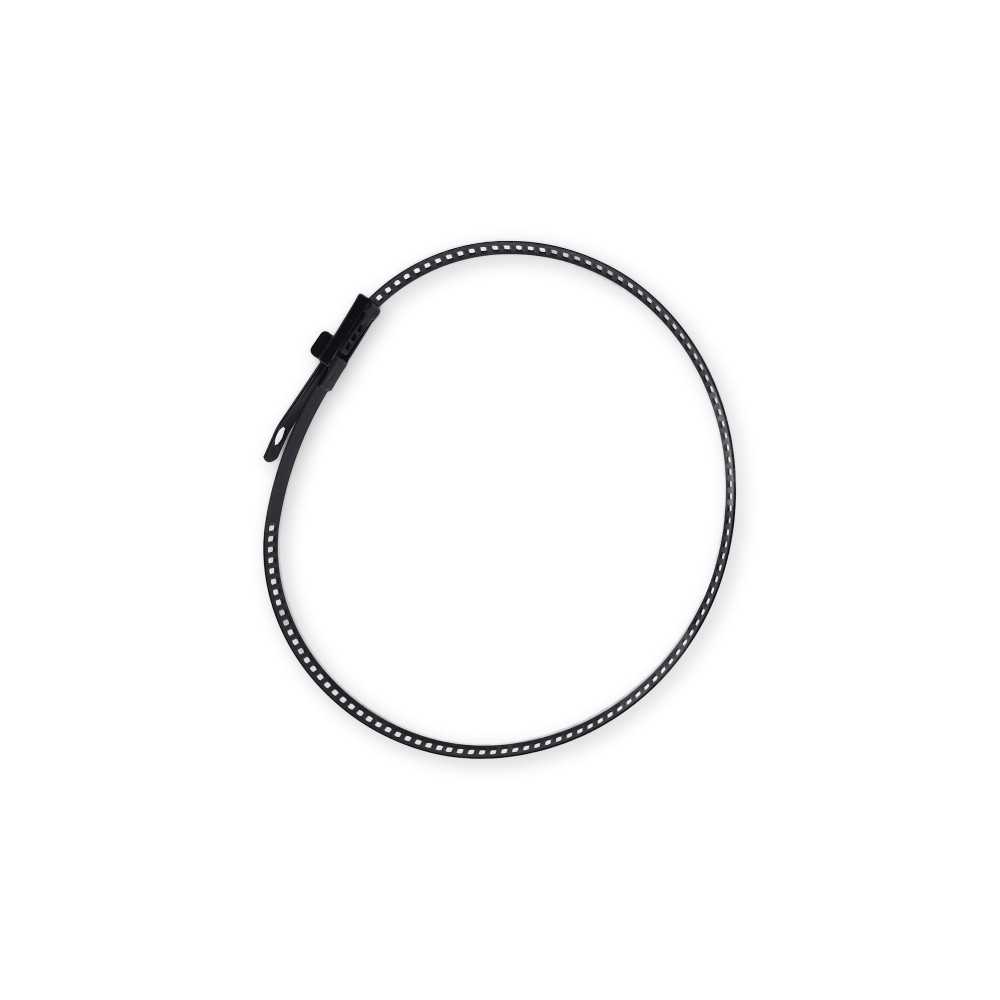

Our new 200-watt balcony solar panels are designed not only to generate electricity but also to be visually appealing. Instead of boring gray, you'll find colors and photorealistic designs that blend harmoniously into your home. Measuring 107 x 103 cm, the panels fit almost any balcony railing. You can easily install them yourself using the discreet eyelets and included metal cable ties.

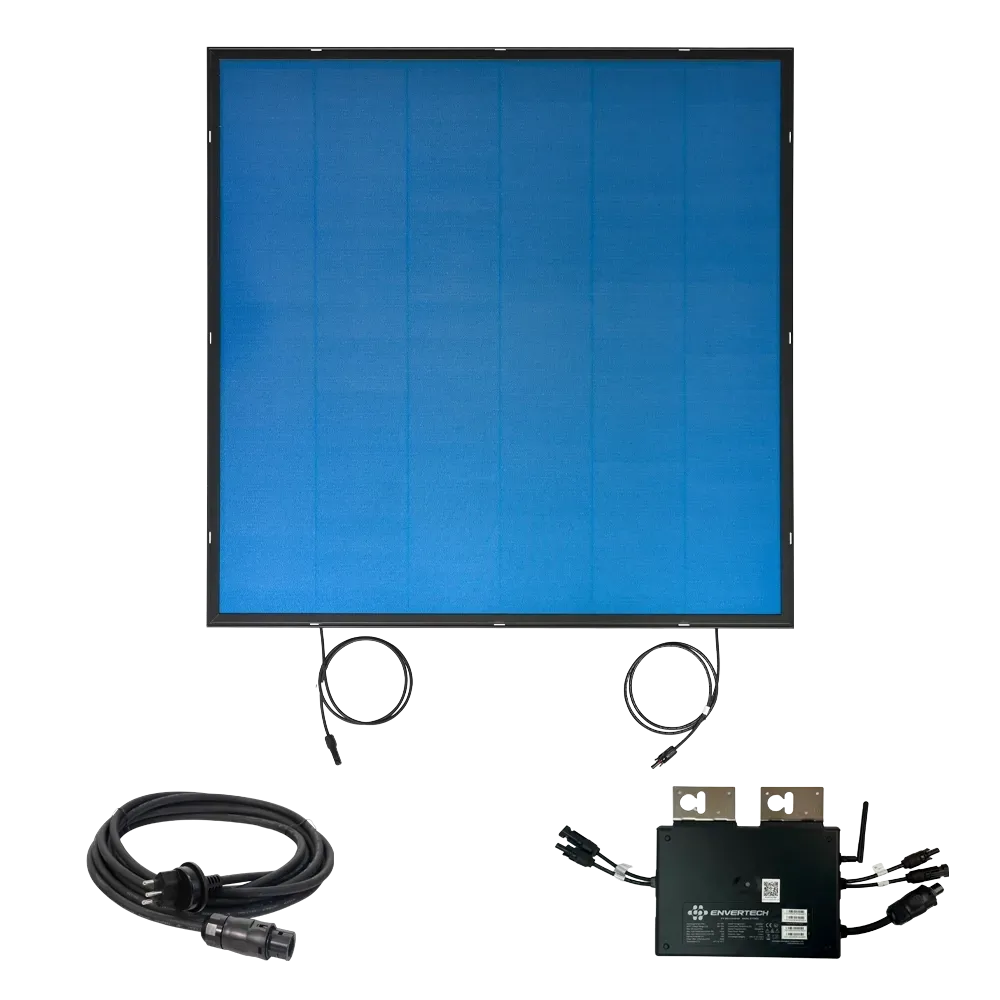

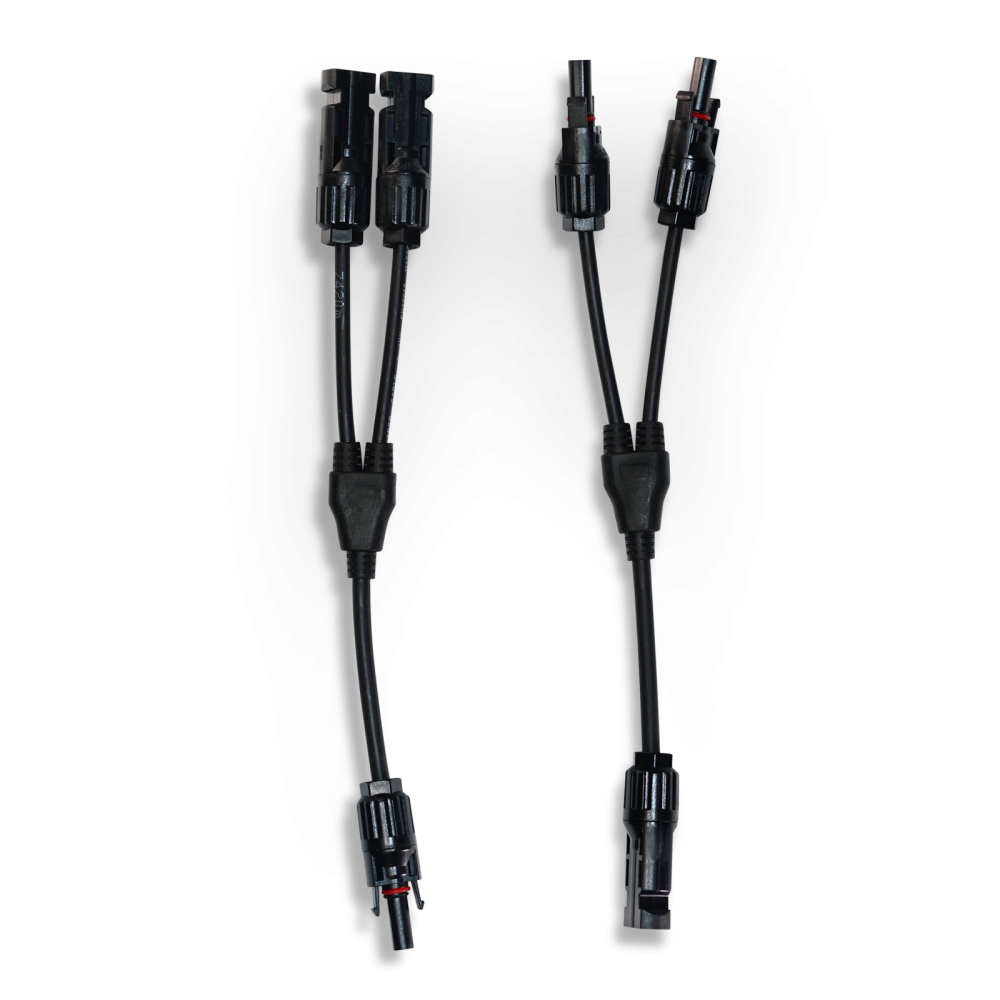

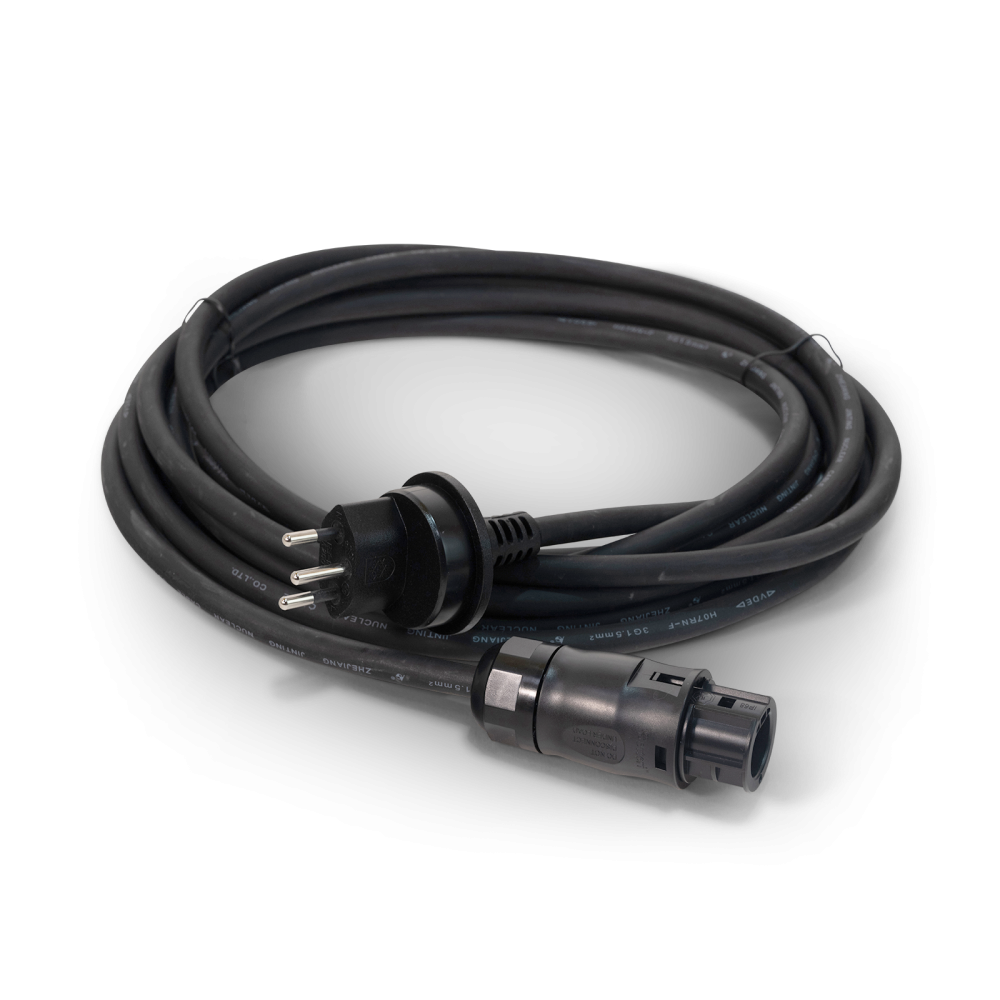

The panels are only 8 mm thin, giving them a slim and elegant appearance, but thanks to protective glass, they are just as robust as conventional modules. You can start small and expand your set at any time if you want to generate more solar power later. Everything is included: solar panels, inverter, connection cables, metal cable ties, adapters, and extension cables.

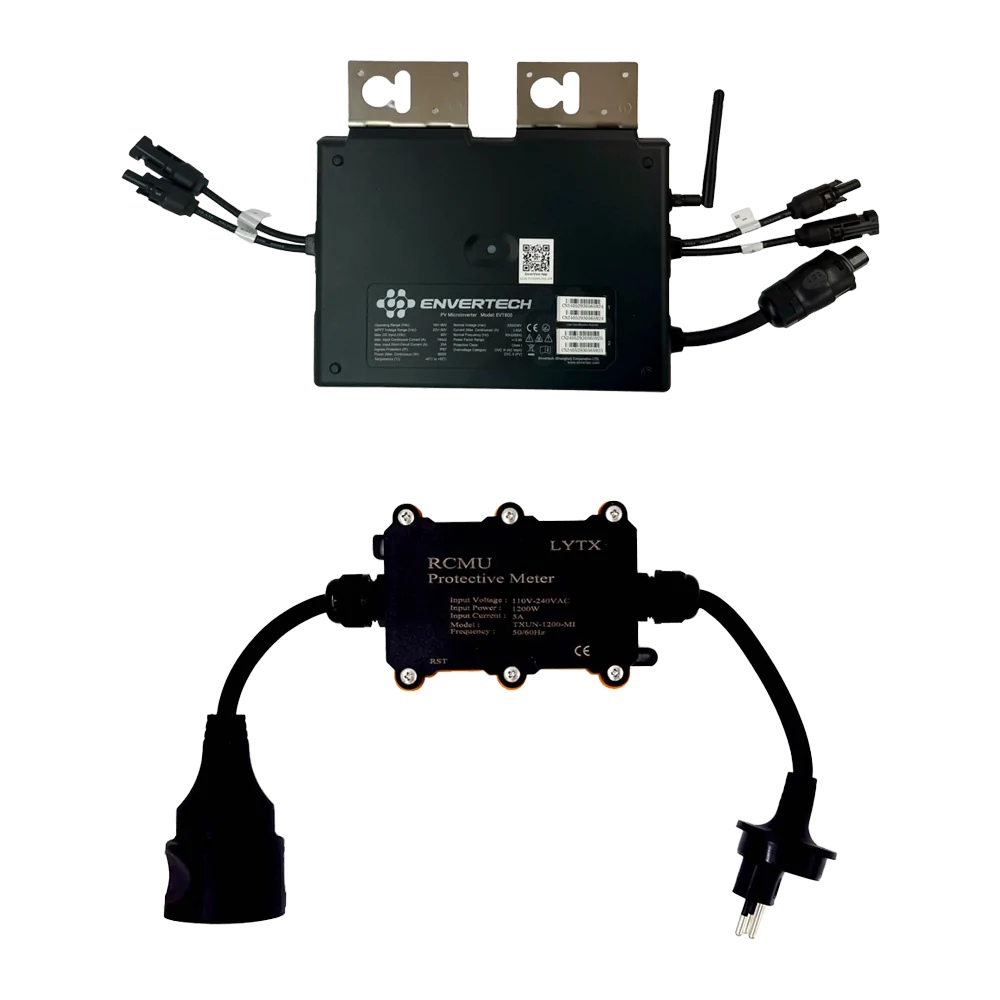

Technically, the panels offer 200 watts of power, are robust against weather conditions, and have a cable permeability of 84–88%. The inverter is available in 300 or 600 watt versions and ensures reliable feed-in to the home grid.
Important: If you want to install the modules outside your balcony railing or on the facade, you need your landlord's permission. A sample agreement is available to facilitate this. Soon you can produce your own solar power – beautiful, practical, and sustainable.
Technical data solar panel
| Length: | 1070 mm |
| Width: | 1030 mm |
| Height: | 8 mm |
| Weight: | 10.7 kg |
| Maximum power: | 200 watts peak |
| Open circuit voltage (Voc): | 41.1 volts |
| Short-circuit current (Isc): | 6.10 A |

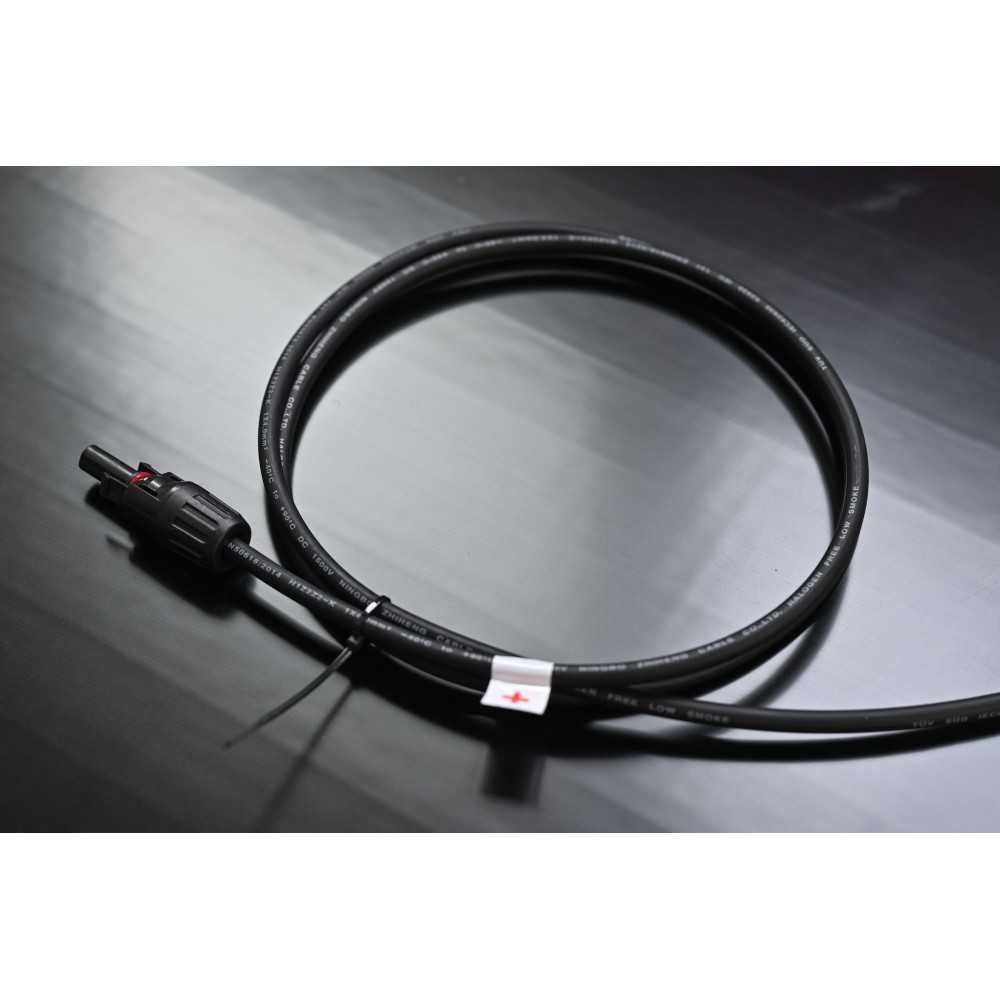

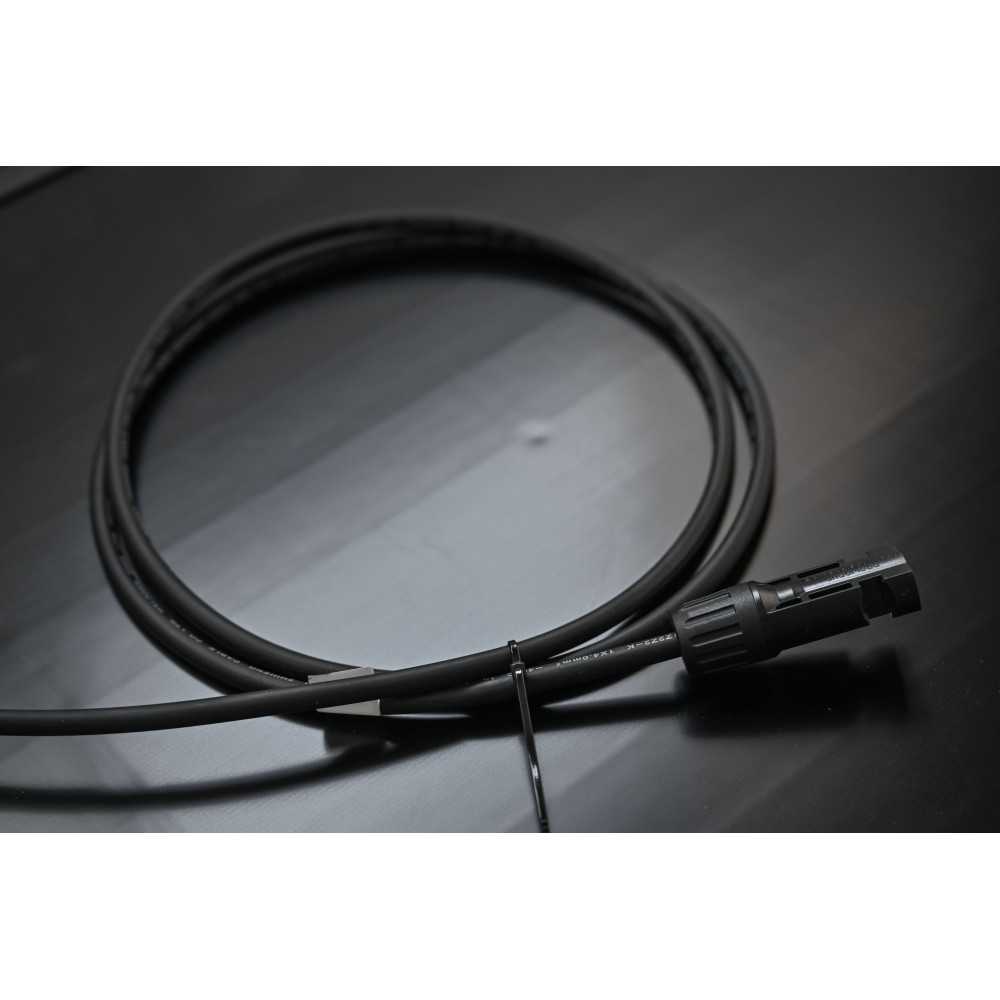

| Length of connection cables: | 150 cm |
| Permeability of the print | 84 - 88% |
Technical specifications 300 Watt inverter
| MPPT voltage range: | 22 - 60 volts |
| Maximum input voltage: | 60 volts |
| Maximum input current: | 15 A |
| Output voltage: | 230 V |
| Output power: | 300 watts |
| Weight: | 0.82 kg |
| Temperature range: | -20°C to 50°C |
| Dimensions (W x H x D): | 165 x 176 x 38 mm |
Technical specifications 600 Watt inverter
| MPPT voltage range (per input): | 25 - 55 volts |
| Maximum input voltage (per input): | 60 volts |
| Maximum input current (per input): | 13 A |
| Output voltage: | 230 volts |
| Output current: | 2.6 A |
| Output power: | 600 watts |
| Output frequency: | 50 / 60 Hz |
| Temperature range: | -40°C to 65°C |
| Protection certification: | IP67 |
| Dimensions (W x H x D): | 270 x 230 x 46 mm |
| Weight: | 3.05 kg |
Produkt-Nummer
setb600-bl
Scope of delivery
Solar panels, 230V CH cable, microinverter, mounting hardware
length
1070 mm
Width
1030 mm
Height
8 mm
Weight
10.7 kg
Solar module type
Monocrystalline with aluminum frame
Short-circuit current (Isc)
6.1 A
Solar system type
Balcony power plant
Plug type
MC4
AC plug type
Swiss 3-pin plug IP55
Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
