Produce your own electricity

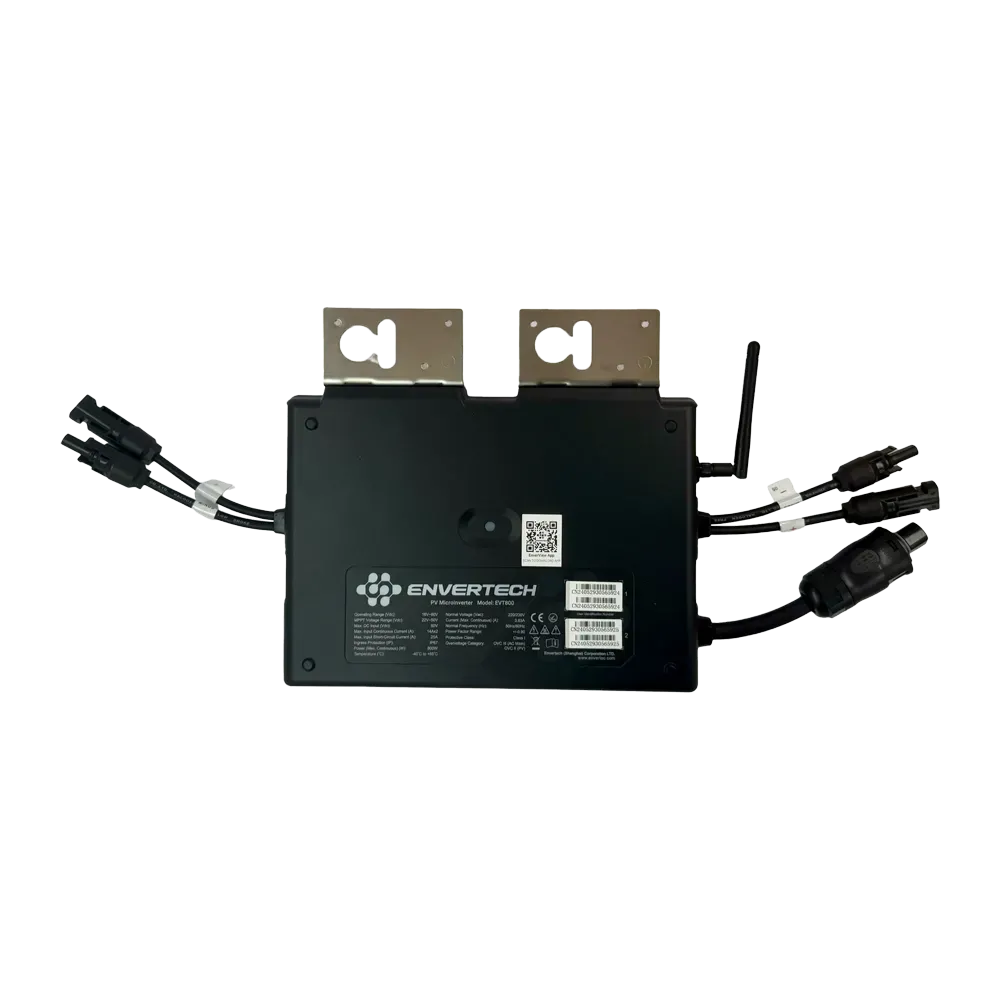

With our new micro-inverter, you can easily produce your own electricity. Simply connect two compatible solar panels and you’re ready to go. Thanks to the app (for Android and iOS), and the cloud connection, you can always keep an eye on your power production.
Free app

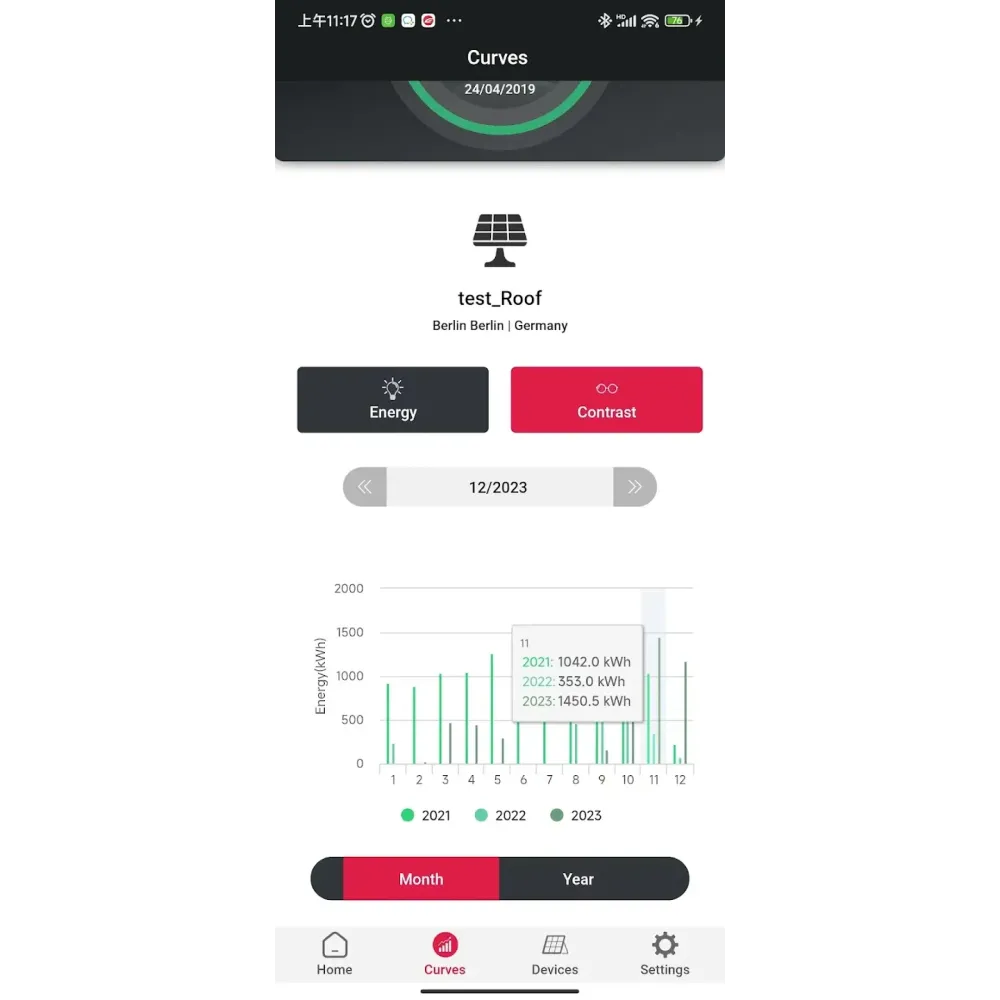

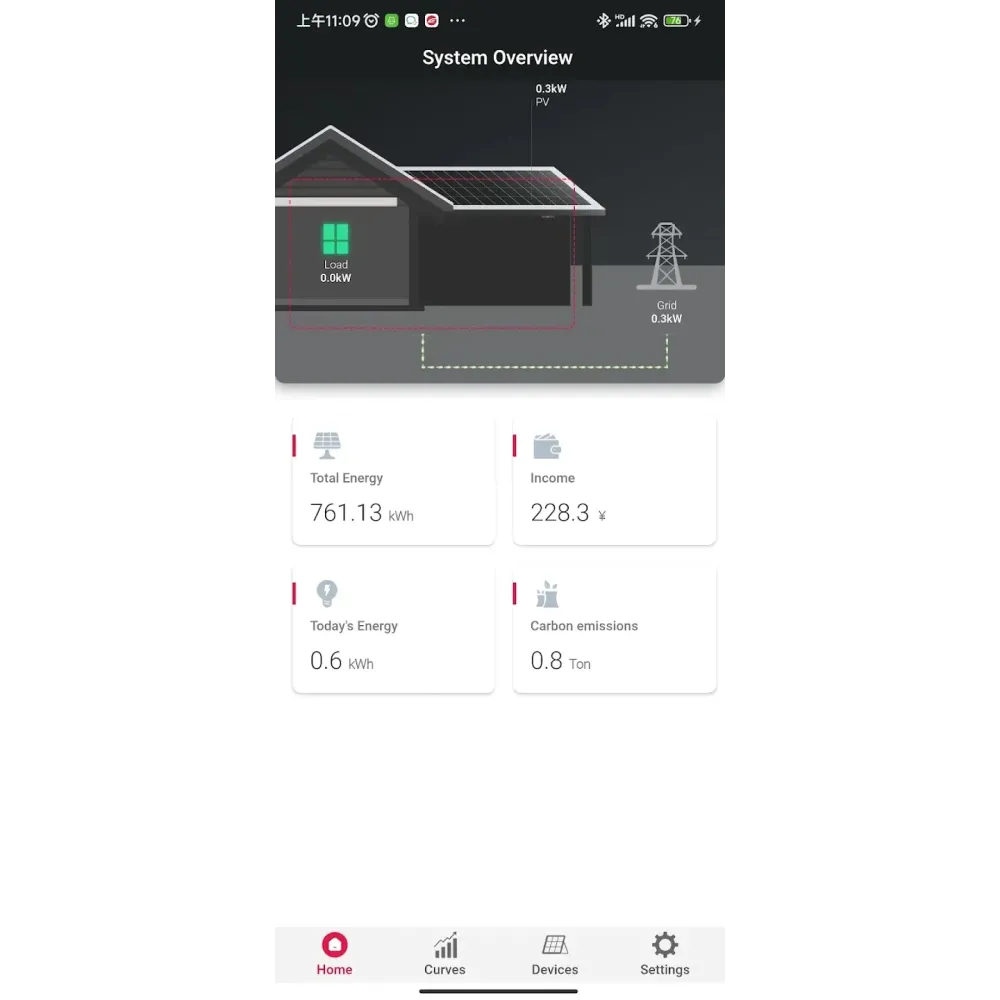

The free app provides you with information about your current output, daily production, as well as total production per month and year. This way, you always know exactly how much electricity you are currently generating and how much you have produced over time.
Maximum permitted power
Our micro-inverter is limited to the maximum permitted output of 600 watts. This allows you to connect it directly to a protected outdoor socket without any additional permits and feed your electricity into the grid.
The higher the connected solar capacity, the faster and more often you can reach the maximum output of 600 watts. Here you can find our balcony solar systems, which include everything you need to get started right away.
Weatherproof
The micro-inverter is protected to IP67 standard and can therefore be installed outdoors without any problems. Temperature fluctuations do not affect it either, as its operating temperature range is between -45 °C and +65 °C. It is perfectly suited for permanent outdoor use.
Recommended power range: 180 – 550 W per input
AC voltage range: 189 – 260 V
Max. AC current: 3.63 A
Produkt-Nummer
evt800
length
264 mm
Width
194 mm
Height
35.5 mm
Weight
4.1 kg
Protection certification
IP67
max. idle current PV
25 A
Maximum Power Voltage (Vpm)
60 V
MPPT voltage range
22V – 50V
PV input voltage
16V – 60V
max. input current
14 A per channel
Continuous power
180W – 550W per input
Operating temperature
-40°C – +65°C
