For corrugated eternit and corrugated iron

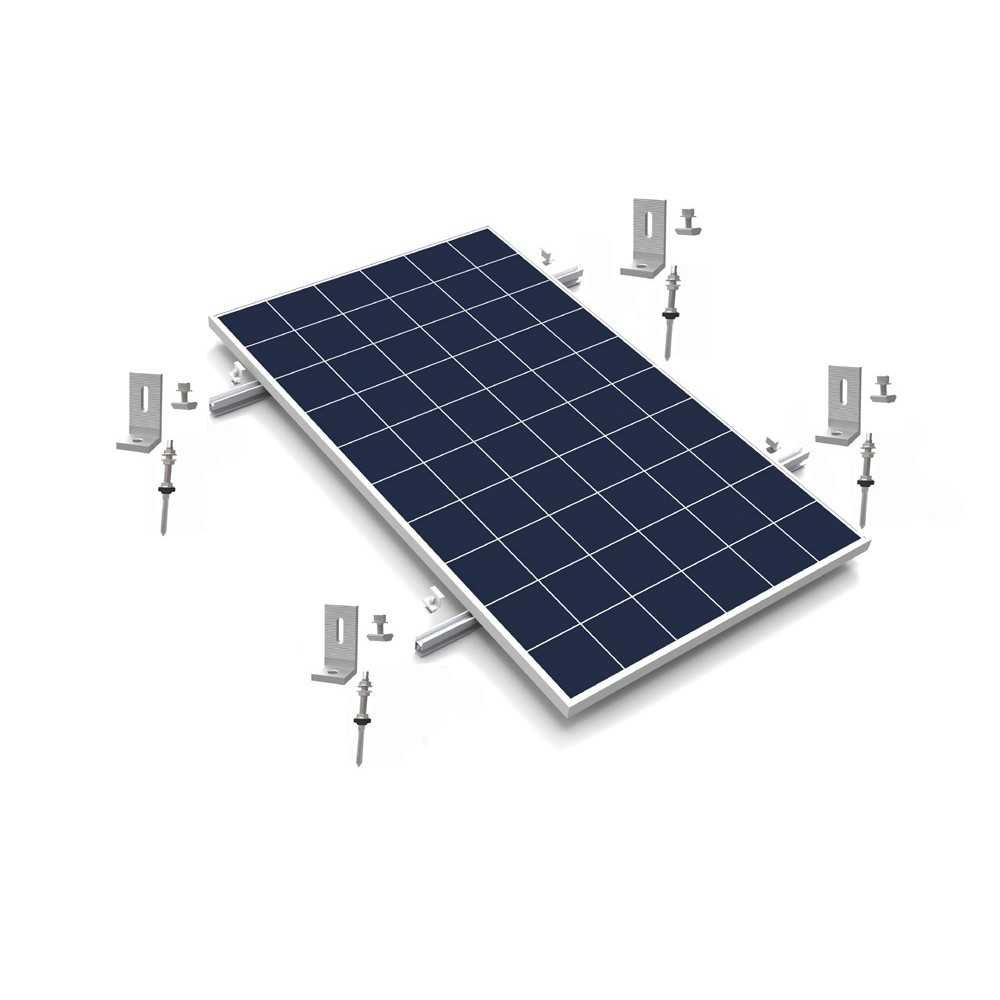

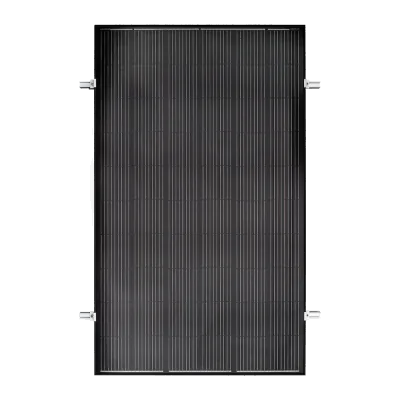

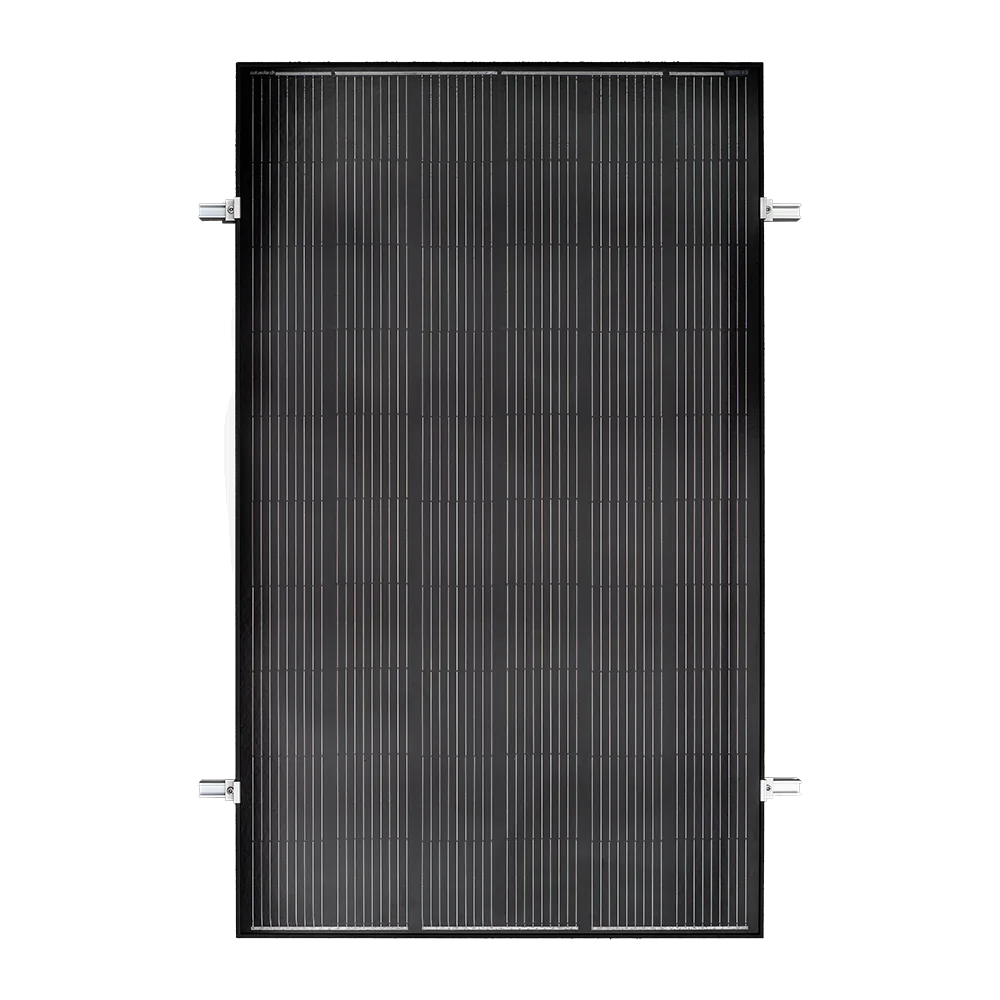

With our corrugated iron / corrugated eternit fastening sets, you can anchor your solar panels neatly and firmly on the roof. The set includes hanger bolts, L-hooks, fastening screws, support rails and slot nuts. Everything is included that is needed to attach one or more panels to the roof. You can choose the frame height to match your panels. Our panels have the following frame heights.

• 100W monocrystalline = 30mm height
• 160 W monocrystalline = 35mm height
• 335 W / 400 W monocrystalline = 40mm height

Expandable

Would you like to adapt your solar system to your new needs and install more solar panels? No problem, our mounting system is designed in such a way that you can simply use an extension and add more modules in the future.

Technical specifications

• Rail length: 115cm (max. panel width 108cm)
• Material: aluminum or stainless steel
• suitable for roof tiles with a height of up to 40mm
• Solar panel height selectable

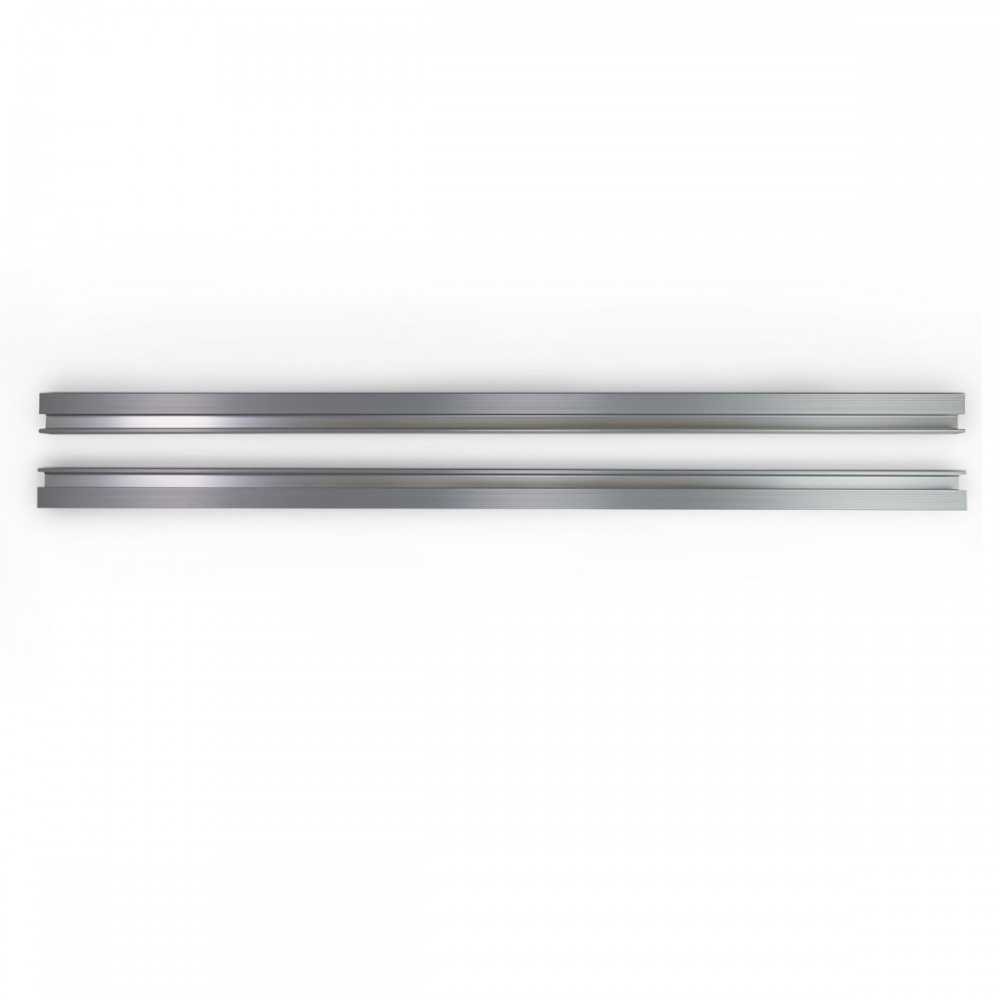

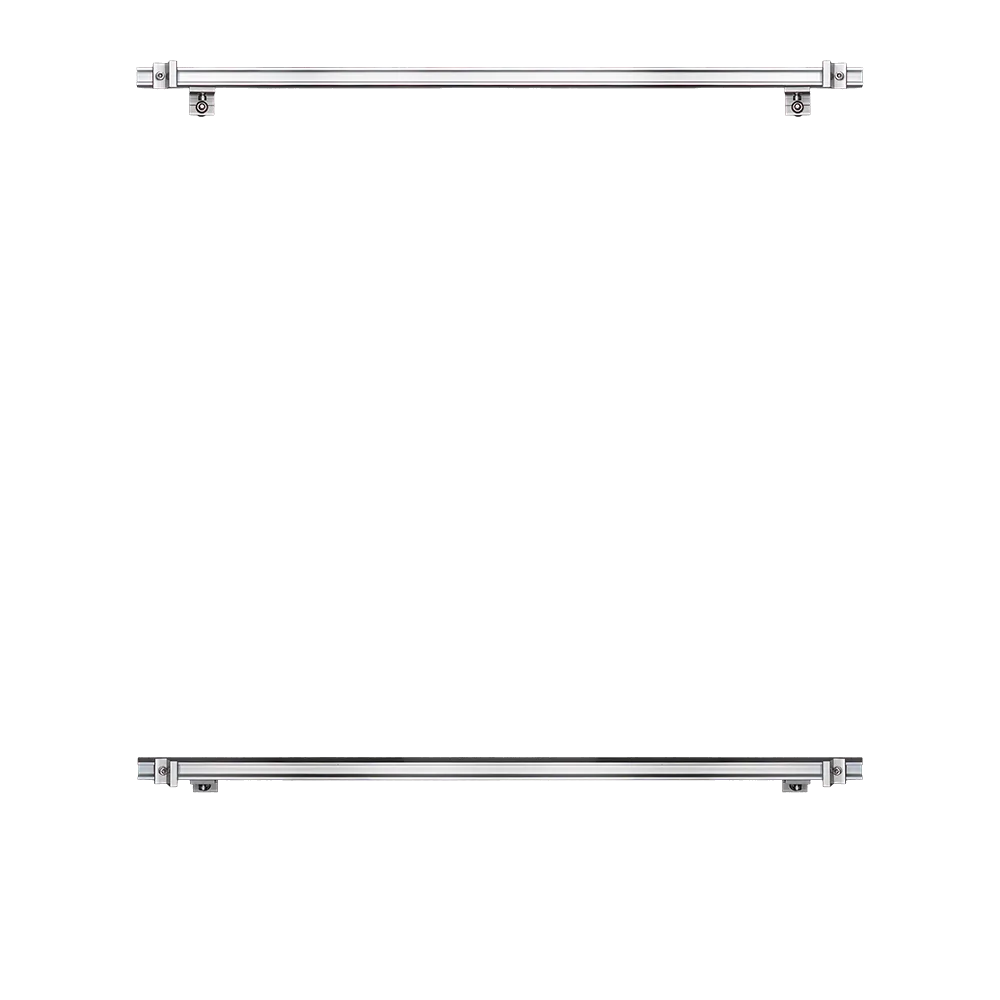

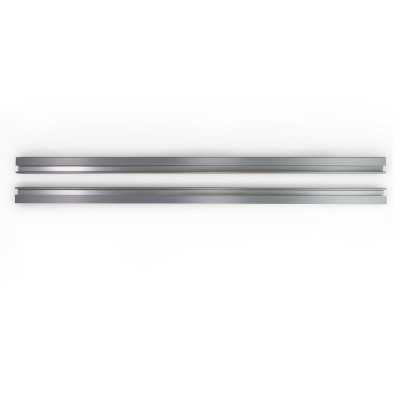

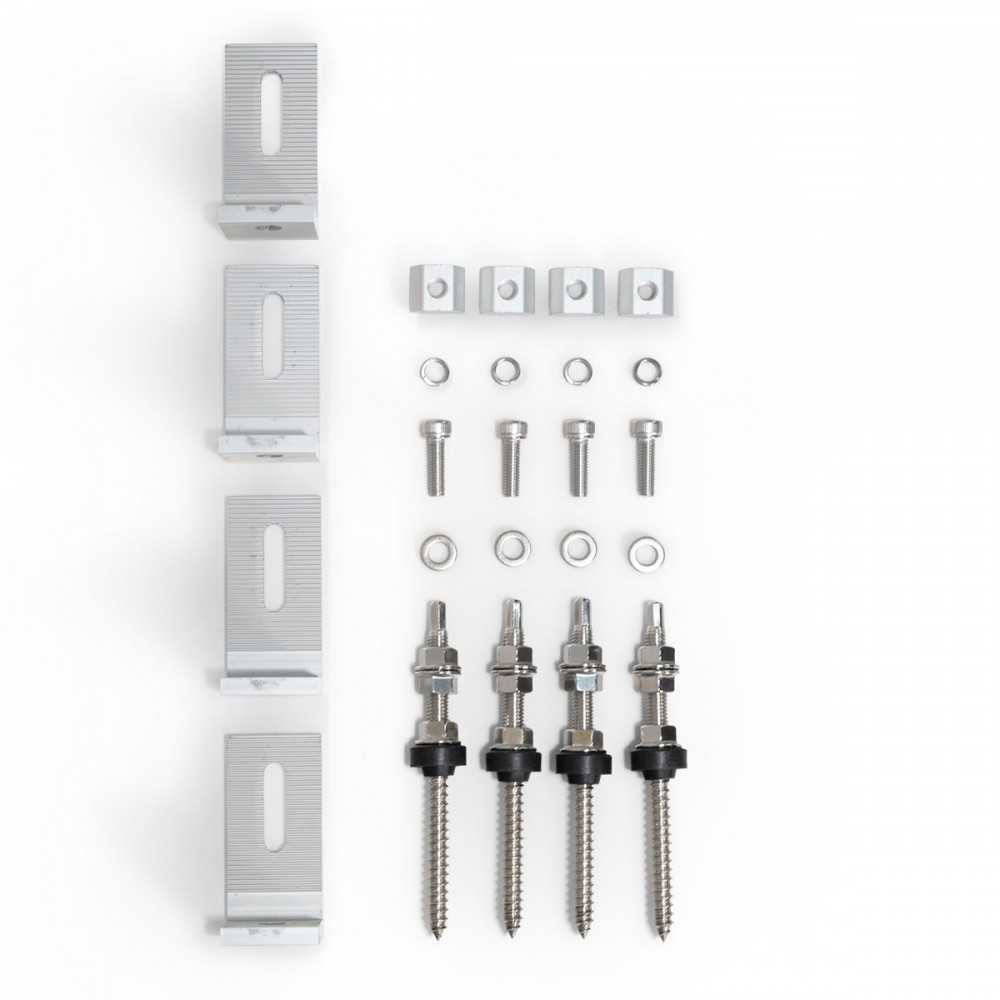

• Set for 1 solar panel includes: 4 hanger bolts, 4 L-angles, 4 end clamps, 4 slot nuts and 2 support rods
• Extension per additional panel contains: 2 hanger bolts, 2 L-angles, 2 bridge clamps, 2 slot nuts, 2 connectors and two support rods

Individual solutions

Do you have more solar panels, or do yours have different dimensions? Then simplycontact us and we will offer you an individual solution.

• area of application: for corrugated iron / corrugated eternit
• area of application: For garden shed
• area of application: For alpine hut / Maiensäss
