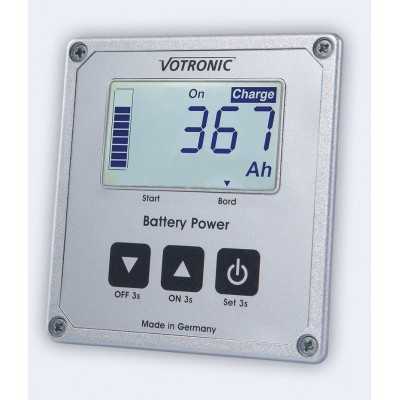

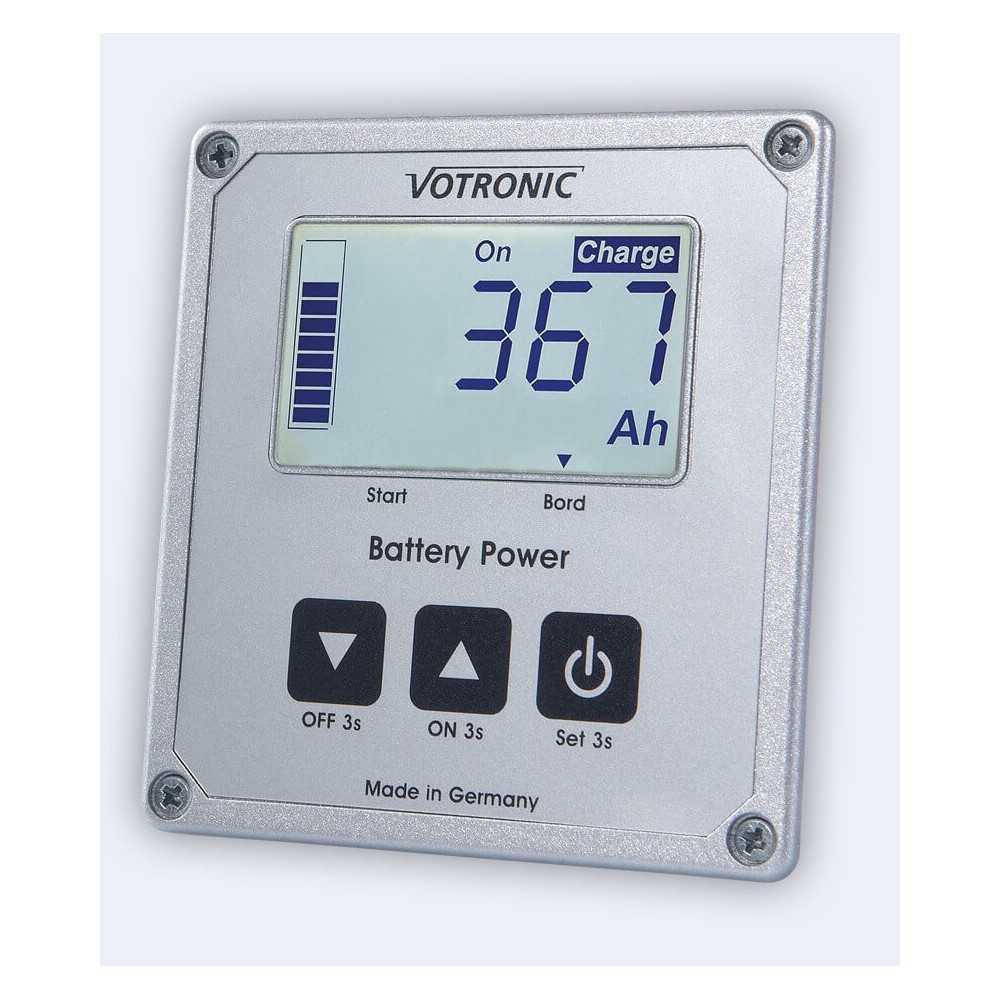

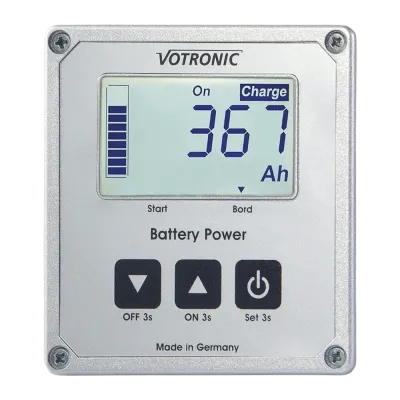

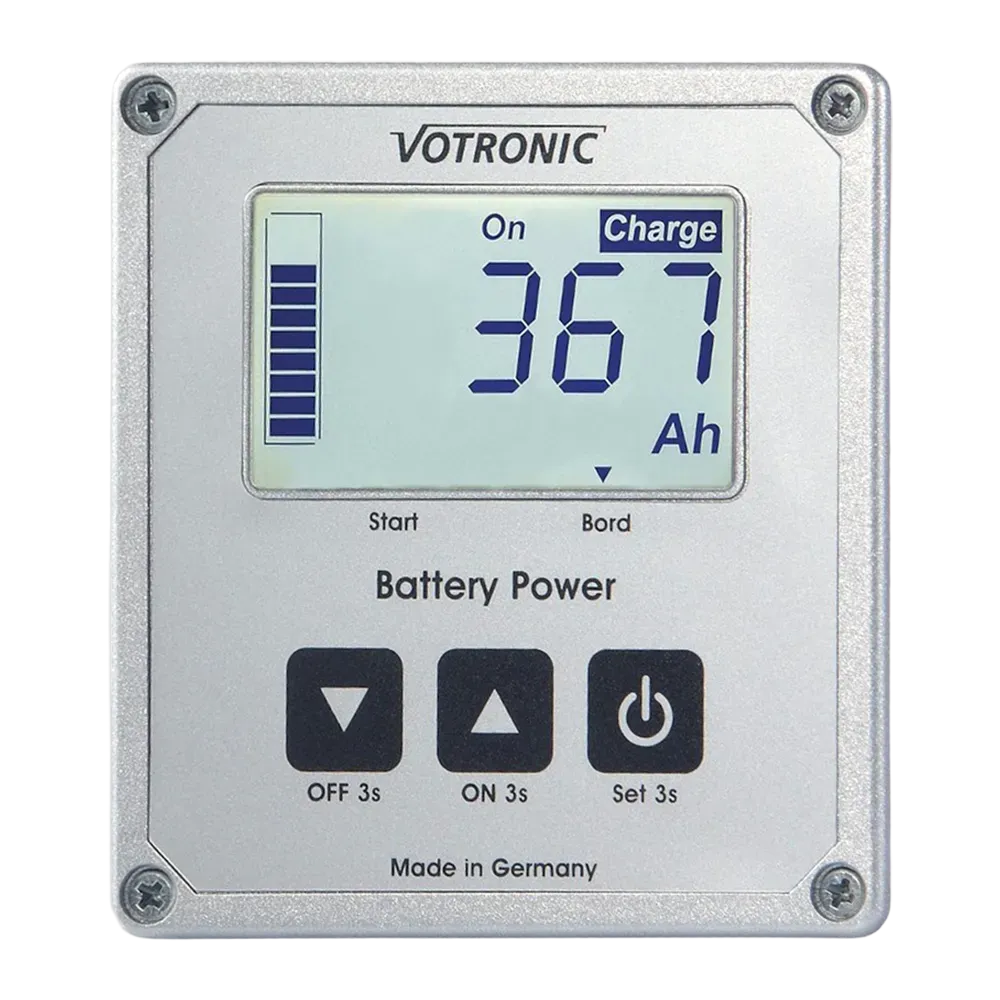

Votronic LCD Battery Computer 400S with Smart Shunt

223.00
    More than 10 pieces in stock.
    Delivered within 24 hours.
    With the Votronic LCD battery computer, you have an overview of the current state of charge of the battery, the battery currents and the voltage level of the battery at the push of a button. read more
    Add to wishlist
    Compare
    Compare Products



    Swiss online shop



    Encrypted payment



    FREE shipping within 24 hours



    Call us: 044 999 01 01

    The following values are displayed:

    • Battery voltage board battery 7 to 32V
    • Battery current (charge/discharge) 0 to max +/- 1800 A
    • Battery capacity (Ah and %)
    • Remaining runtime (h)
    • Battery voltage 2nd battery ( zB starter battery) 7 to 32V
    • Switching output freely programmable and touchable (PNP, plus potential 12V / 24V, max. 0.5A)

    Technical specifications:

    Battery nominal capacity: 100- 2000 Ah

    Shunt current measurement range: 400/600/1800 A
    Duration/15/7 mins

    Weight: 55/245 g
    Display/Shunt

    Dimensions: 80x85x24 mm (WxHxD)
    Installation dimensions: 66x72x22 mm (WxHxD)
    Mass shunt: 135x32x44 mm (WxHxD)

    Produkt-Nummer

    vtc400
