Votronic VCC 1212-30A charging booster - optimal charging for short distances - suitable for lithium batteries

Charging booster, optimal charging Charging booster, optimal charging even over short distances - suitable for lithium batteries

The VOTRONIC charging boosters ensure optimal and fast charging of the supply battery from the alternator while driving. In contrast to the simple isolating relay, the charging voltage is increased to the value that is necessary for full charging for the respective battery type and is required by the battery manufacturers. In this way, the full charging current can flow and charge considerable amounts of current into the battery in a short time. Long charging lines and losses are properly regulated, as are voltage fluctuations on the alternator.

The charging converters thus provide the well-known high quality of the battery charging of the VOTRONIC chargers even while driving. The intelligent microprocessor charging control with IU1oU2 charging characteristics and dynamic charging time calculation automatically ensures fast and gentle full charging and subsequent trickle charging of the connected batteries from any charge state and always enables consumers to be supplied at the same time as the supply battery.

product properties

·         Votronic products "Made in Germany"

·         High charging capacity even over short distances

·         Significantly improved energy balance of the on-board battery

·         Optimum charging characteristics for all battery types can be set using the battery selector switch (lead-acid, gel, AGM, lithium LiFePO4)

·         Suitable for all alternators

·         When the on-board network is heavily loaded, automatic, adjustable power control ensures that the starter battery is charged first by the alternator, thus ensuring that the vehicle can be started again immediately

·         Simple installation, no intervention in the vehicle's starter circuit required, device is connected to the charging line to the supply battery

·         Parallel operation to increase performance possible

·         Particularly recommended for vehicles with the Euro 6 standard

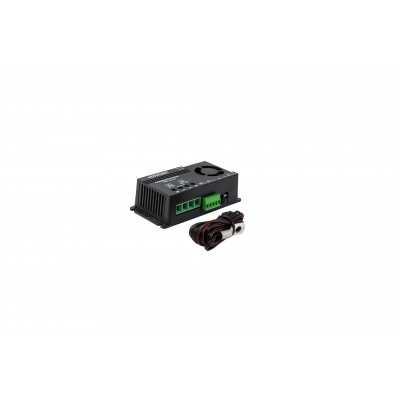

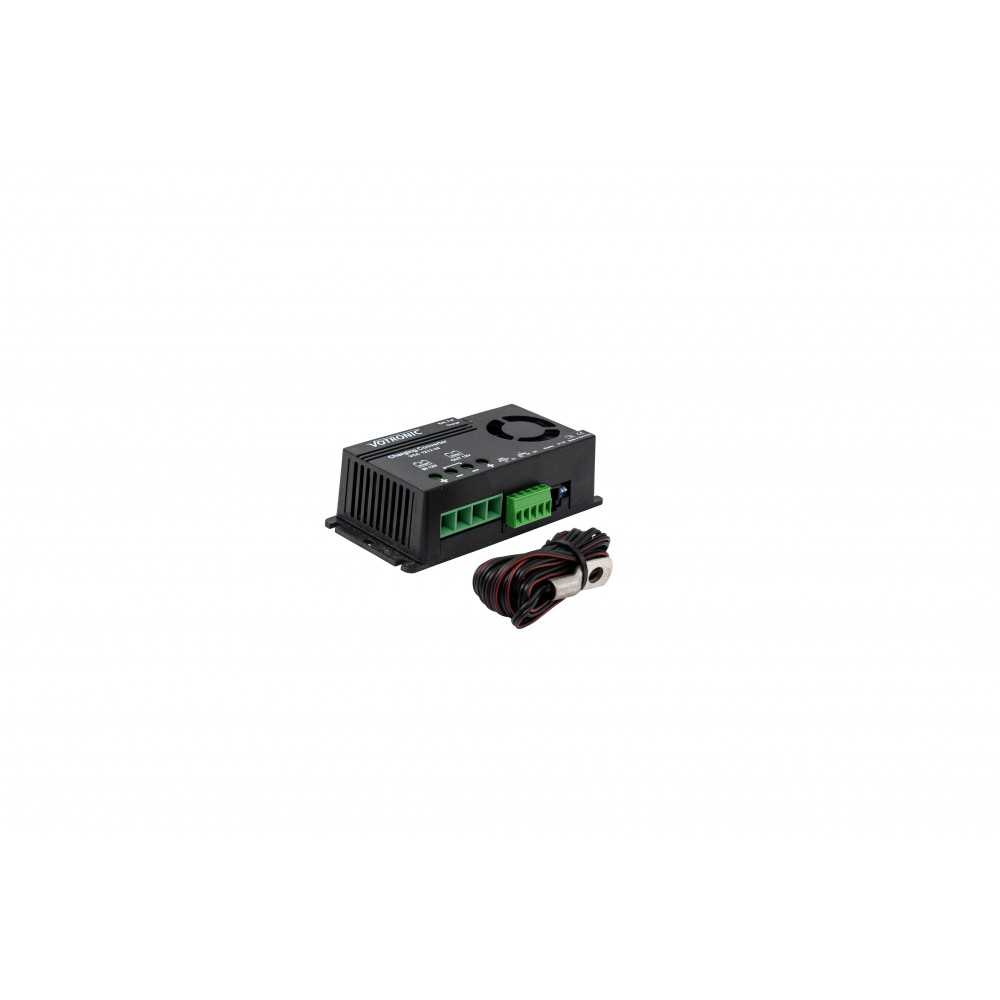

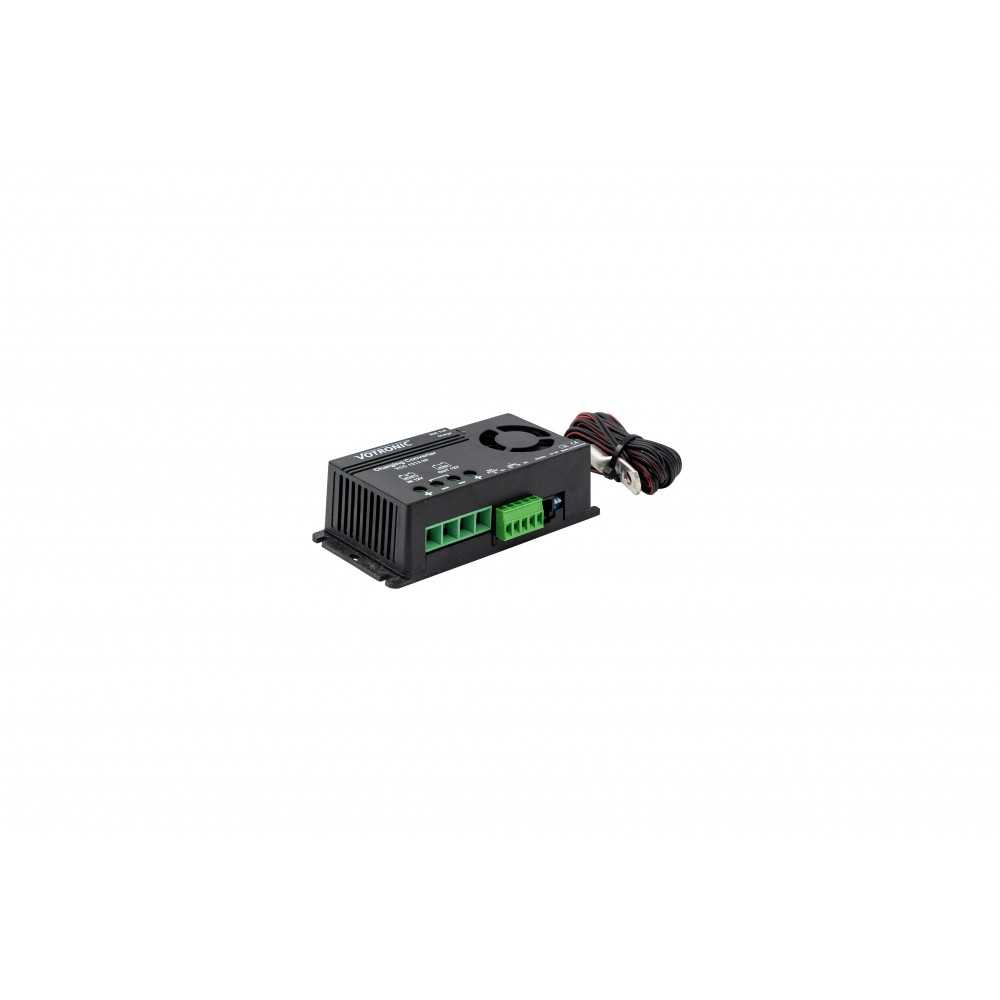

·         Temperature sensor 825 already included in delivery

·         The charging converters are also characterized by their compact design, low weight (high-frequency switching transformer, switch mode technology) and powerfully dimensioned power components. 6 operating displays provide information about the operating status of the device at any time.

Technical specifications:

• area of application: For camper
• area of application: For ship
• battery type: lithium
• battery type: AGM / GEL
• guarantee: 2 year product guarantee
• الوزن: 0.28kg
• Size (length x width x height): 146x67x40mm
