    Balcony power plant in a stylish pinstripe design. Now you can produce your own electricity with your own solar system on your balcony. read more
    Add to wishlist
    Compare
    Compare Products



    Swiss online shop



    Encrypted payment



    FREE shipping within 24 hours



    Call us: 044 999 01 01

    Do you want to produce your own electricity, but you're bothered by the look of solar panels? Then our new 200-watt balcony solar panels are just what you need.

    We designed our balcony solar panels with the idea that they should blend harmoniously into their surroundings and not be perceived as foreign elements. For this reason, we have produced our new balcony line in attractive colors and photorealistic designs .

    With our 200-watt balcony solar panels, discussions about an annoying or unsuitable appearance are a thing of the past.

    We paid close attention to the size of the solar panels. Measuring 107 x 103 cm, the solar panels fit almost all balcony railings.

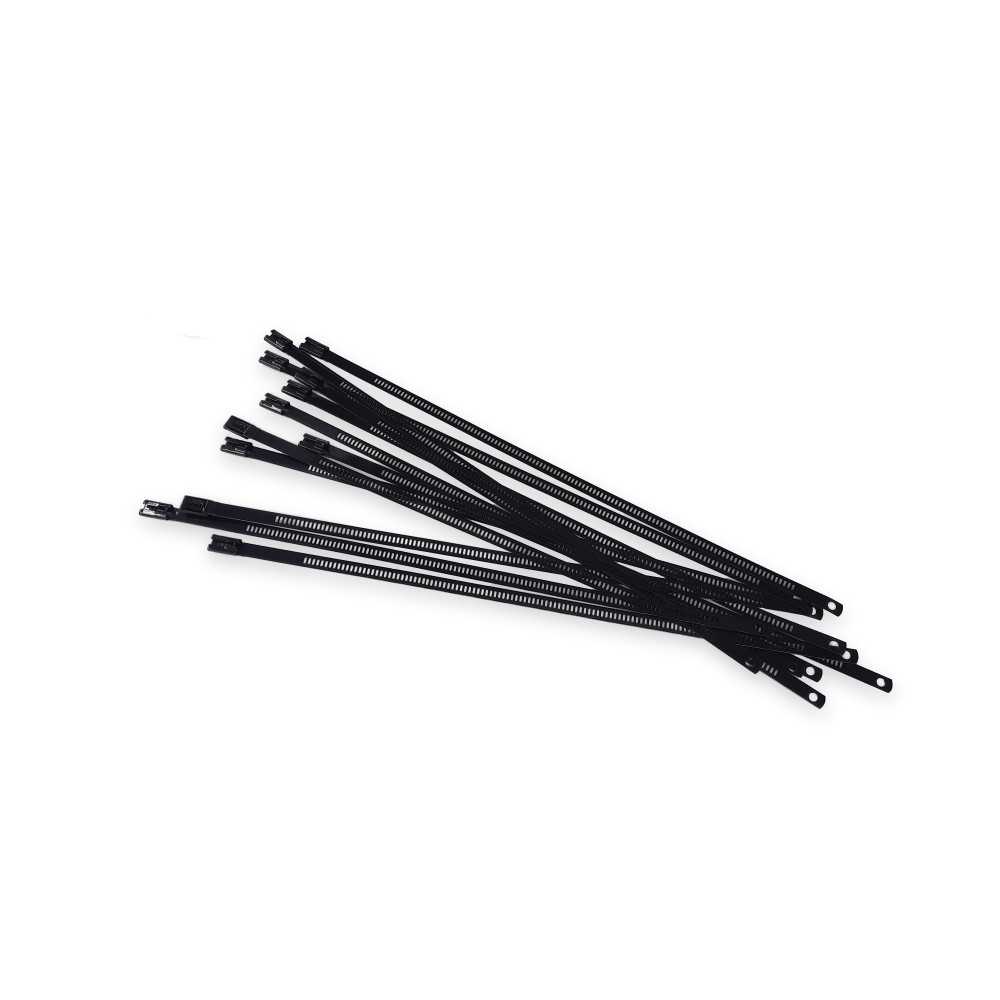

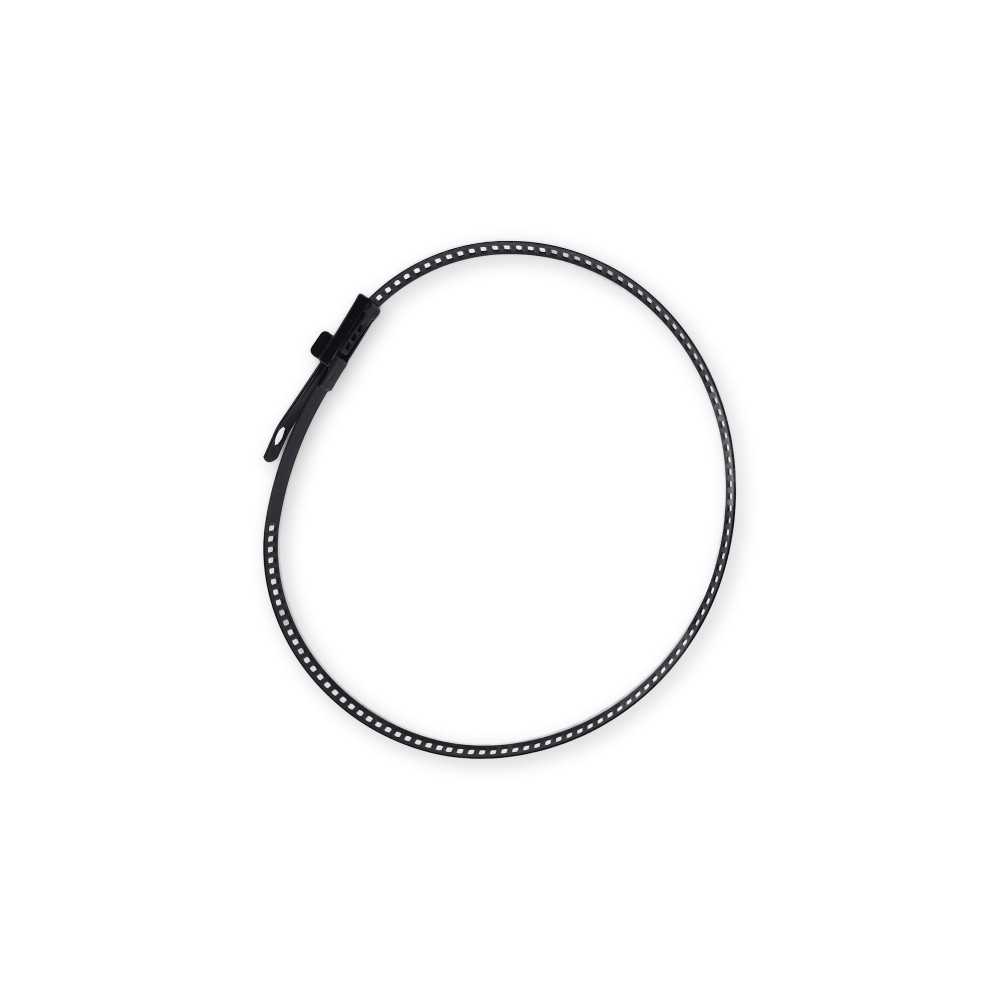

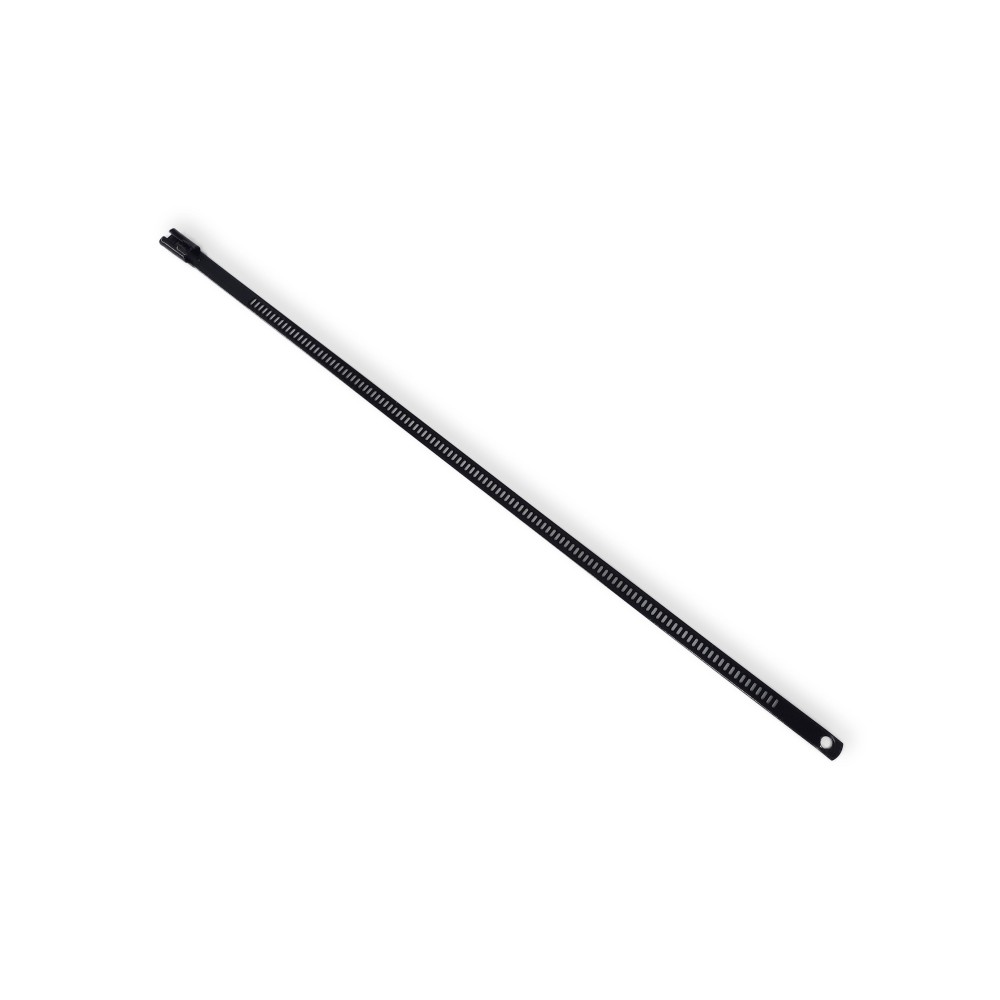

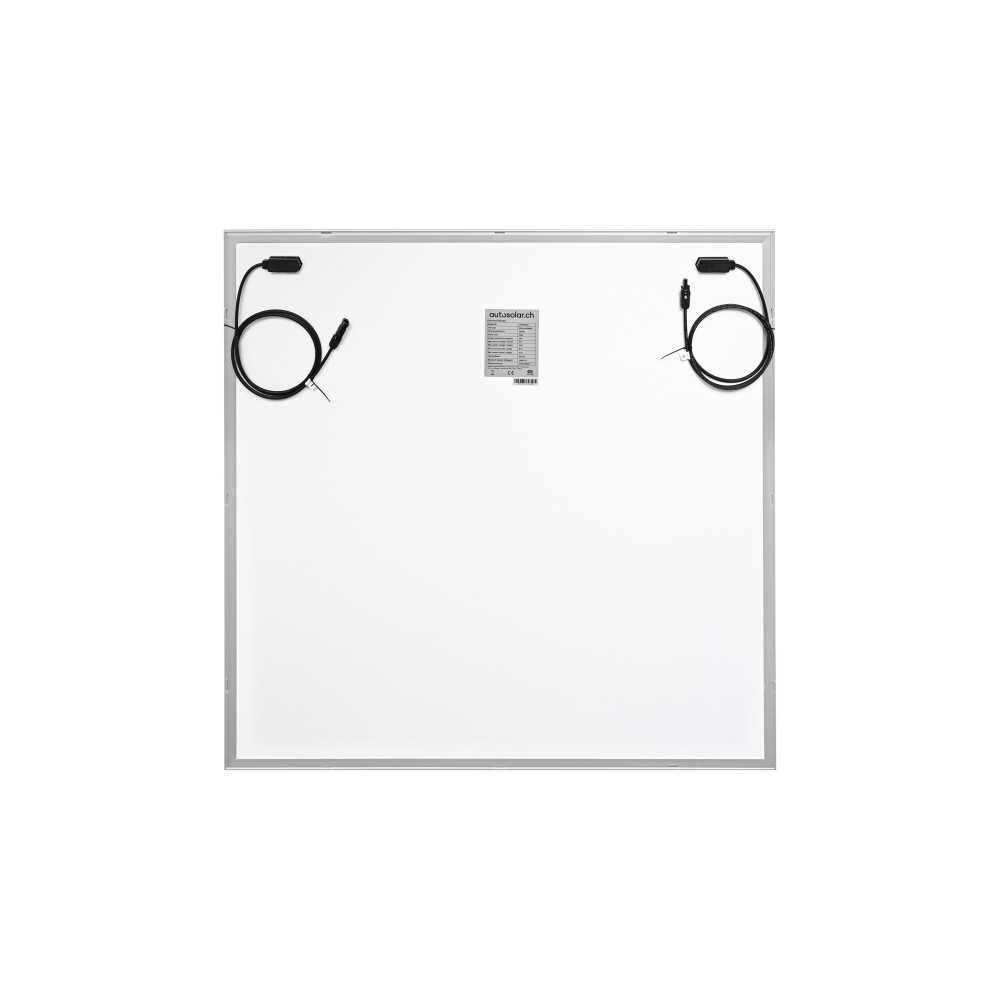

    The solar panels can be easily attached to the balcony railing using the discreet eyelets and the included metal cable ties.

    Our balcony solar panels are only 8 mm thin , making them extremely slim . This means the look of your balcony railing won't be spoiled by bulky panels.

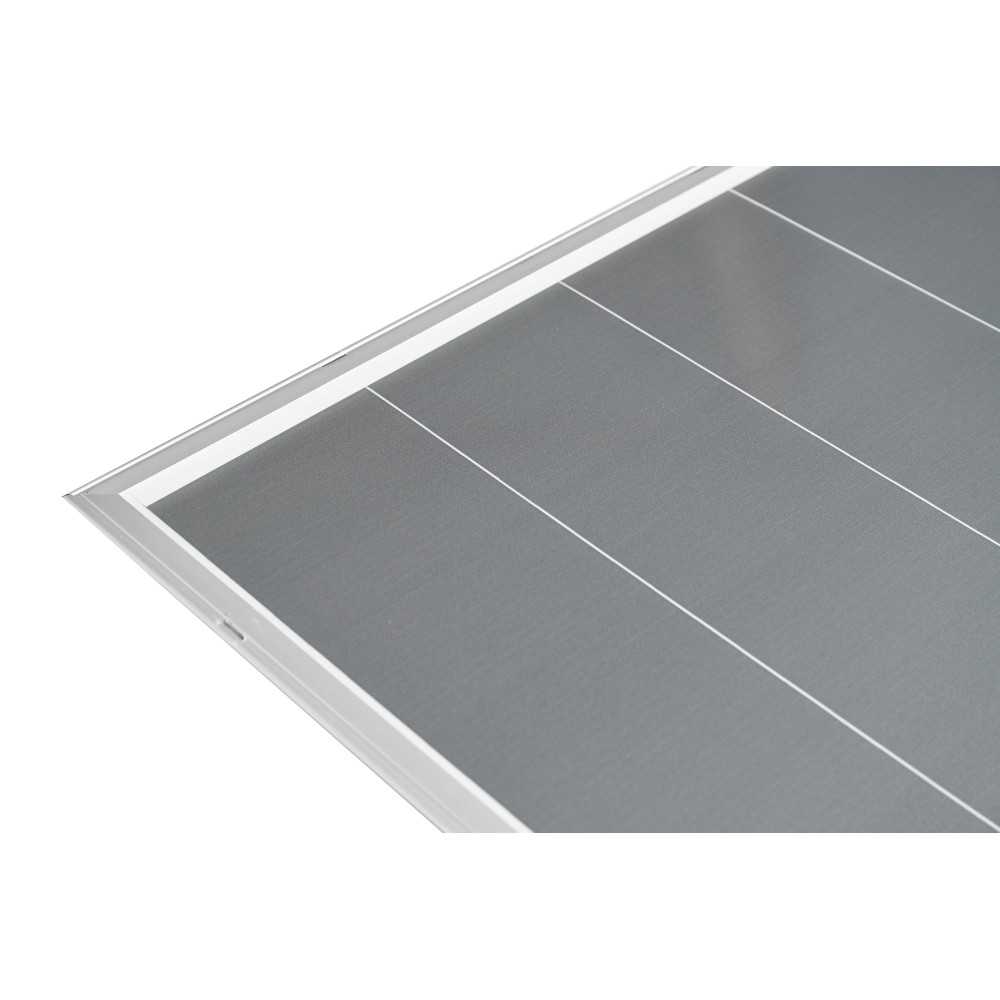

    The 200-watt solar panels are protected from all environmental influences by a robust protective glass . They offer the stability of conventional solar panels, but are as elegant and attractive as flexible plastic solar panels.

    This combination of stability and aesthetics is unique and makes our 200 watt panels so special .

    You currently have too little space on your balcony, but would like to produce more of your own solar power later?

    We've thought of that too. Our balcony power plant can be expanded with additional modules at any time . This means you can start with a smaller set now and increase the output later with more solar panels.

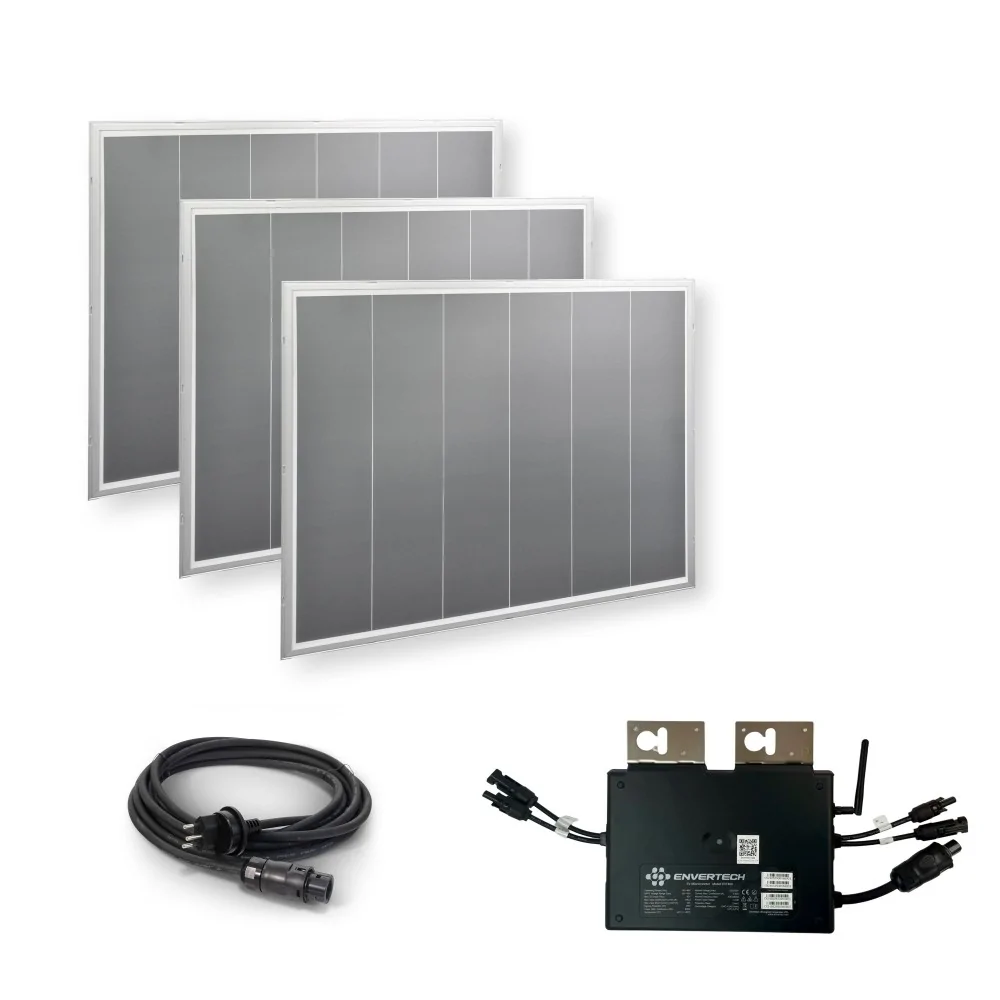

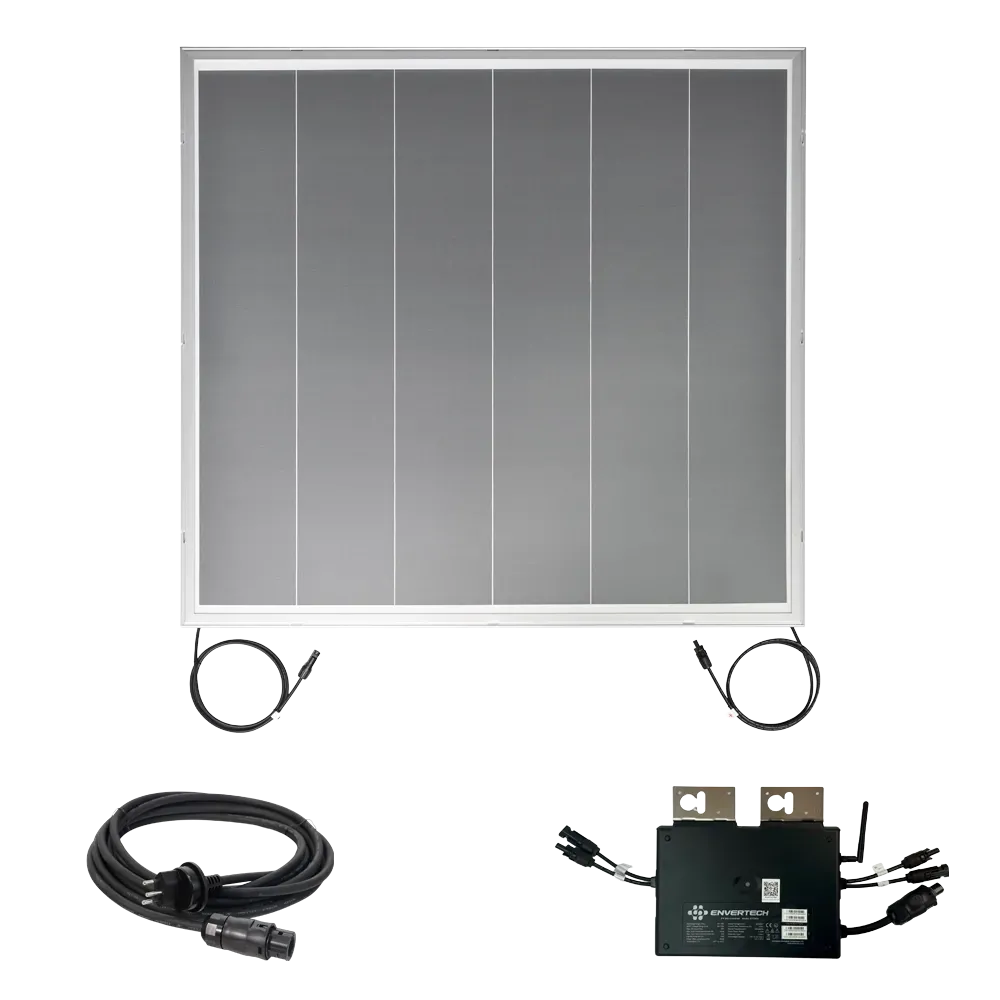

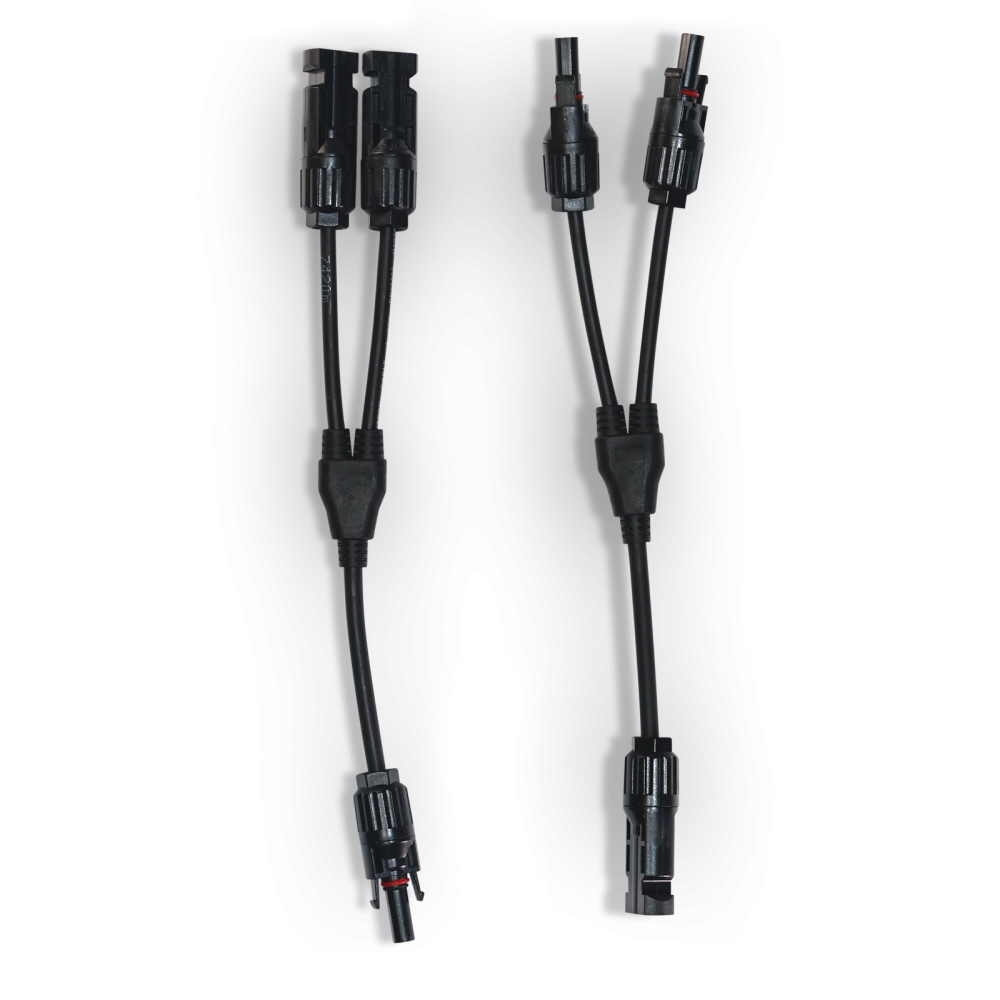

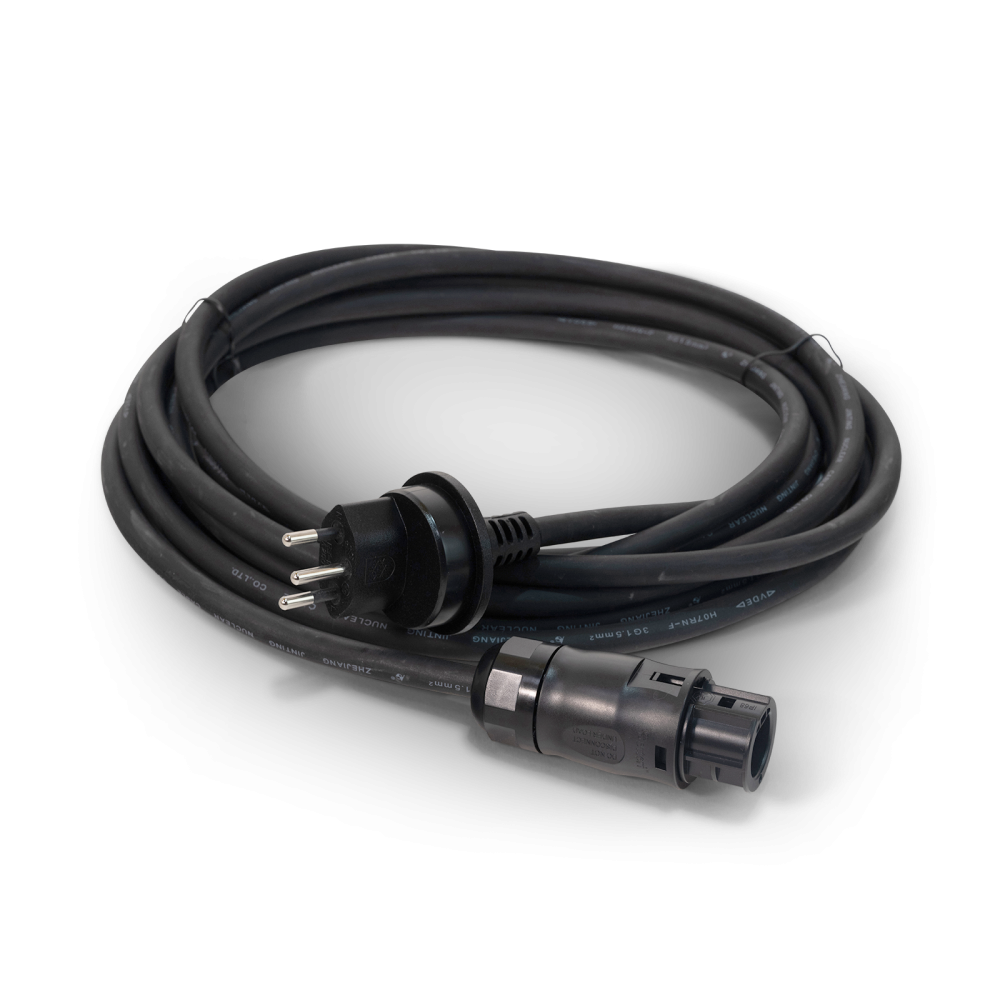

    Each of our sets includes everything you need to get started. This includes the solar panels, inverter, 230-volt connection cable (IP55), metal cable ties, and the necessary adapters and extension cables.

    Should you still require longer cables for your personal installation, you can find our pre-assembled cables here to enable you to set up the panels in your desired location.

    Solution for tenants

    You would like to produce your own solar power, but you're not sure what you need to consider?

    The following applies: For anything mounted outside the rented property (specifically: outside the balcony railing or the facade), tenants need the landlord's consent. This is because the landlord (and not the tenant) could be held liable for any damage caused by a falling solar panel. This has often resulted in tenants not receiving permission and thus not being able to benefit from balcony solar installations.

    Landlords can grant permission on the condition that the panels are professionally installed and that the tenants assume liability for any damages. A sample agreement was drawn up for this purpose in cooperation with Casafair and the Tenants' Association. (Source: topten.ch)

    You can find the sample agreement here.

    We're keeping our fingers crossed that you'll soon be able to produce your own solar power and do some good.

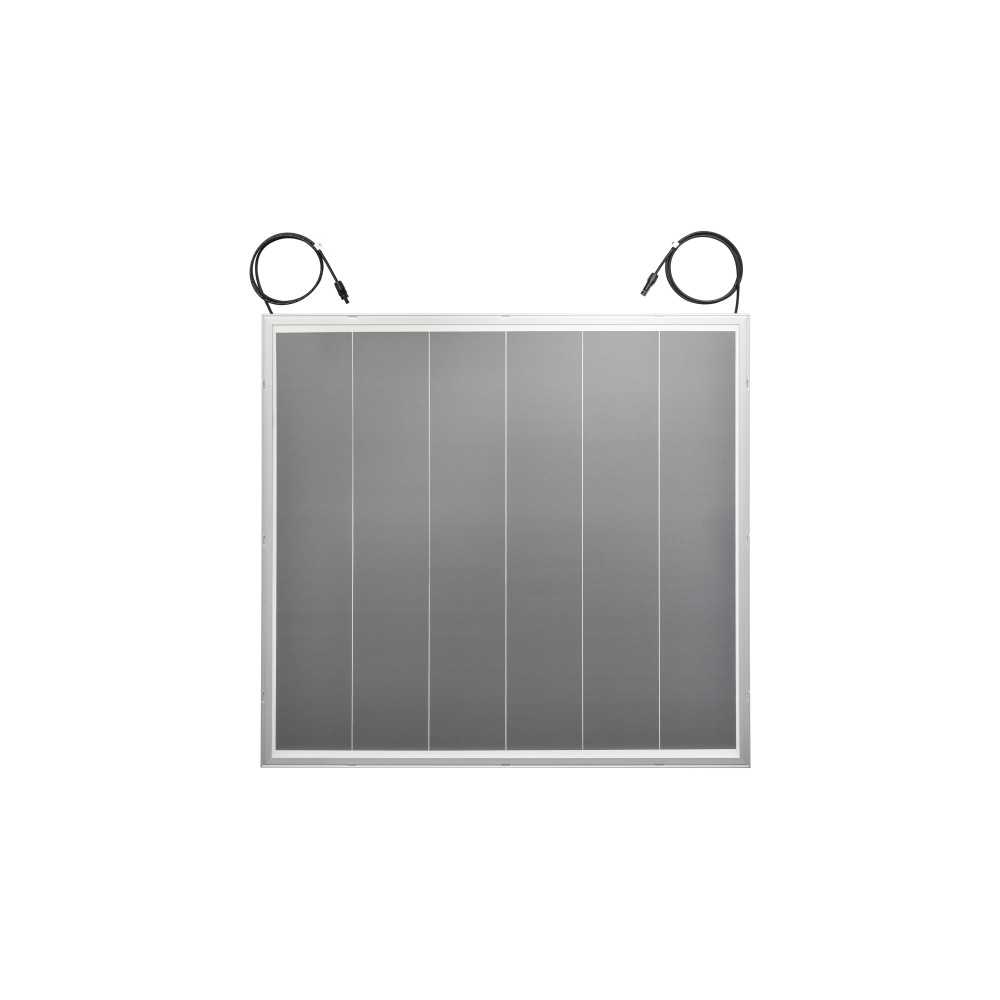

    Technical data solar panel

    Length: 1070 mm
    Width: 1030 mm
    Height: 8 mm
    Weight: 10.7 kg
    Maximum power: 200 watts peak
    Open circuit voltage (Voc): 41.1 volts
    Short-circuit current (Isc): 6.10 A

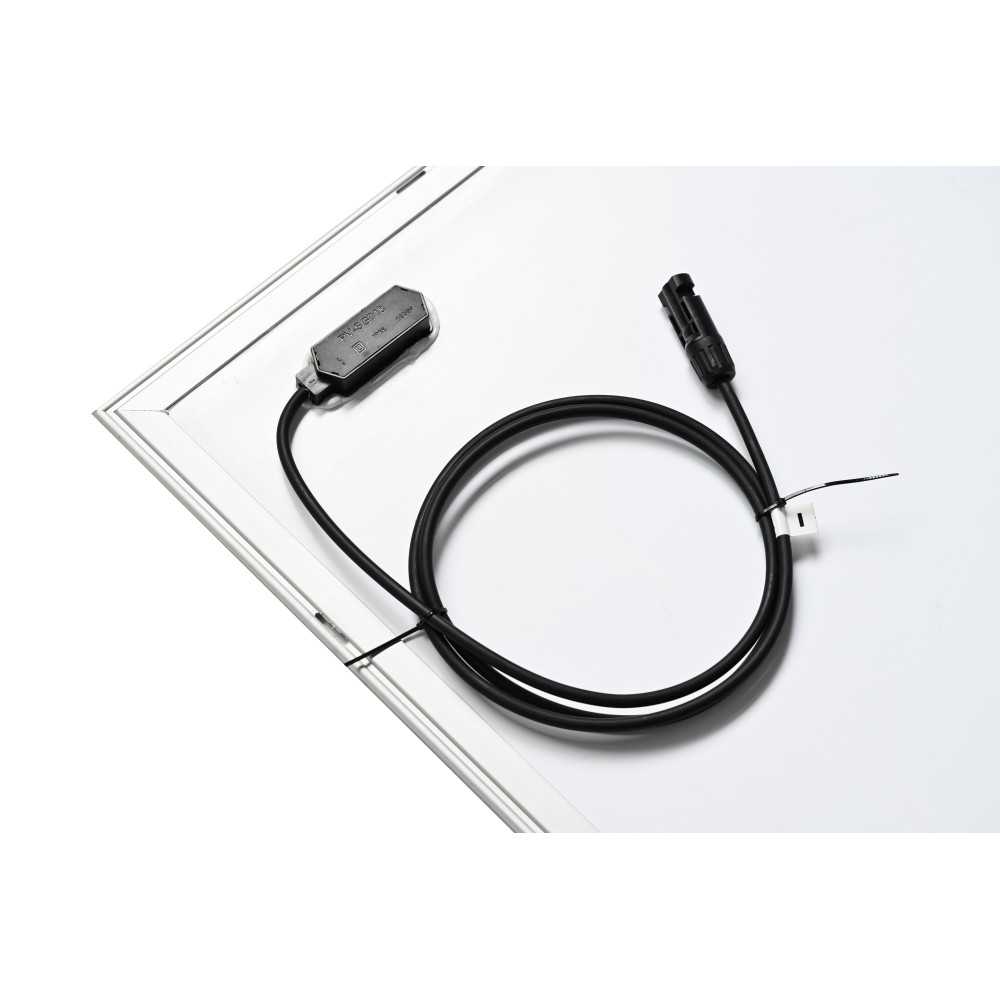

    Length of connection cables: 150 cm
    Permeability of the print 90 - 92%

    Technical specifications 300 Watt inverter

    MPPT voltage range: 22 - 60 volts
    Maximum input voltage: 60 volts
    Maximum input current: 15 A
    Output voltage: 230 V
    Output power: 300 watts
    Weight: 0.82 kg
    Temperature range: -20°C to 50°C
    Dimensions (W x H x D): 165 x 176 x 38 mm

    Technical specifications 600 Watt inverter

    MPPT voltage range (per input): 25 - 55 volts
    Maximum input voltage (per input): 60 volts
    Maximum input current (per input): 13 A
    Output voltage: 230 volts
    Output current: 2.6 A
    Output power: 600 watts
    Output frequency: 50 / 60 Hz
    Temperature range: -40°C to 65°C
    Protection certification: IP67
    Dimensions (W x H x D): 270 x 230 x 46 mm
    Weight: 3.05 kg

    Produkt-Nummer

    setb600-w

    length

    1070 mm

    Width

    1030 mm

    Height

    8 mm

    Weight

    10.7 kg

    required area

    3.32 m2

    Solar module type

    Monocrystalline with aluminum frame

    Short-circuit current (Isc)

    6.1 A

    Open circuit voltage (Voc)

    41.1 volts

    Maximum power (Pmax)

    200 watts

    Solar system type

    Balcony power plant

    Plug type

    MC4

    AC plug type

    Swiss 3-pin plug IP55

      Kann man die Solarmodule auch mit Befestigungsteile, für eine spätere Demontage, montieren?

      Ja, die Montageteile (Ecken) können geklebt werden, daran das Solarmodul geschraubt. So würde eine Demontage möglich sein


      Bietet AutoSolar auch die Montage der Solaranlage an?

      Ja, wir haben eine Werkstatt bei uns im Haus in Oetwil am See. Man muss da einen Termin abmachen. Die Montage dauert je nach Fahrzeug und Einbaukomplexität zwischen einem halben und ganzen Tag.


      Kann ich die Solaranlage selber installieren?

      Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.


      Wie teuer ist die Montage bei einer Garage machen zu lassen?

      Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.


      Wie viel Ertrag hat die Solaranlage im Winter?

      Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
