Lightweight, compact and portable

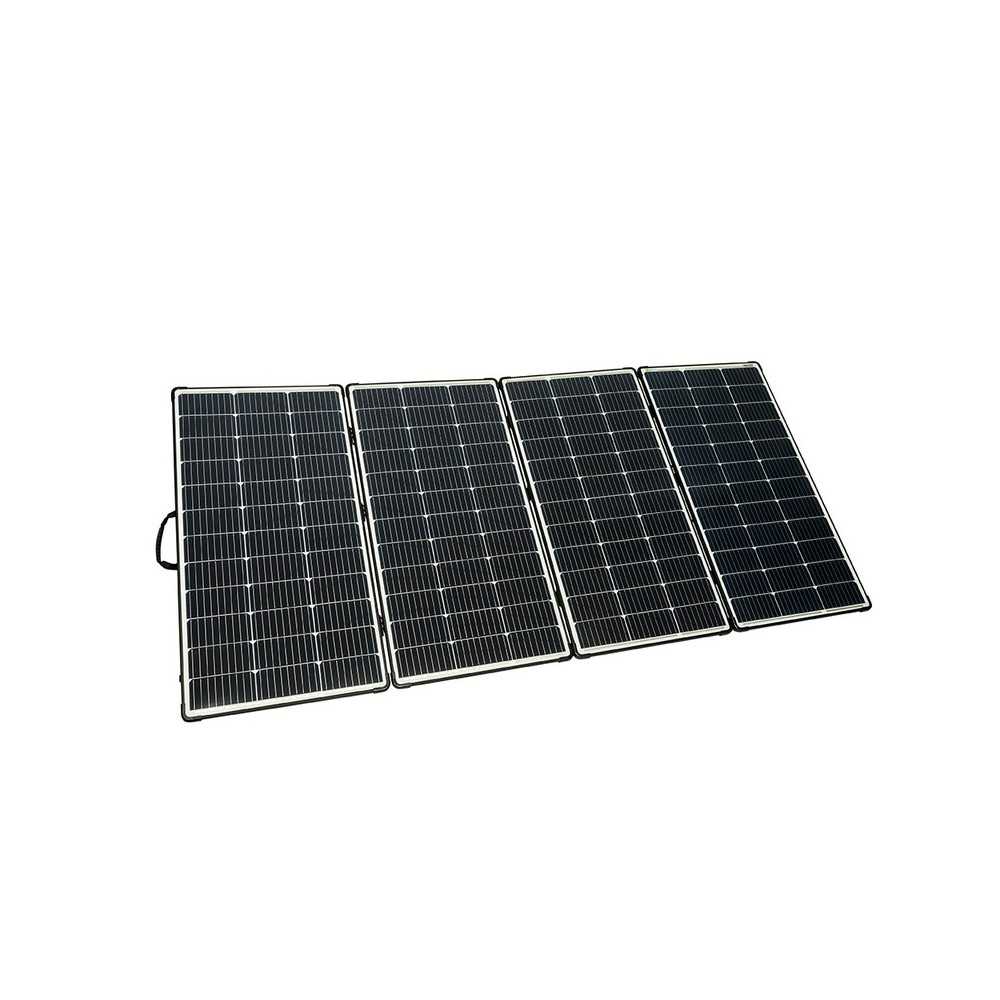

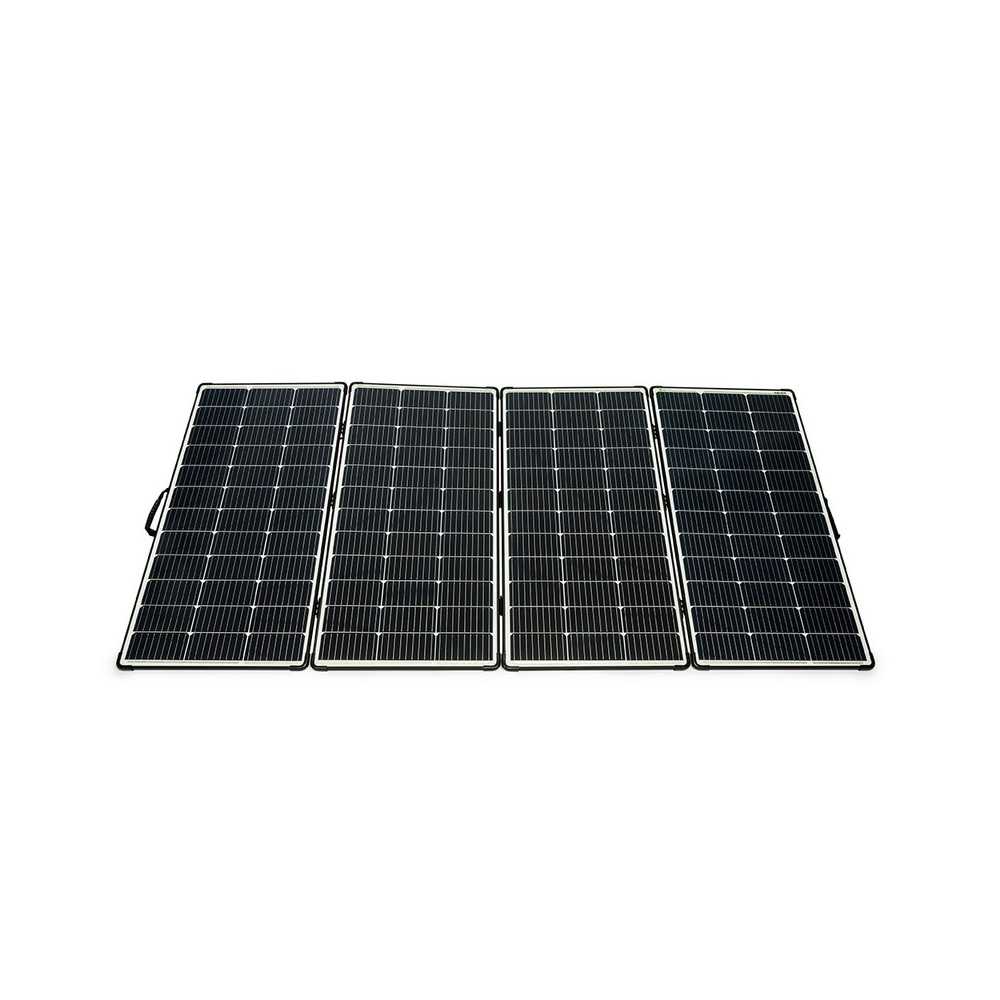

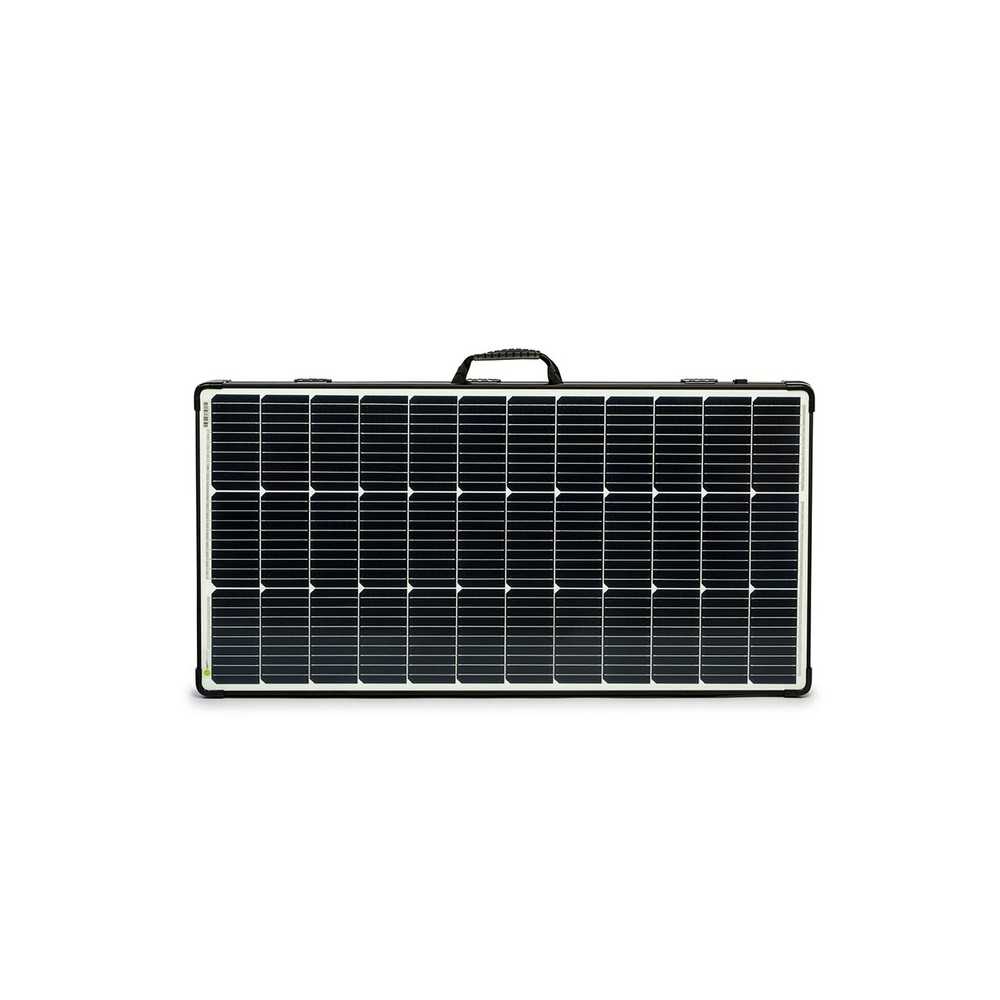

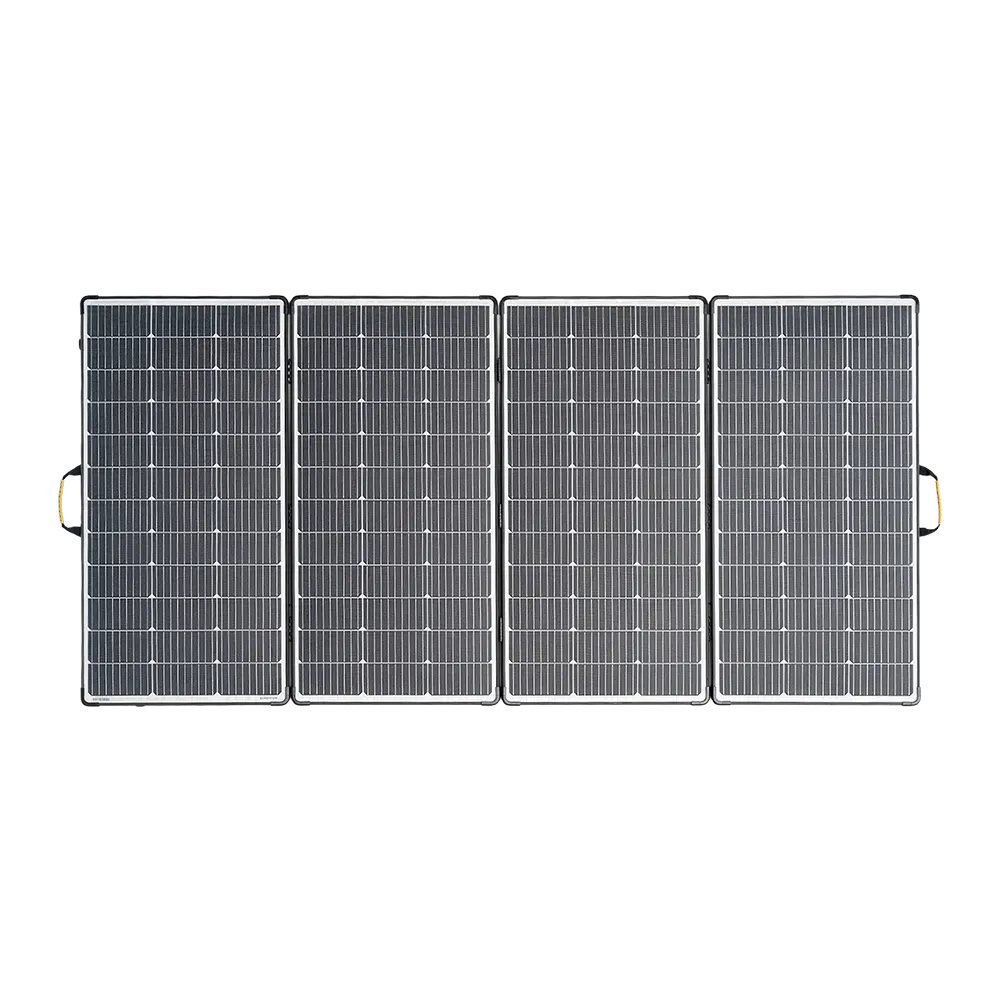

The AutoSolar 440 Watt solar suitcase combines powerful performance with a compact, portable design. It's the ideal travel companion for campers who don't want permanently installed solar panels on their vehicle but still want the convenience of fast and reliable solar charging. It also offers a flexible, ready-to-use solution for occasional campers.
At the same time, it's the perfect complement to existing solar systems on the vehicle. The solar suitcase really shines on hot days when the camper is intentionally parked in the shade: the vehicle stays pleasantly cool, while the solar suitcase is simply positioned in the sun and the battery is efficiently charged with solar power.
Flexible in its application and versatile in its combinations
As a set with a charge controller, the 440-watt solar suitcase can directly supply the battery in a camper or motorhome with solar energy. Alternatively, it is also available without a charge controller and equipped with MC4 connectors, allowing it to be connected directly to solar generators such as a Bluetti AC200 MAX. This makes it easy to charge a power station with clean solar energy.

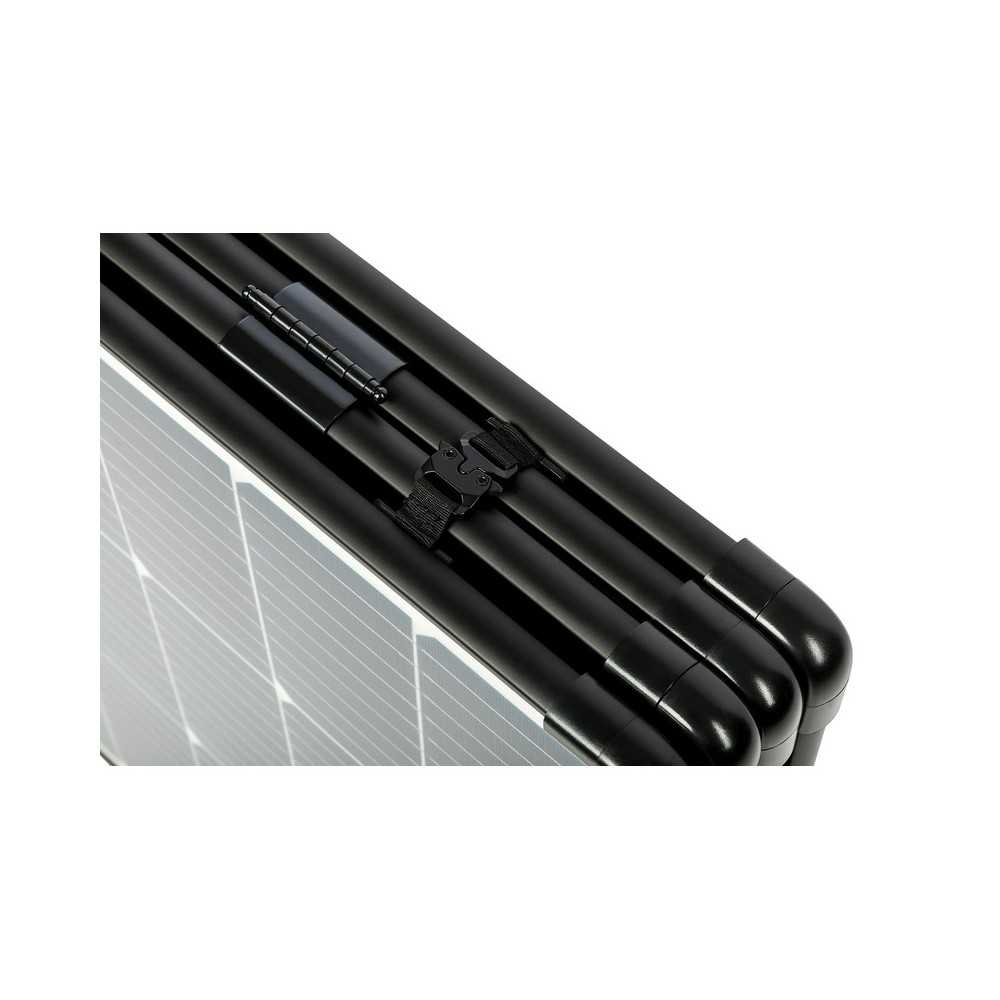

Robust construction for demanding conditions

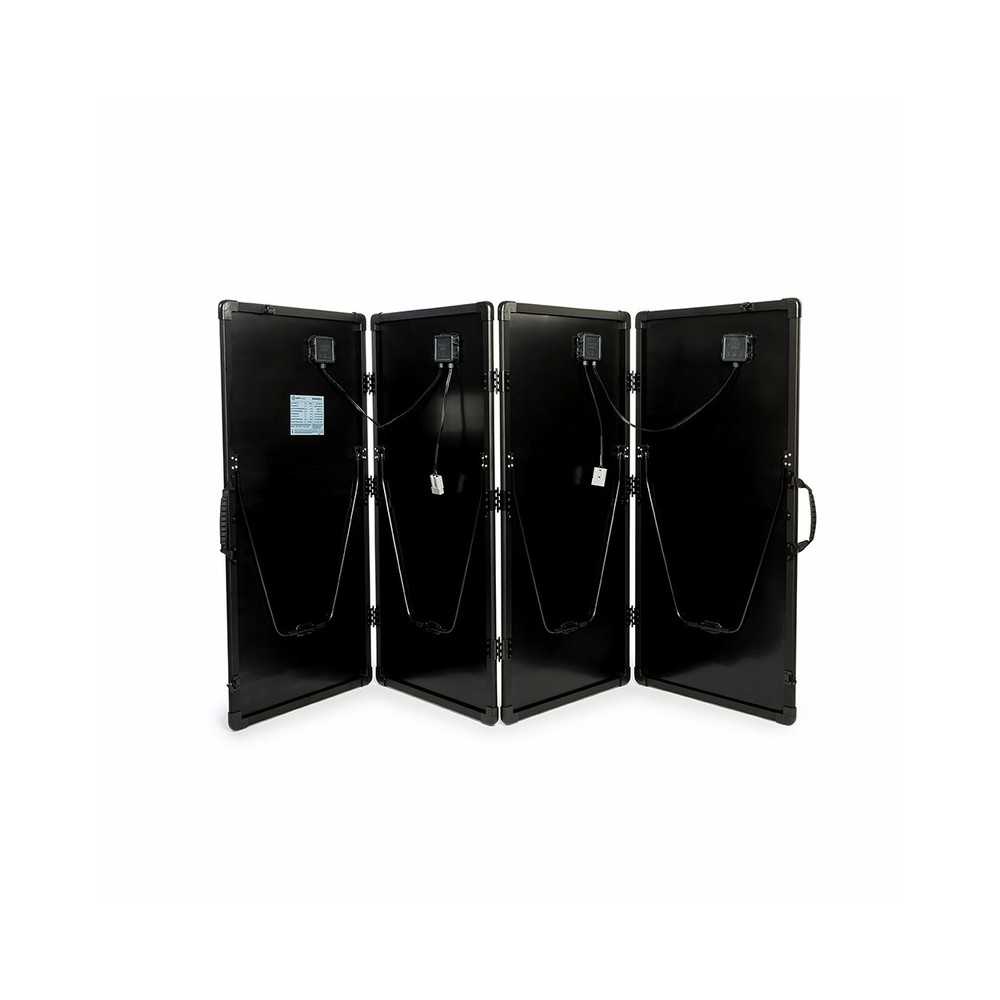

Off-road vehicles often offer limited mounting space for permanently installed solar panels. Thanks to its robust construction, the AutoSolar 440 Watt solar suitcase is ideally suited for use even under demanding conditions. With its integrated feet, it can be set up freestanding and easily adjusted to follow the sun's path – for maximum energy yield with minimal effort.
Technical data
Power: 440 watts
Short-circuit current (Isc): 12 A
Open-circuit voltage (Uoc): 48 V
Maximum voltage (Umax): 40 V
Maximum current (Imax): 11 A
Dimensions when closed (L x W x H): 1070 mm x 540 mm x 90 mm
Dimensions open (L x W x H): 2185 mm x 1070 mm x 20 mm
Weight: 13.46 kg
Connection cable: 5 m
Produkt-Nummer
fs440wmc4
Size (length x width x height)
2185mm x 1070mm x 20mm
Weight
13.46 kg
Short-circuit current (Isc)
12 A
Open circuit voltage (Voc)
48 V
Maximum power (Pmax)
440 watts
Length of connection cable
5 m
Bei 150W kann man ca. 600-700Wh pro Tag produzieren.
Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Wir empfehlen, dass Sie nur Solarmodule derselben Grösse zusammen mit einem Regler betreiben, da es sonst zu Verlusten bei den grösseren Modulen kommt.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
Bei unterschiedlicher Ausrichtung sollten die Solarmodule parallel zusammengeschlossen werden. Damit bei Abschattung nicht beide Solarmodule an Leistung verlieren.
Durch die Verschattung produziert die Solaranlage weniger Energie. Bei Standorten, bei dem ein Modul verschattet werden kann, sollten die Solarmodule parallel zusammengeschlossen werden.
Bei der Serienschaltung erhöht sich die Spannung der Solaranlage. Dies hat den Vorteil, dass auch bei schlechtem Wetter genügend Spannung vorhanden ist, damit der Laderegler optimal arbeiten kann. Serienschaltung kann nur mit einem MPPT-Laderegler gemacht werden.
Ja die Solarkoffer können entweder parallel oder seriell zusammengeschlossen werden. Dafür wir ein stärkerer Laderegler benötigt.
Ja, das ist kein Problem. Sie können beide Anlagen gleichzeitig an der Batterie anschliessen. Die Laderegler der Solaranlage und des Solarkoffers überwachen den Batteriezustand und schalten bei vollgeladener Batterie ab.
Der Solarkoffer flex 120W kann hinter der Windschutzscheibe platziert werden. Die Leistung wird etwas durch den UV-Schutz in der Scheibe reduziert.
Ja. Nach 10 Jahren haben Sie noch 90% der Leistung garantiert.
Das Panel sollte mindestens 10 Jahre halten. Die grösste Belastung sind die mechanischen durch Aus-/Einpacken, Steinschläge, Wind etc.
