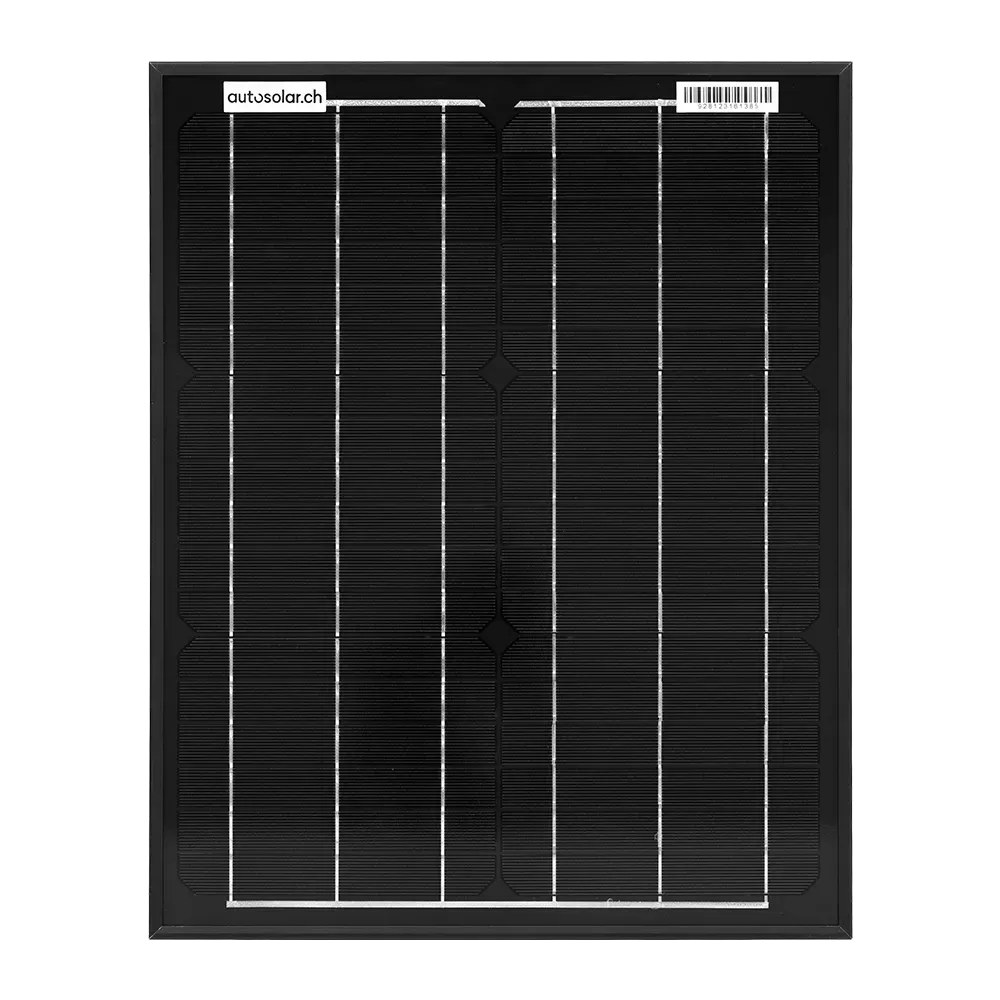

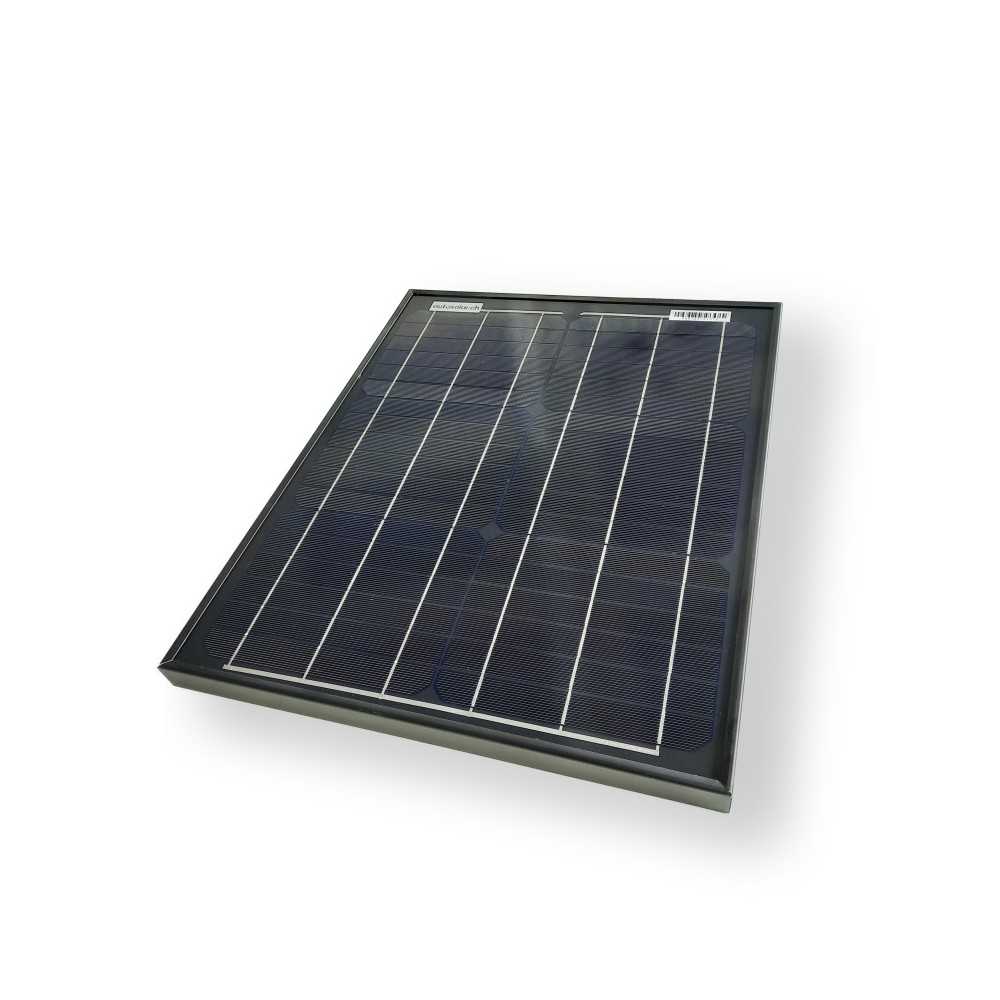

20 Watt solar panel all-black

Our 20-watt solar panel is ideal for small-scale applications where power is needed in a compact format. Its robust construction with an aluminum frame makes it versatile. For example, it can be used for simple garden lighting, etc. Our 20-watt solar panel comes in an elegant all-black finish.

Well protected

The modules are manufactured on precision machines and equipped with anodized aluminum frames and hail-resistant safety glass.

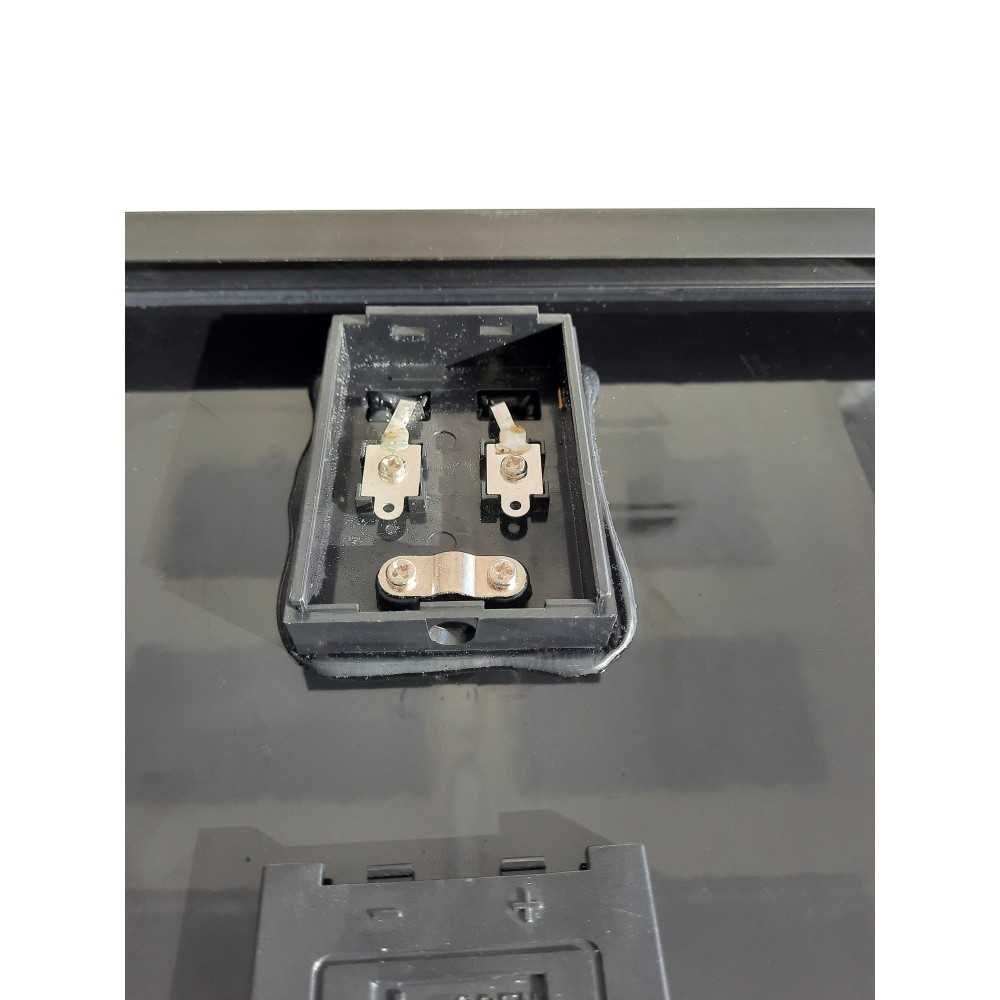

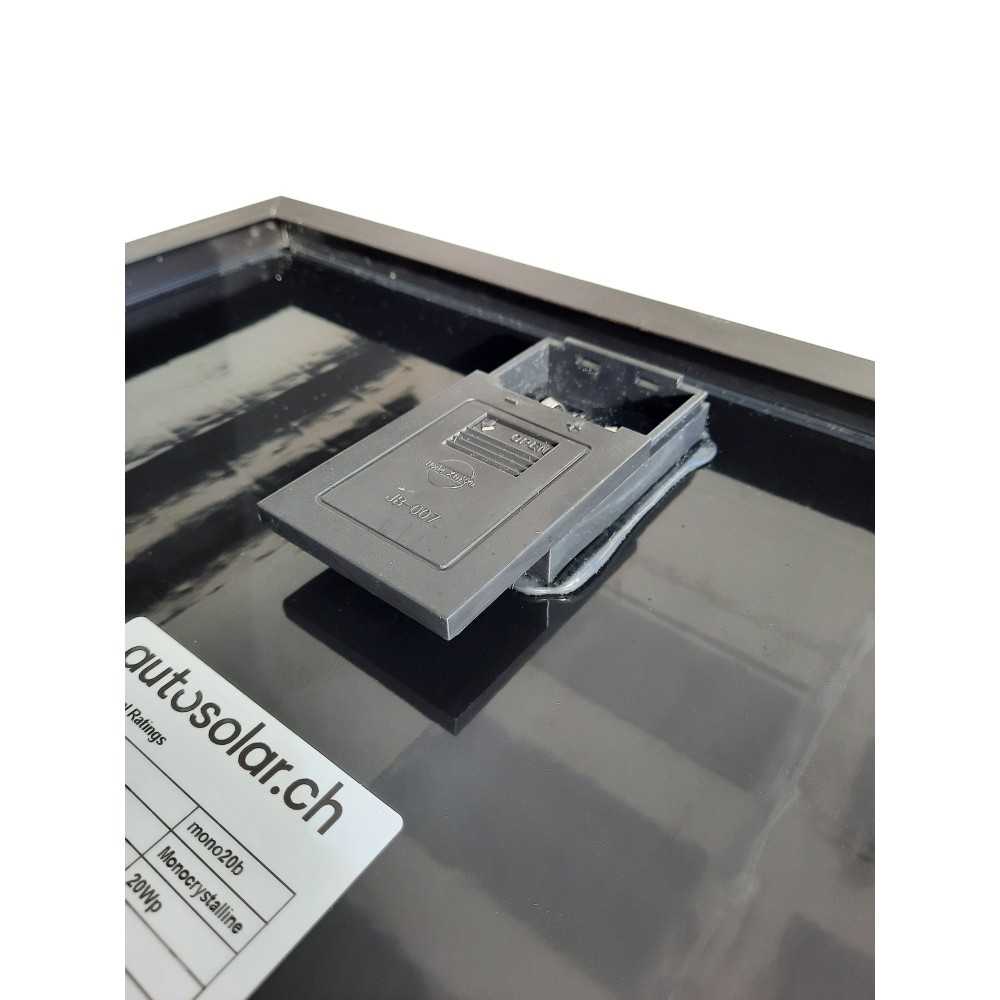

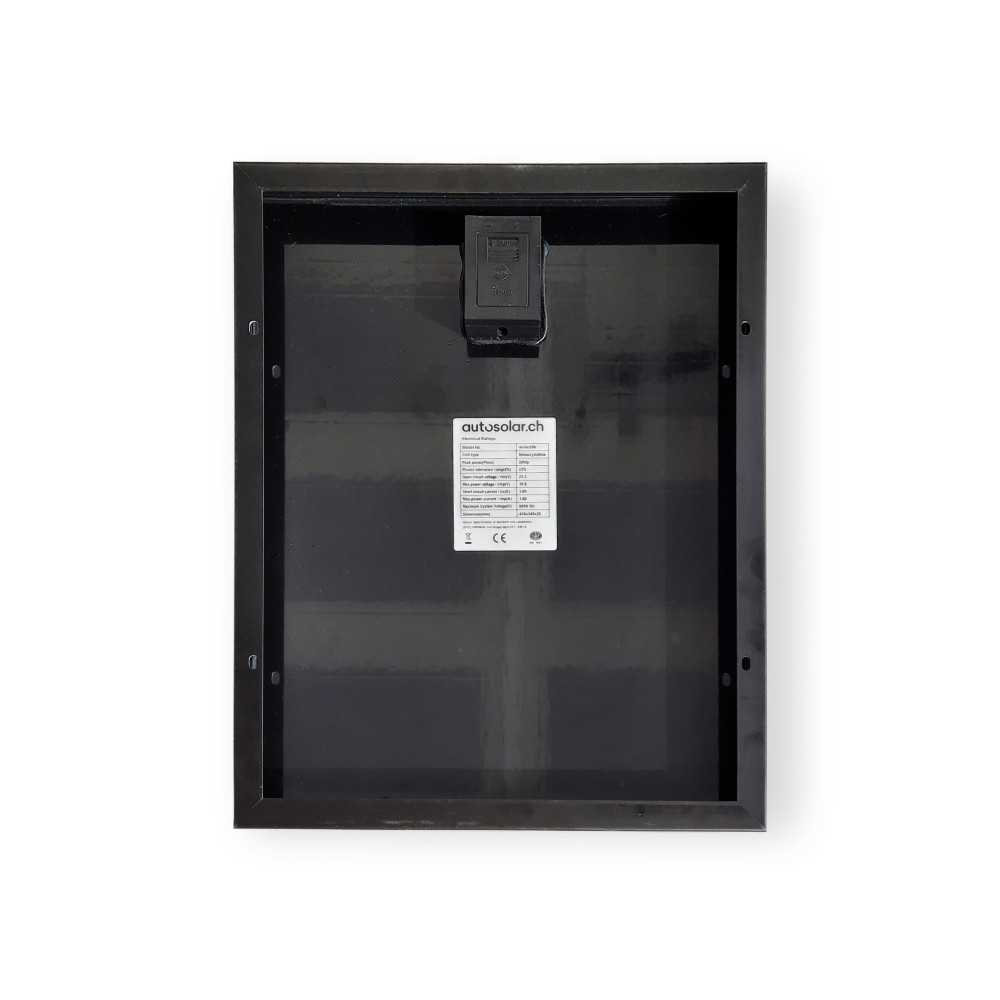

On the back is the waterproof IP65 junction box in which the long connection cables are attached.

Quality

We manufacture our compact solar panels to the same quality standards as the larger models.
All our solar panels are manufactured on precision machines according to our specifications and use high-quality solar cells from a renowned manufacturer.

Assembly

The AutoSolar 20 Watt solar panel can be glued directly to the roof using our mounting corners and Sika554 , or screwed to the wall using our Z-brackets .

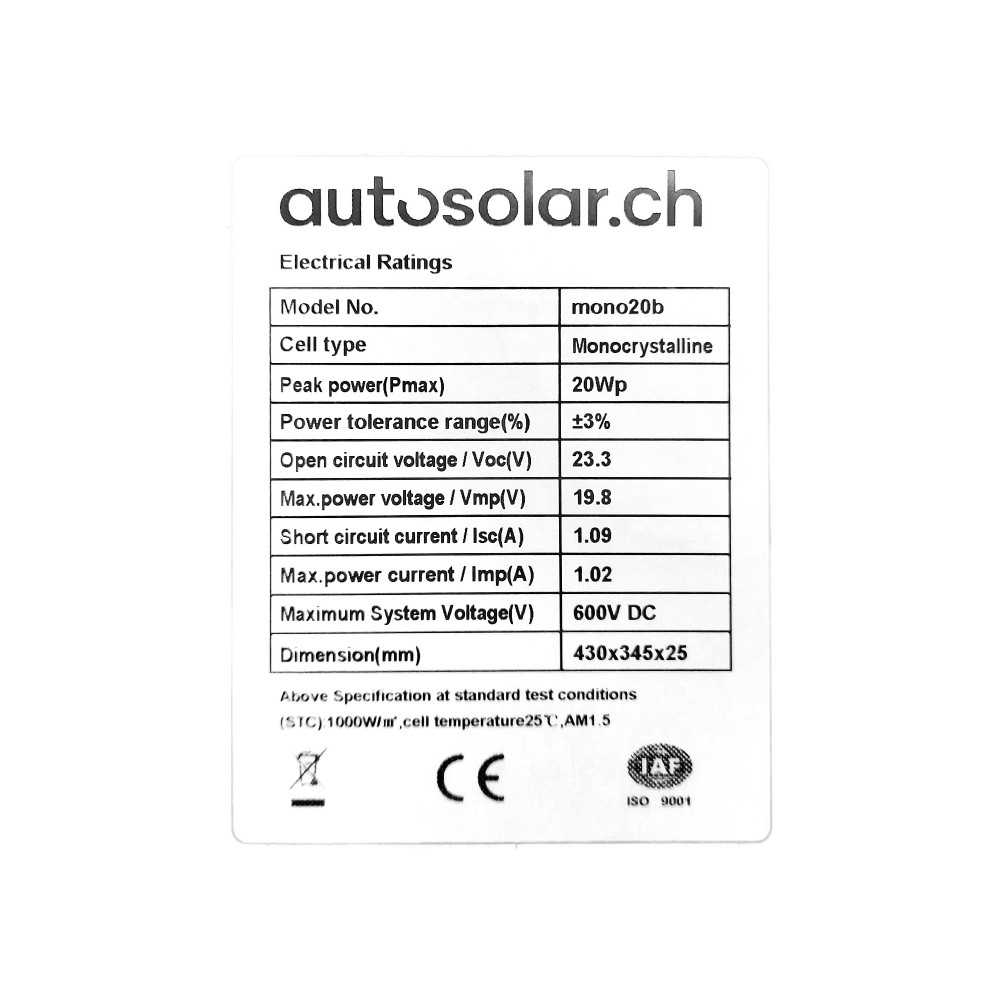

Technical data

Peak power (+/-3%) 20 W

Open circuit voltage (Voc) 23.3 V

Maximum voltage (Vmp) 19.8 V

Short-circuit current (Isc) 1.09 A

maximum current (Imp) 1.02 A

Maximum system voltage 600 VDC

Size 430 x 345 x 25 mm

Weight 1.7 kg

Connection box IP 65 certified

AutoSolar recommends

You are looking for a stable, affordable and high-quality solar panel for your camper, alpine hut or boat.
You can implement your solar project with a classic solar panel from AutoSolar.
Thanks to our wide range of sizes and services, we can put together a system according to your wishes.
Feel free to contact us for advice.
