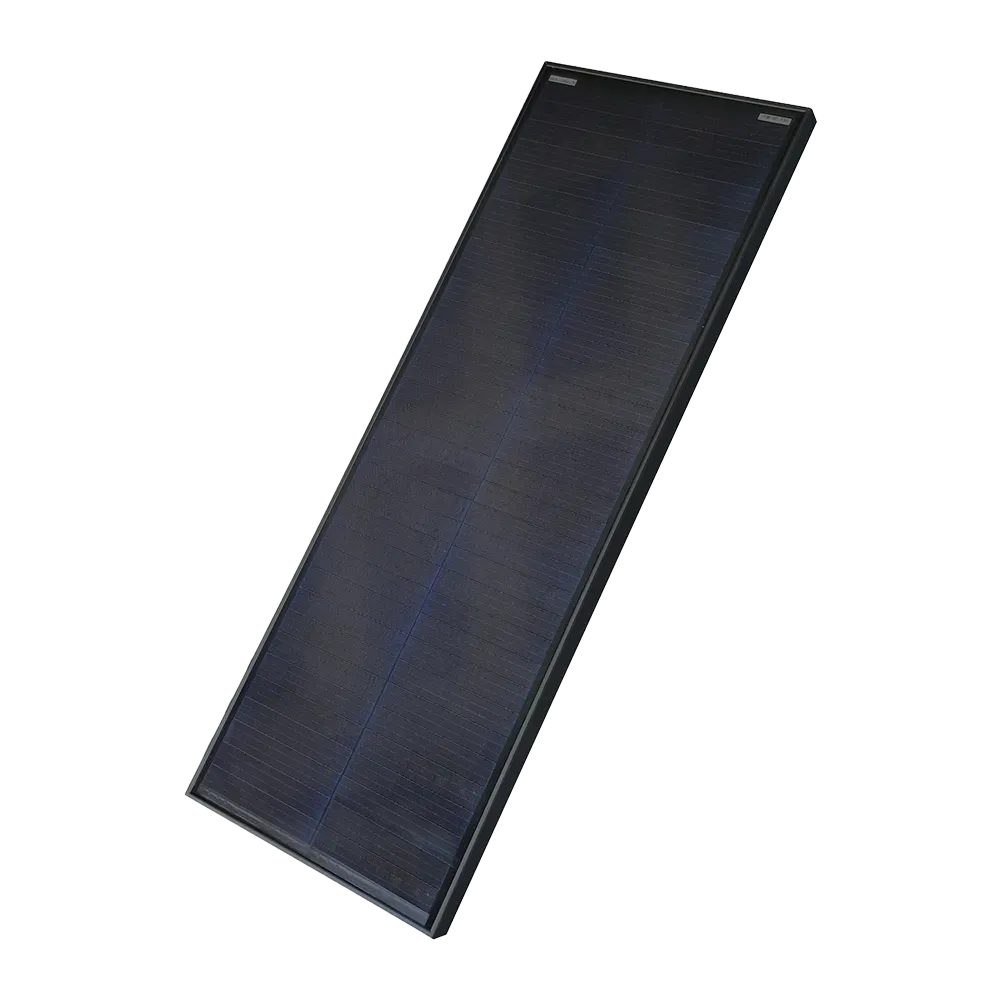

SOLTURA 100 Pro Slim – All-Black 100W Solar Panel

119.00
    More than 10 pieces in stock.
    Delivered within 24 hours.
    5 Reviews
    The SOLTURA 100 Pro Slim is the solar panel for every centimetre that would otherwise go unused. Fully black, slim format just 46 cm wide, advanced shingle technology against partial shading — built for narrow roof strips on motorhomes and boats where a standard panel simply doesn't fit. Pro Series by AutoSolar. read more
    Add to wishlist
    Compare
    Compare Products



    Swiss online shop



    Encrypted payment



    Shipping within 48 hours

    Not every roof offers a large, open surface. Often only a narrow strip remains between a skylight, an antenna and a vent — too small for a standard panel, too valuable to leave unused. The SOLTURA 100 Pro Slim was built precisely for that gap.

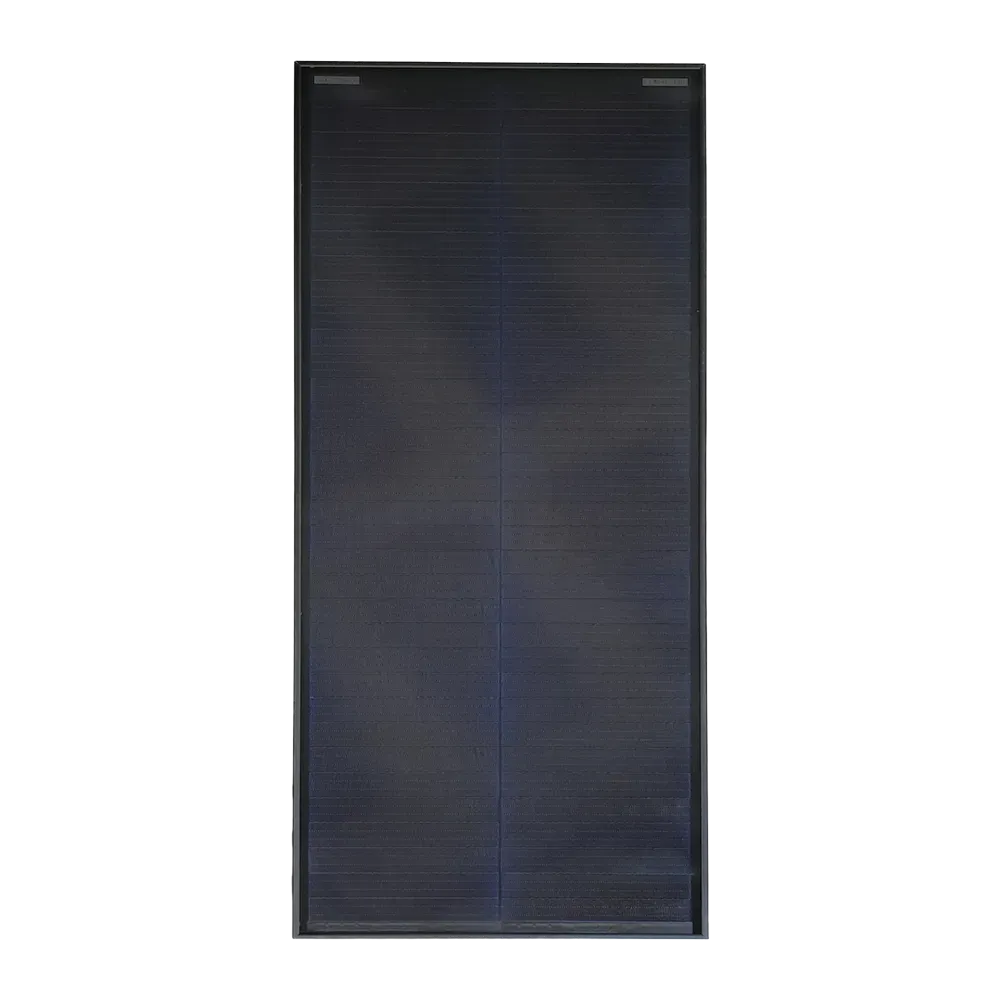

    Fully Black. No visible busbars, no light frame that disrupts. A uniformly dark surface in a slim format that blends discreetly into any roofline — even where space is scarce.

    Shingle technology. Efficient even in a narrow format.

    Inside the SOLTURA 100 Pro Slim, advanced shingle technology (PERC) is at work — the solar cells are arranged in overlapping rows instead of rigid strings. The result: partial shading affects overall output far less than with conventional panels. With a rated power of 100 watts, an open-circuit voltage of 22.9 V and a short-circuit current of 5.46 A, the panel reliably powers autonomous lighting, winter trickle charging, or smaller loads.

    Built to last.

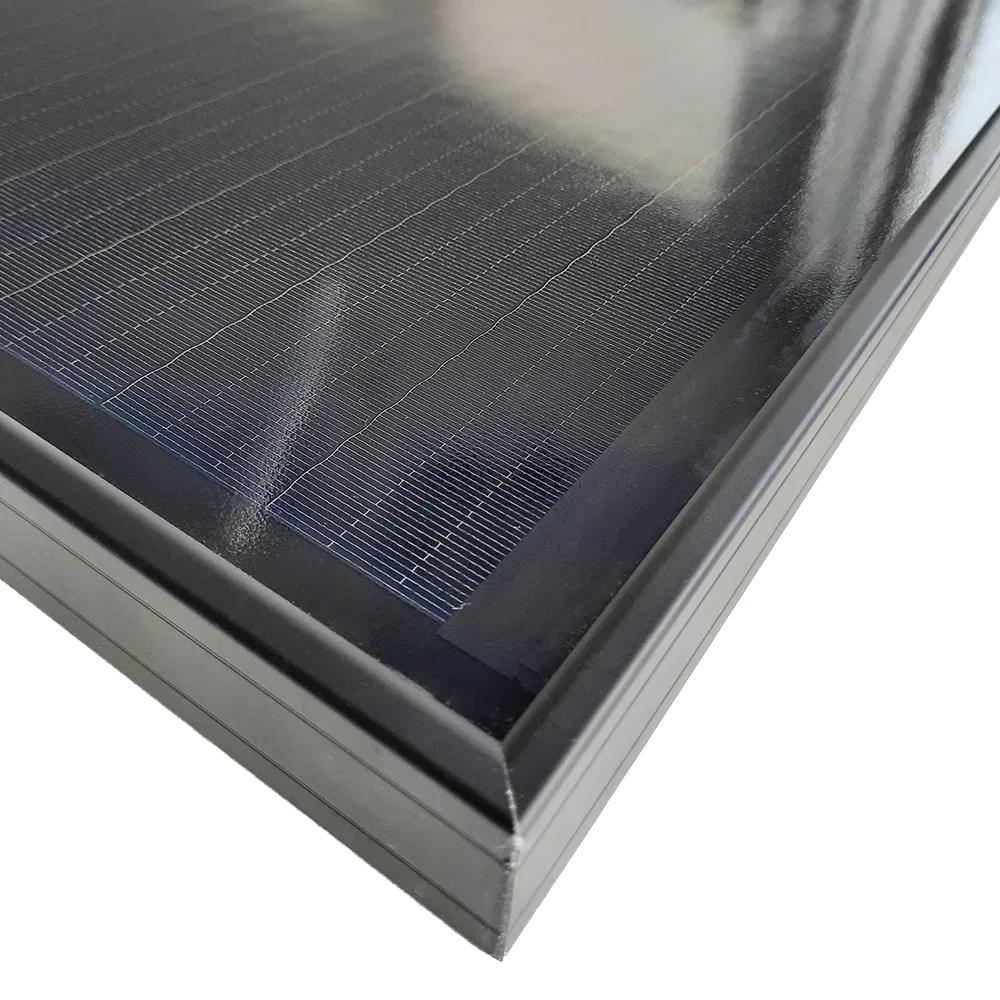

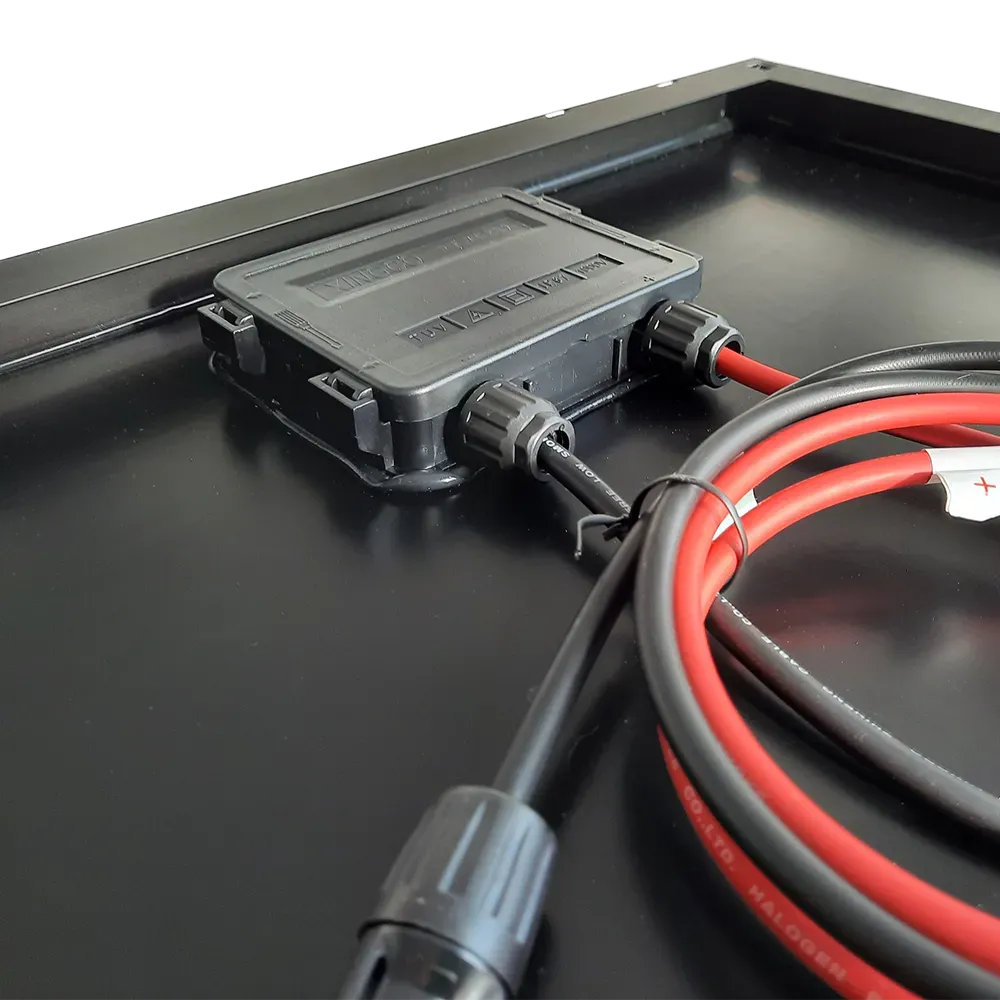

    The SOLTURA 100 Pro Slim protects its cells with hail-resistant construction — even in a compact format, no compromise on durability. The aluminium frame is corrosion-resistant, dimensionally stable and designed for decades of use. The 90 cm connection cable with pre-fitted MC4 connectors allows wiring in minutes.

    For roofs that offer little space.

    Motorhomes and camper vans.
    With a surface area of just 1195 × 460 mm, the SOLTURA 100 Pro Slim fits where other panels already fail at a skylight or antenna — ideal as a complement to a larger main panel.

    Boats and smaller vessels.
    The slim format fits narrow deck areas and cabin roofs where standard panels are simply too wide.

    Autonomous systems.
    For winter trickle charging, autonomous lighting or smaller off-grid applications, the SOLTURA 100 Pro Slim reliably delivers power — compact enough for any mounting situation.

    Pro Series. By AutoSolar.

    The SOLTURA 100 Pro Slim is part of the AutoSolar Pro Series — developed for people who make no second choice when it comes to energy. Manufactured on precision machines, tested to our quality standards, built for long-term use.

    Compact. Efficient. Pro Series by AutoSolar.

    Technical specifications

    • Maximum power (Pmax): 100 W
    • Open-circuit voltage (Voc): 22.9 V
    • Short-circuit current (Isc): 5.46 A
    • Max. power voltage (Vmp): 19.4 V
    • Max. power current (Imp): 5.16 A
    • Cell technology: Monocrystalline, shingle technology (PERC)
    • Dimensions: 1195 × 460 × 30 mm
    • Weight: 6.5 kg
    • Connection cable: 90 cm, pre-fitted MC4 connectors
    • Application: Motorhome, boat, autonomous systems

    Produkt-Nummer

    mono100slimb

    Scope of delivery

    1x 100W solar panel with 90cm cable and MC4 connector pre-assembled

    length

    1195 mm

    Width

    460 mm

    Height

    30 mm

    Weight

    6.5 kg

    Solar module type

    Monocrystalline with aluminum frame

    Short-circuit current (Isc)

    5.46 A

    Maximum Power Current (Imp)

    5.16 A

    Maximum Power Voltage (Vpm)

    19.4 V

    Open circuit voltage (Voc)

    22.9 V

    Maximum power (Pmax)

    100 watts

    Solar cell type

    Monocrystalline

    Plug type

    MC4

      Welche effektive Tagesleistung (Wh/d) kann das 150W-Solarmodul leisten?

      Bei 150W kann man ca. 600-700Wh pro Tag produzieren.


      Wie teuer ist die Montage bei einer Garage machen zu lassen?

      Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.


      Können Module mit unterschiedlichen Leistungen zusammengeschlossen werden?

      Wir empfehlen, dass Sie nur Solarmodule derselben Grösse zusammen mit einem Regler betreiben, da es sonst zu Verlusten bei den grösseren Modulen kommt.


      Wie viel Ertrag hat die Solaranlage im Winter?

      Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.


      Was passiert bei unterschiedlicher Ausrichtung der Module?

      Bei unterschiedlicher Ausrichtung sollten die Solarmodule parallel zusammengeschlossen werden. Damit bei Abschattung nicht beide Solarmodule an Leistung verlieren.


      Was passiert bei Verschattung der Solarmodule?

      Durch die Verschattung produziert die Solaranlage weniger Energie. Bei Standorten, bei dem ein Modul verschattet werden kann, sollten die Solarmodule parallel zusammengeschlossen werden.


      Was ist der Vorteil, wenn ich meine Solarmodule in Serie schalte anstatt parallel?

      Bei der Serienschaltung erhöht sich die Spannung der Solaranlage. Dies hat den Vorteil, dass auch bei schlechtem Wetter genügend Spannung vorhanden ist, damit der Laderegler optimal arbeiten kann. Serienschaltung kann nur mit einem MPPT-Laderegler gemacht werden.
