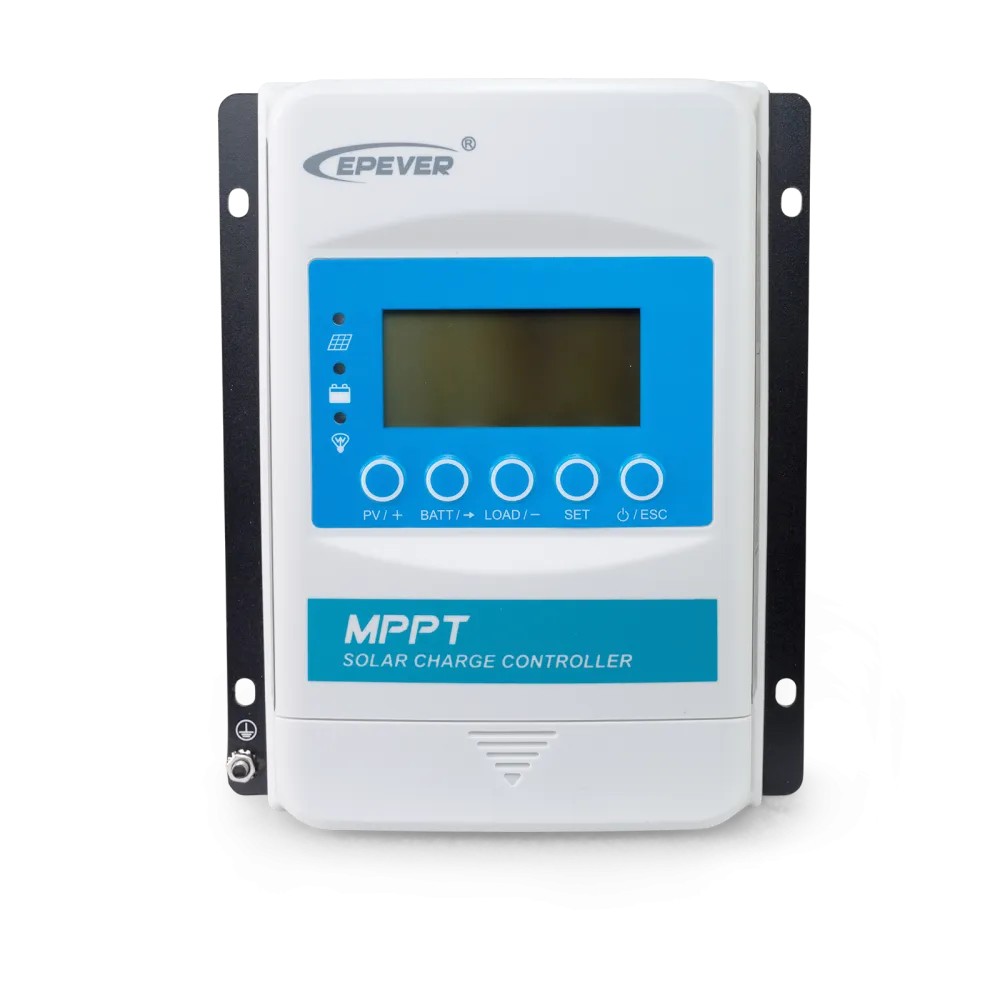

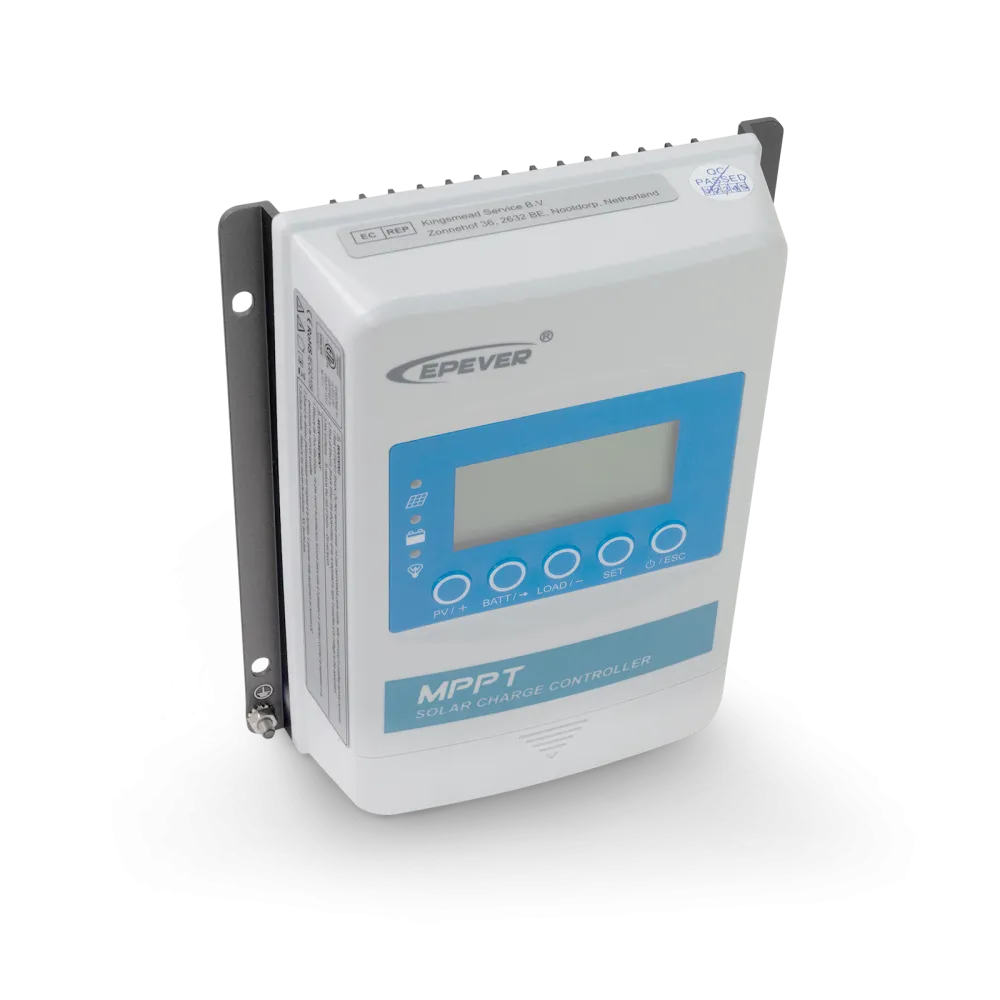

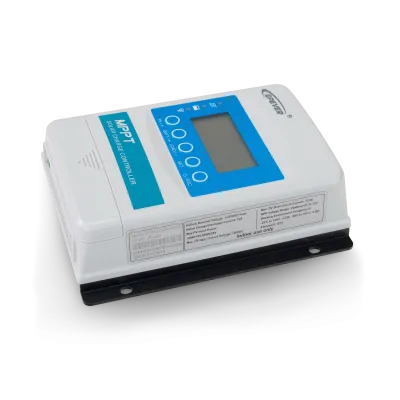

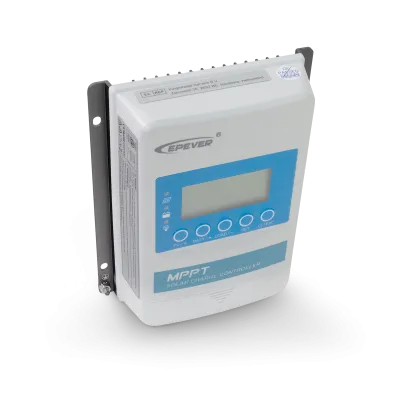

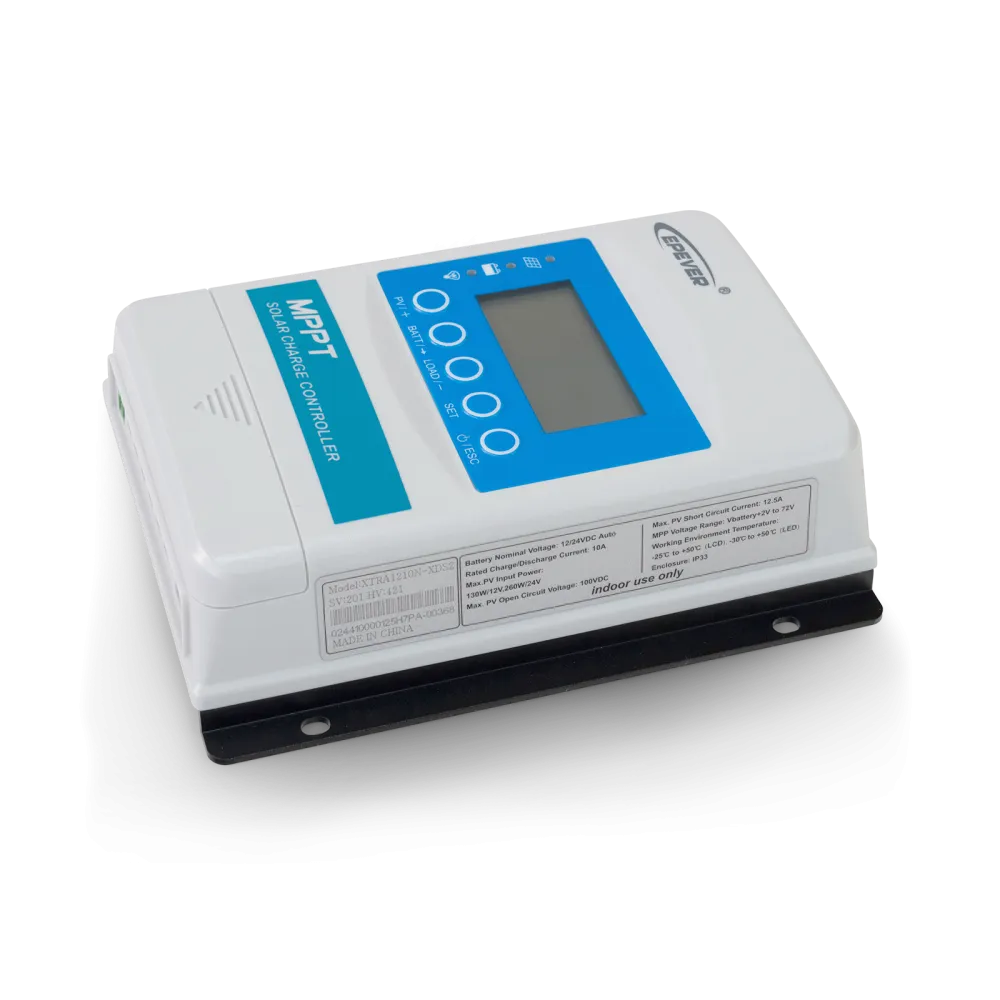

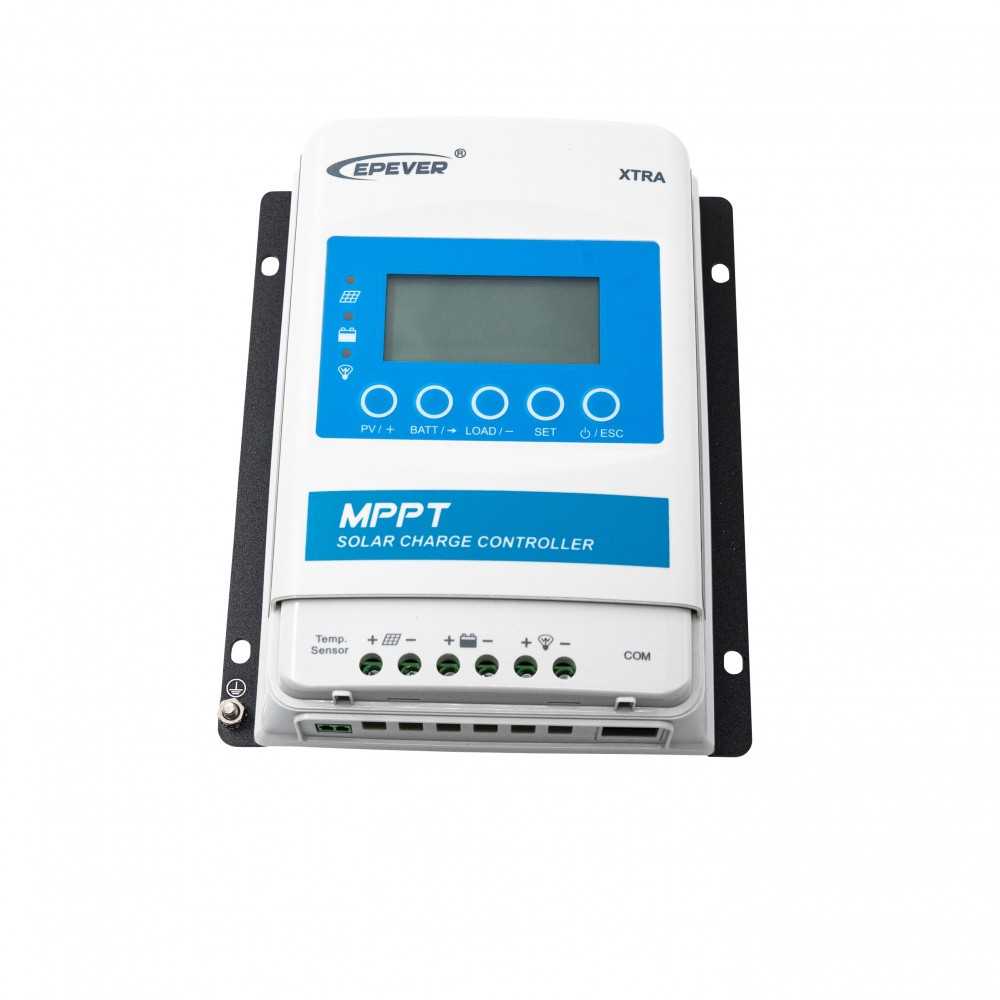

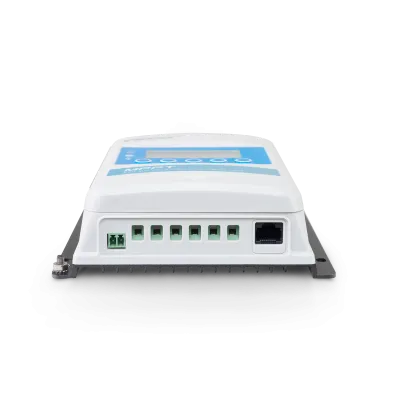

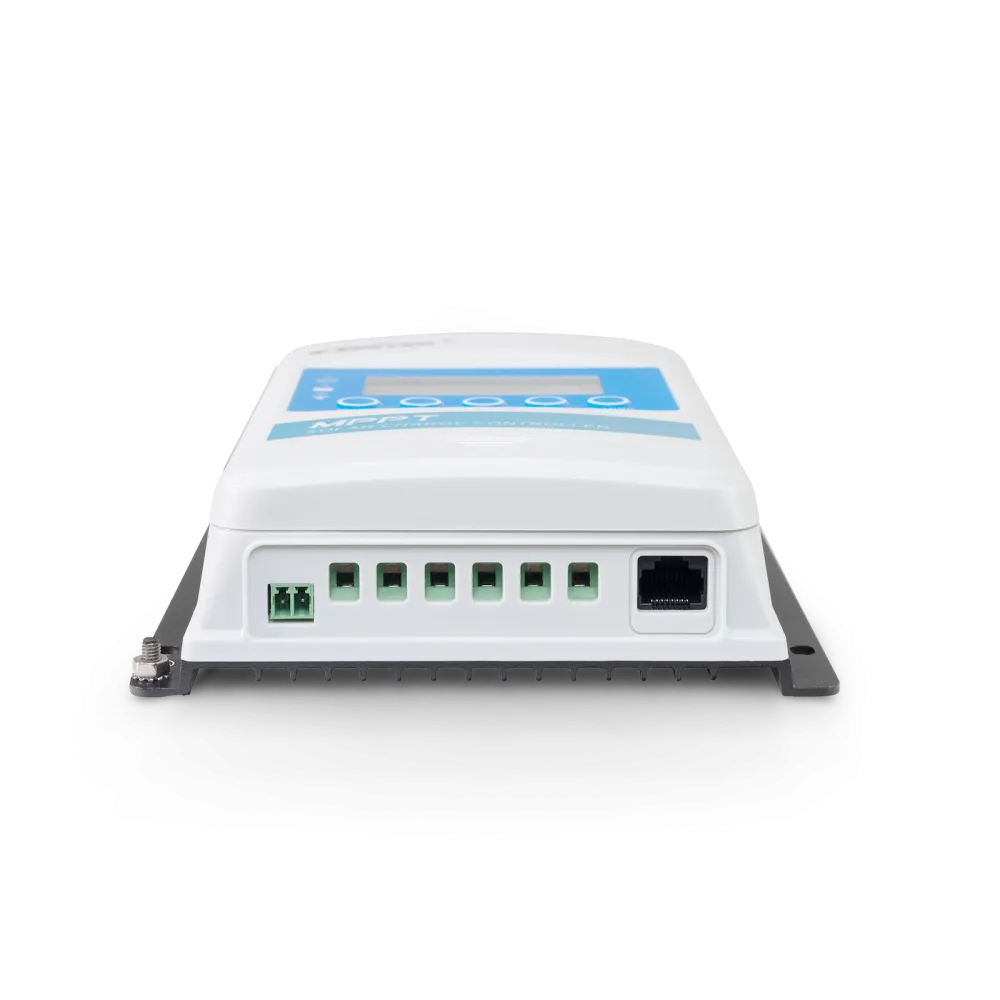

Solar charge controller MPPT 10A

10 Amp MPPT charge controller with remote control/display!

With MPPT (Max Power Point Tracking), the full power of your solar modules is used optimally.

Module power up to 140W at 12V, up to 280W at 24V.

Ideal for using the full power (20-40% more solar power yield) of your solar module to charge your 12 or 24 volt solar batteries.

Efficiency of 97%, tracking effectiveness of 99%!

With MPPT (Max Power Point Tracking), the solar power of your solar modules is optimally used.
The most efficient working point of the solar modules changes due to various factors, such as module temperature, irradiation, module type, etc. This working point is constantly monitored by the internal microcontroller and, if necessary, controlled in such a way that the solar module performs optimally and your batteries are charged with the greatest current .
Lead-acid, maintenance-free lead-acid, lead-gel and lead-fleece batteries are usually used to store energy in photovoltaic solar systems. Lead-acid batteries must be protected against deep discharge and overcharging. The MPPT solar charge controller meets both requirements, and the batteries are well maintained by intelligent maintenance.
The switching thresholds for over/under voltage, load disconnection and reset voltage are controlled precisely and temperature-stable via the internal microcontroller.
A switchable load output gives you the option of switching all consumers connected to the MPPT solar charge controller on and off with the push of a button.


The integrated display shows all relevant parameters as well as the controller settings that can be changed. The remote control (optional) with comfort display for the MPPT solar charge controller enables a visual control of the charging parameters during operation and the remote control of the MPPT solar charge controller. The integrated real-time display enables the ampere hours to be evaluated.

MPPT (Max Power Point Tracking)

• Automatic system voltage detection 12/24V
• Solar input voltage range from up to 100V
• Battery deep discharge protection, overcharge protection, overvoltage protection
• Protection against desulfation
• Temperature-dependent charging parameter correction
• Over-temperature protection, over-current protection, polarity protection
• Separate load output with switch-off option

features

The controller can be monitored and set using the integrated display or the MT50 remote control (optional) or adapter cable (optional) and software . Monitoring of the controller is possible via the PC software.
4 battery types can be set. In the user battery type, the voltages can be freely selected and programmed via the software. (lithium batteries)
A switchable load output gives the user the option of switching all consumers connected to the solar charge controller on or off by pressing a button on the controller or by setting the software on the PC.

2 timers can control night lighting as soon as the controller recognizes "night" through the solar module.

Yield measurement of all system parameters and monitoring via PC software possible.
The controller can be set and monitored with the optionally available MT50 display.
