MPPT charging technology

MPPT (Maximum Power Point Tracking) ensures optimal use of the full power output of your solar panels.
Ideal for utilizing the maximum power of your solar panel and charging your batteries to 12V/24V volts.

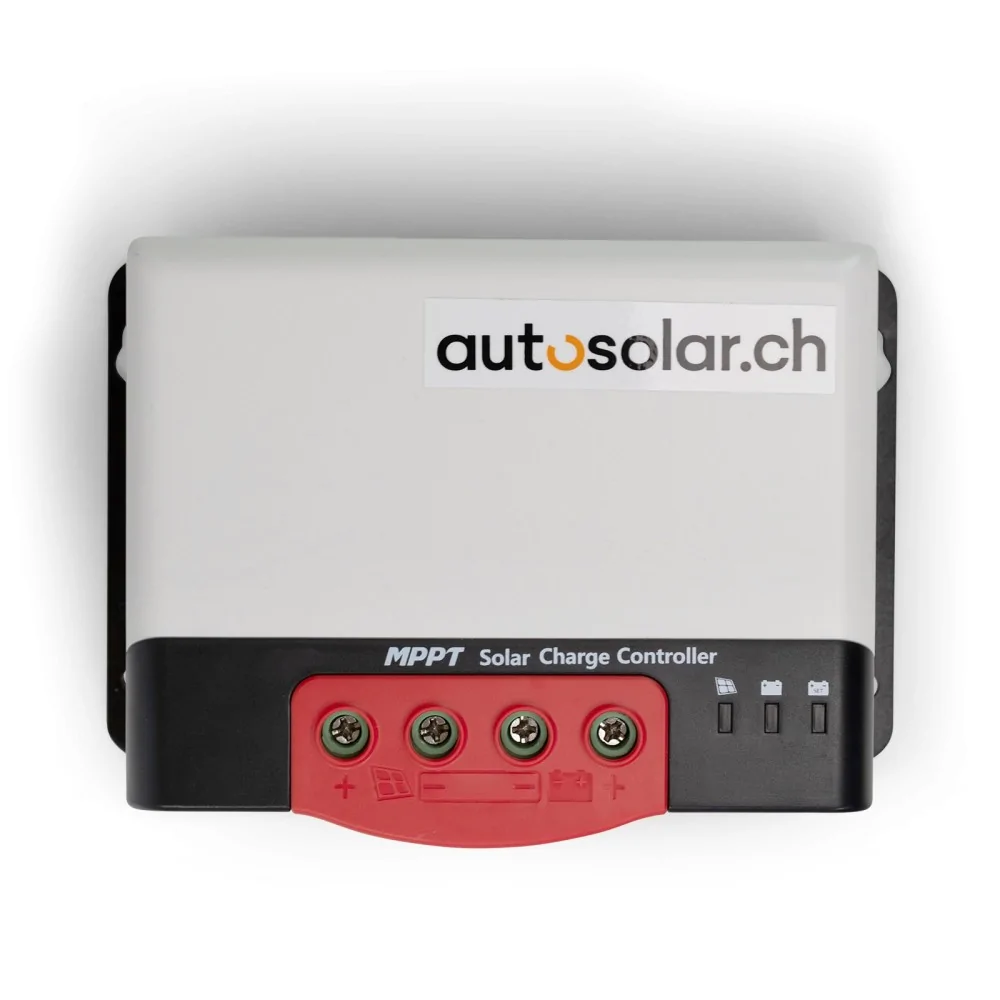

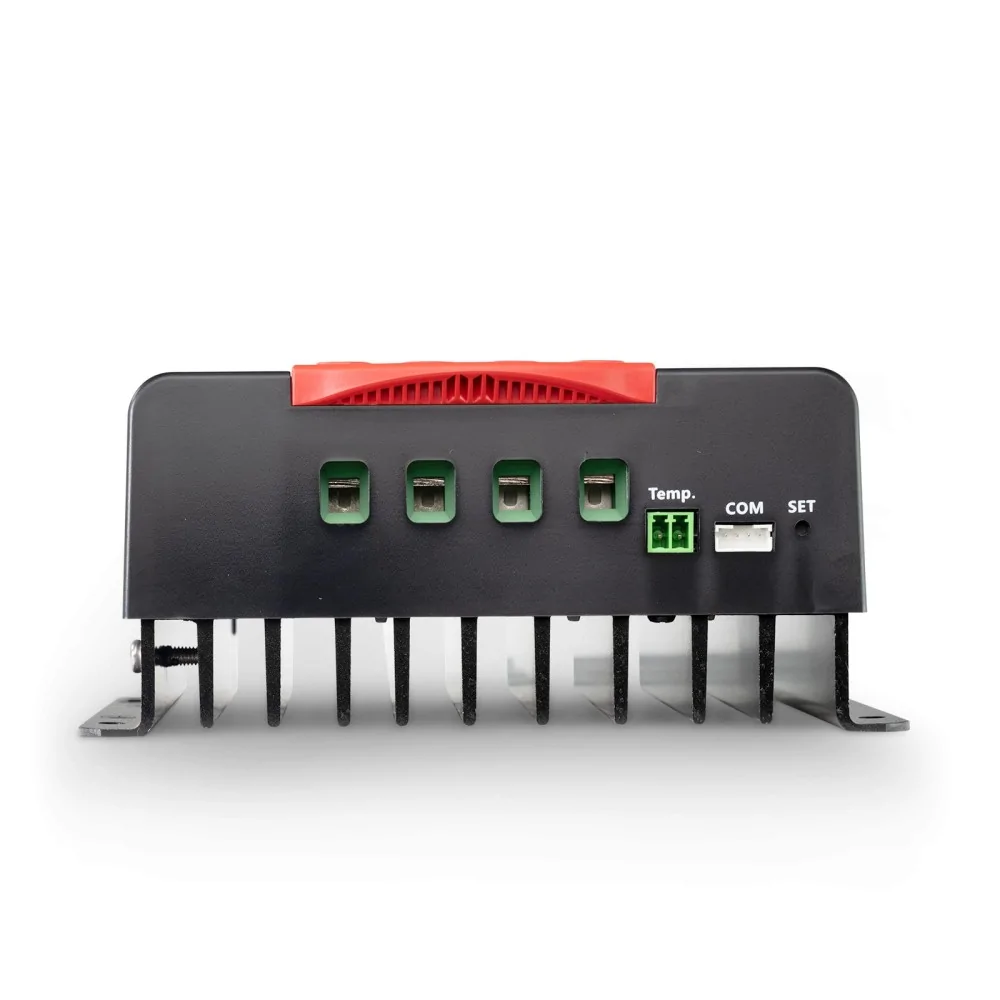

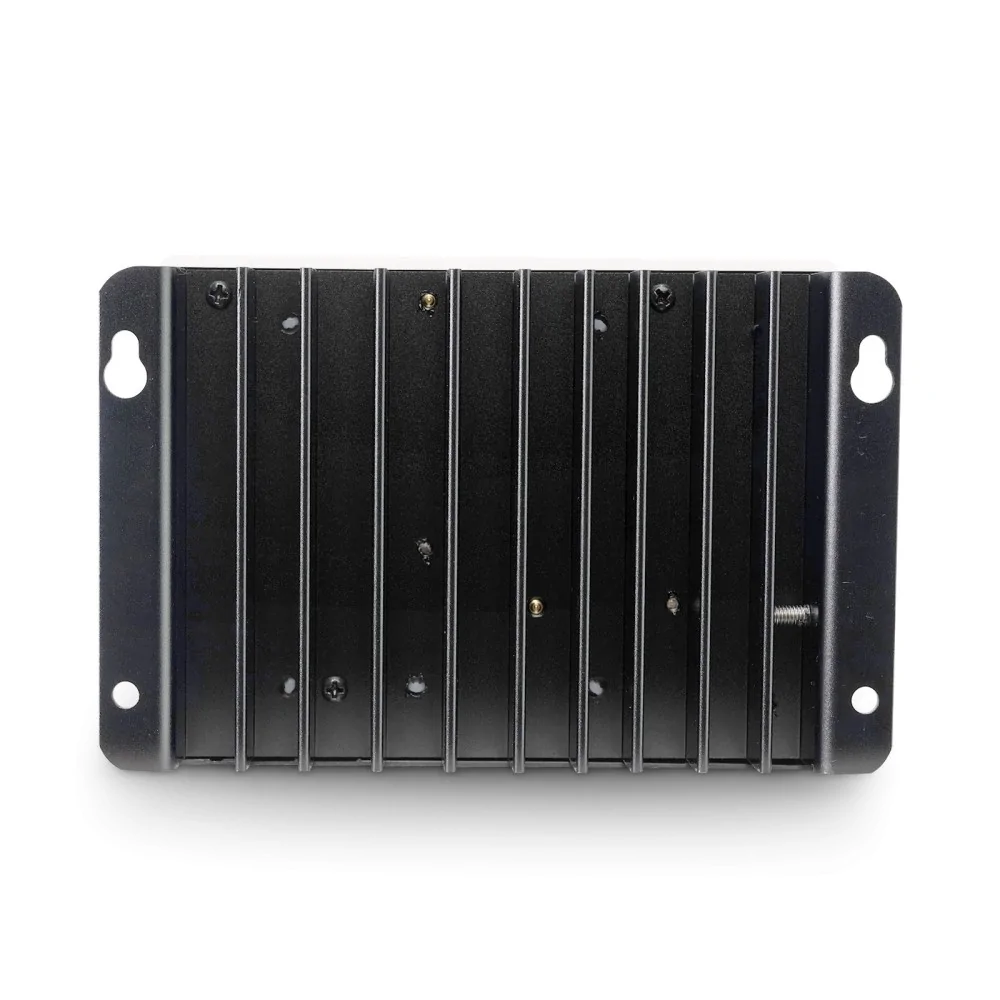

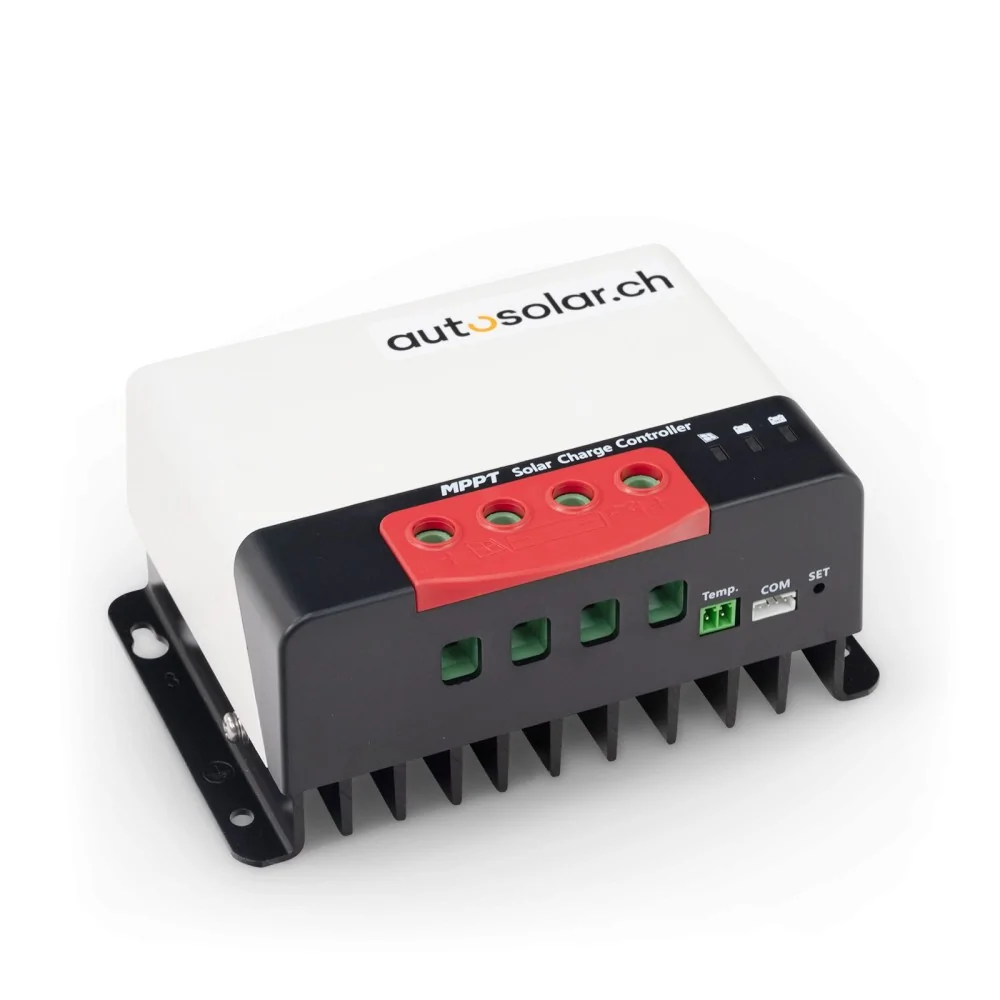

The MPPT solar charge controller can deliver up to 40A charging current for 12V and 24V batteries. The maximum PV voltage is 100V, and the charge controller can handle a maximum of 550W at 12V and a maximum of 1100W at 24V.

The charge controller can be used for lead-acid, AGM, gel, and lithium batteries, and if required, you can also create a battery charging profile according to your wishes.

Function of solar charge controller

The solar charge controller regulates the voltage of the solar panels to an optimal level for the batteries. The charge controller automatically detects the battery's nominal voltage. By utilizing MPPT technology, this charge controller can achieve up to 30% more energy output from the solar panels to the battery compared to conventional PWM charge controllers. The three-stage charging curve with selectable charging voltages allows the charge controller to be configured precisely to meet the specific battery requirements.

MPPT (Max Power Point Tracking)

Automatic system voltage detection

Solar input voltage range up to 100V

Battery deep discharge protection, overcharge protection, overvoltage protection

Protection against desulfation

Temperature-dependent charging parameter correction

Over-temperature protection, over-current protection, polarity protection

The system is fully protected against overvoltage, overtemperature, and reverse polarity. An automatic current limit allows the use of the full current without the user having to worry about potential overload. When expanding the solar system, up to three controllers can be connected in series, thus handling three times the charging current.
