This pack contains

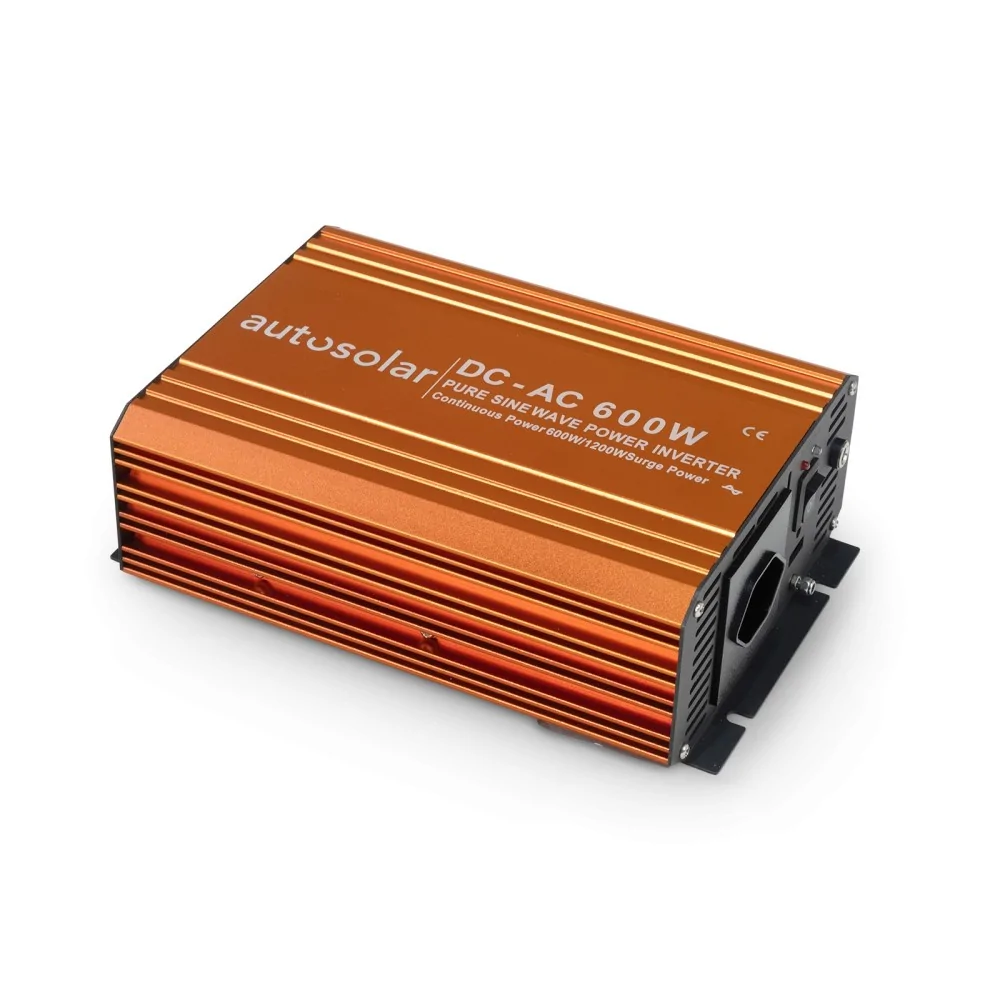

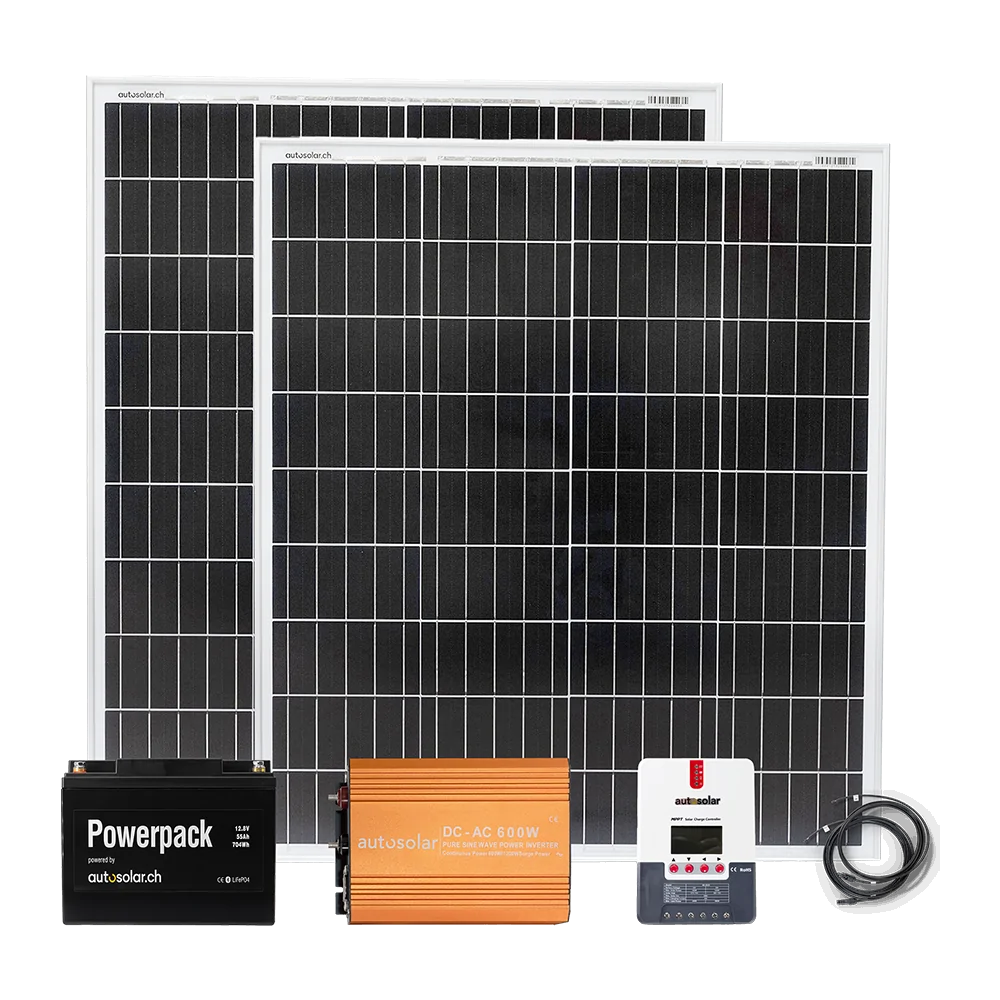

This set includes two 100W solar panels, a 20A charger, a 600W 12V-230V pure sine wave inverter, a 55Ah lithium battery, and the necessary cables and plugs for charging the 12V batteries.
The battery is included in this set.
This set contains everything you need to operate your 230V devices using solar energy, just like at home.

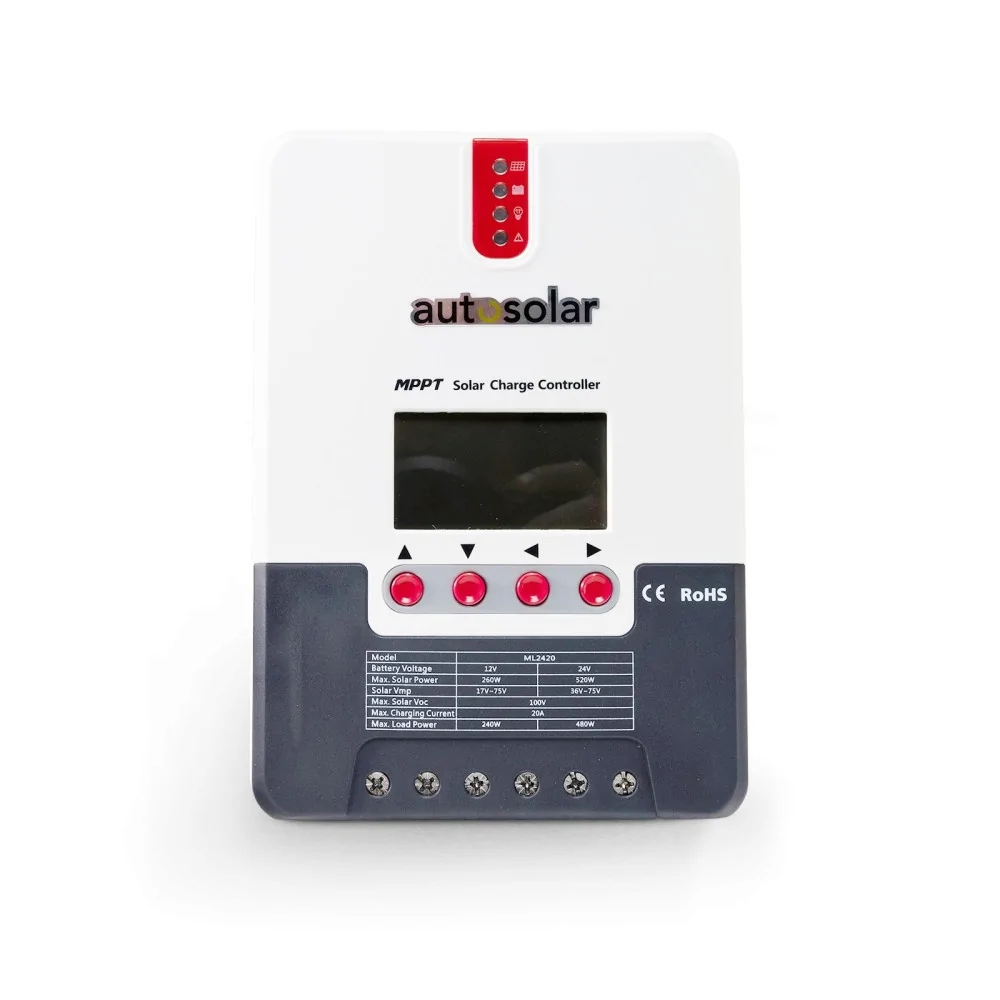

The included MPPT charge controller allows for approximately 25% more power to be generated from the solar panels. The high-quality, backlit display allows for easy monitoring of production, consumption, and battery status at any time.

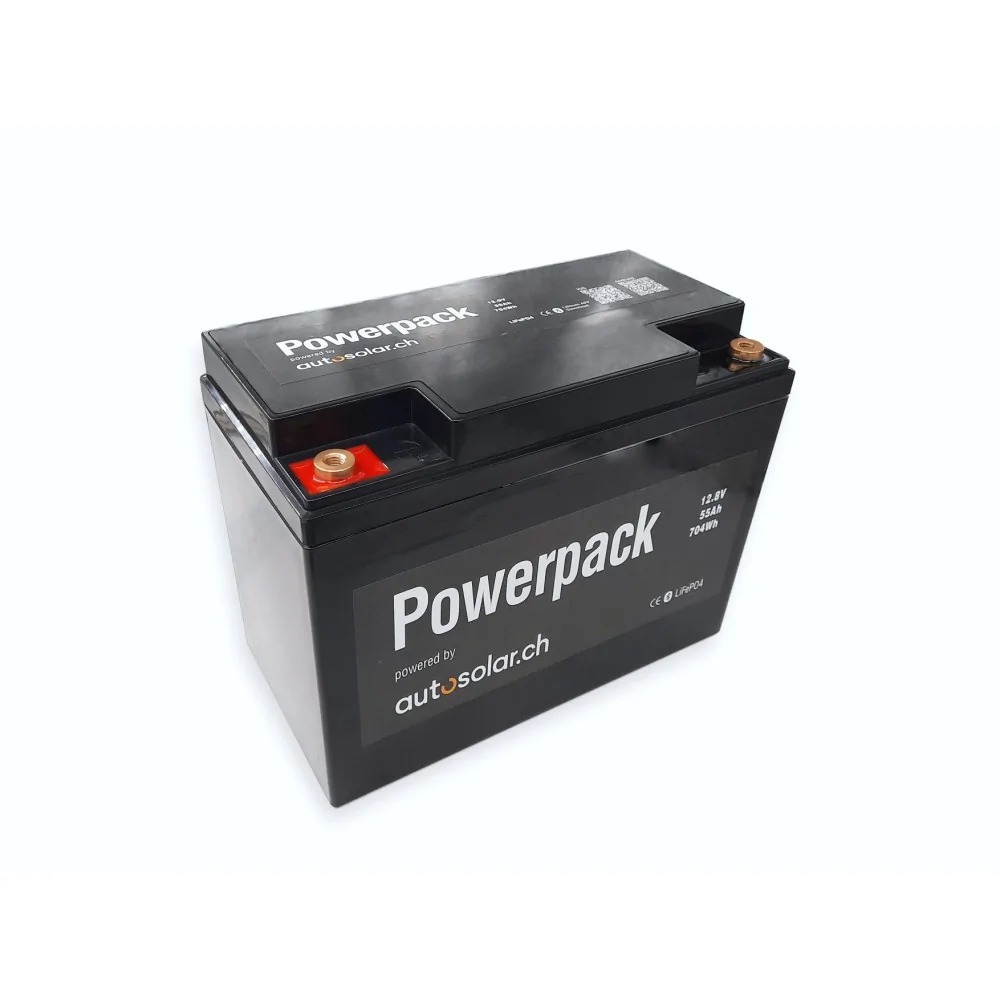

The included lithium batteries are very lightweight (7.0 kg), offer ultra-fast charging and high performance.
Optional accessories:
Produkt-Nummer
set200-li230v
With battery
Yes
Battery type
lithium
With inverter
Yes
Includes mounting hardware
No
Solar module type
Monocrystalline with aluminum frame
Area of application
For motorhomes
Area of application
For garden shed
Area of application
For alpine hut / mountain pasture
Area of application
For ship
Consumer (what is to be operated?)
Light
Consumer (what is to be operated?)
Radio / Music
Consumer (what is to be operated?)
charging mobile phone
Consumer (what is to be operated?)
water pump
Consumer (what is to be operated?)
Fans
Consumer (what is to be operated?)
TV
Consumer (what is to be operated?)
charging laptop
Consumer (what is to be operated?)
Refrigerator 230V
Consumer (what is to be operated?)
12V refrigerator
Maximum power (Pmax)
200 W
Produkt-Nummer
mono100
Scope of delivery
1x solar panel with 90cm solar cable and MC4 connector pre-assembled
Size (length x width x height)
Weight
7.2 kg
Number of cells
36
Maximum System Voltage
1000 VDC
Short-circuit current (Isc)
6.07 A
Maximum Power Current (Imp)
5.62 A
Maximum Power Voltage (Vpm)
17.8 V
Open circuit voltage (Voc)
22.3 V
Maximum power (Pmax)
100 W
guarantee
2-year product warranty
guarantee
20-year performance guarantee (80%)
Produkt-Nummer
inv600wSin
Size (length x width x height)
221x145x69 mm
Weight
1.6kg
Tension
12 V
Top performance
1200W
Continuous power
600W
With network priority switching (bypass)
No
guarantee
2 years
Produkt-Nummer
Li55ah
Size (length x width x height)
260 x 133 x 205mm
Weight
6.2
Battery type
lithium
Tension
12.8 V
Capacity (10h):
55 Ah
guarantee
8-year product warranty
Produkt-Nummer
rks
Produkt-Nummer
mppt20srne
Size (length x width x height)
210x151x59.5mm
Weight
1.4kg
Battery type
Suitable for lead/AGM/Gel/Lithium
Tension
12V / 24V
PV input voltage
100V
Charging current
20A
guarantee
2-year product warranty
Produkt-Nummer
kabel4mmMC4
Wir können gerne ein passendes Set für die jeweiligen Bedürfnisse zusammenstellen.
Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
