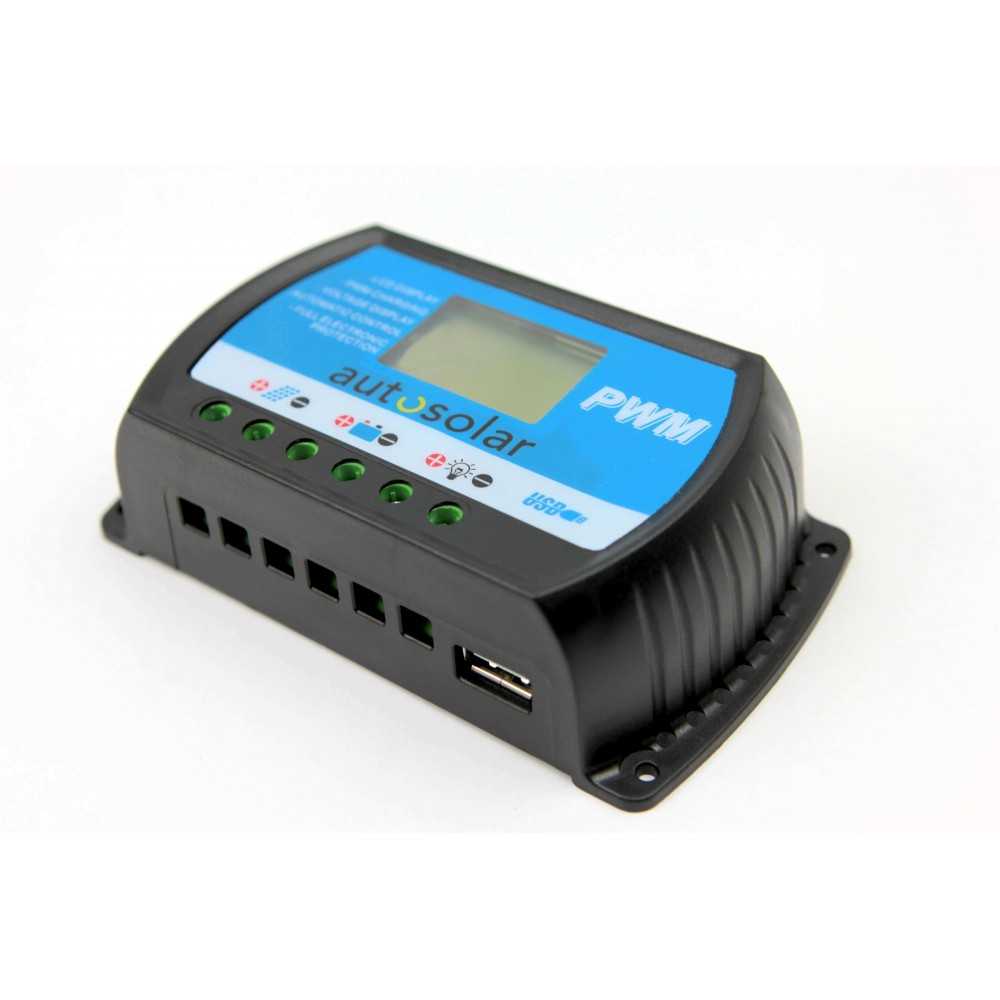

Solar Laderegler PWM 30A mit USB - Ladekontroller

30A solar charge controller PWM charge controller for system voltages from 12V to 24 volts

The charge controller is connected between the solar module and the battery and controls the charging process so that the battery is always optimally charged.

PWM charge controller

The current operating status is determined by a resistor and the charging process is then optimized using the principle of pulse width modulation. ua , among other things, a very low voltage drop (maximum 0.24V) and internal current requirement (maximum 6 mA) is achieved.
Therefore, PWM charge controllers are significantly more effective than simple linear charge controllers.
The built-in microprocessor charges the battery gently, thereby guaranteeing a long service life for your solar batteries.

The charge status and charging via the solar module can be seen on the LEDs. The built-in undervoltage protection prevents the battery from being discharged too much.

Overcharging of the batteries is prevented because the charge controller ends the charging process when full capacity is reached.

Suitable for acid, AGM and gel batteries . The integrated microprocessor controls the switching thresholds of the charging process precisely and temperature-stable.

Up to 420 watt module power suitable for 12V systems, up to 840 watt module power for 24 volt systems.

Characteristics:

• Keeps the battery fully charged
• Can be used for acid, AGM and gel batteries

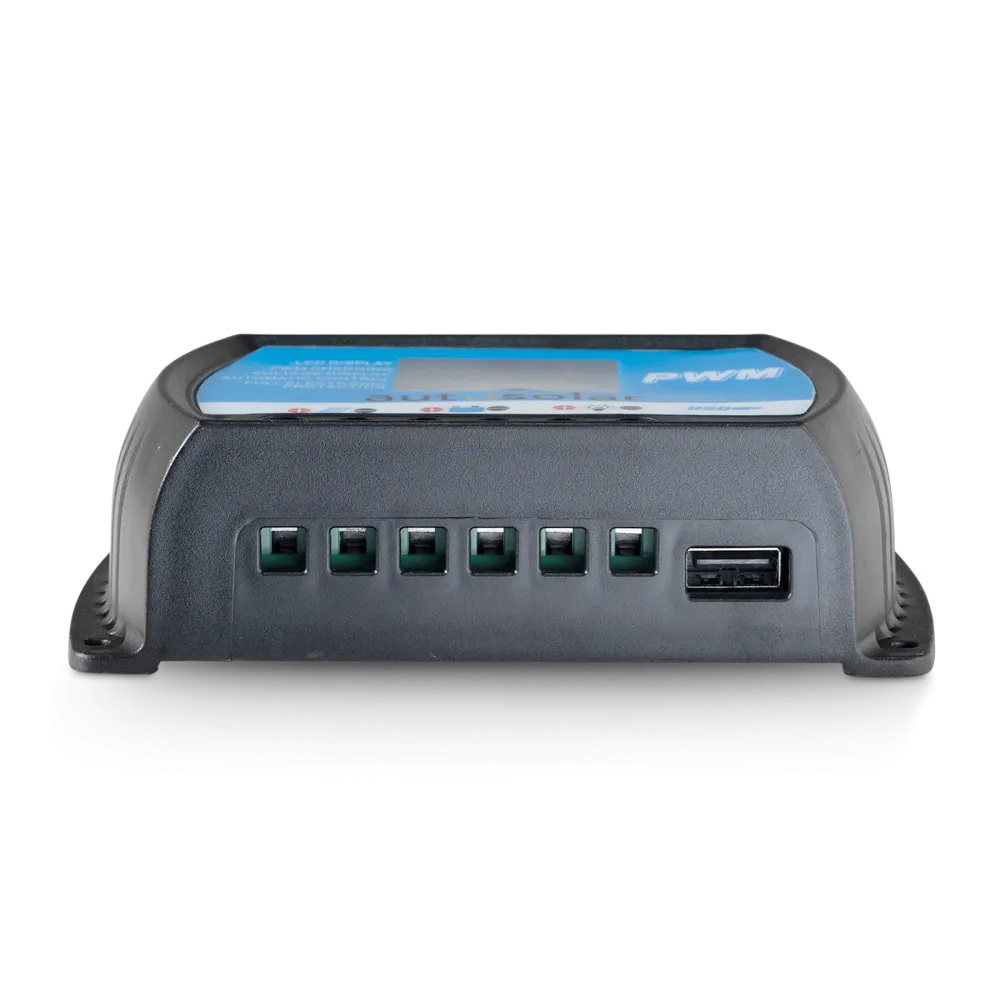

• USB port 5V
• protects the battery from overcharging
• protects the battery from deep discharge by consumers
• prevents the battery from delivering voltage to the solar modules at night
• Battery AND solar panel polarity reversal protection
• Automatic shutdown if the charging current exceeds the capacity of the controller
• Automatic shutdown in the event of a short circuit
• Automatic Temperature Compensation (ATC)

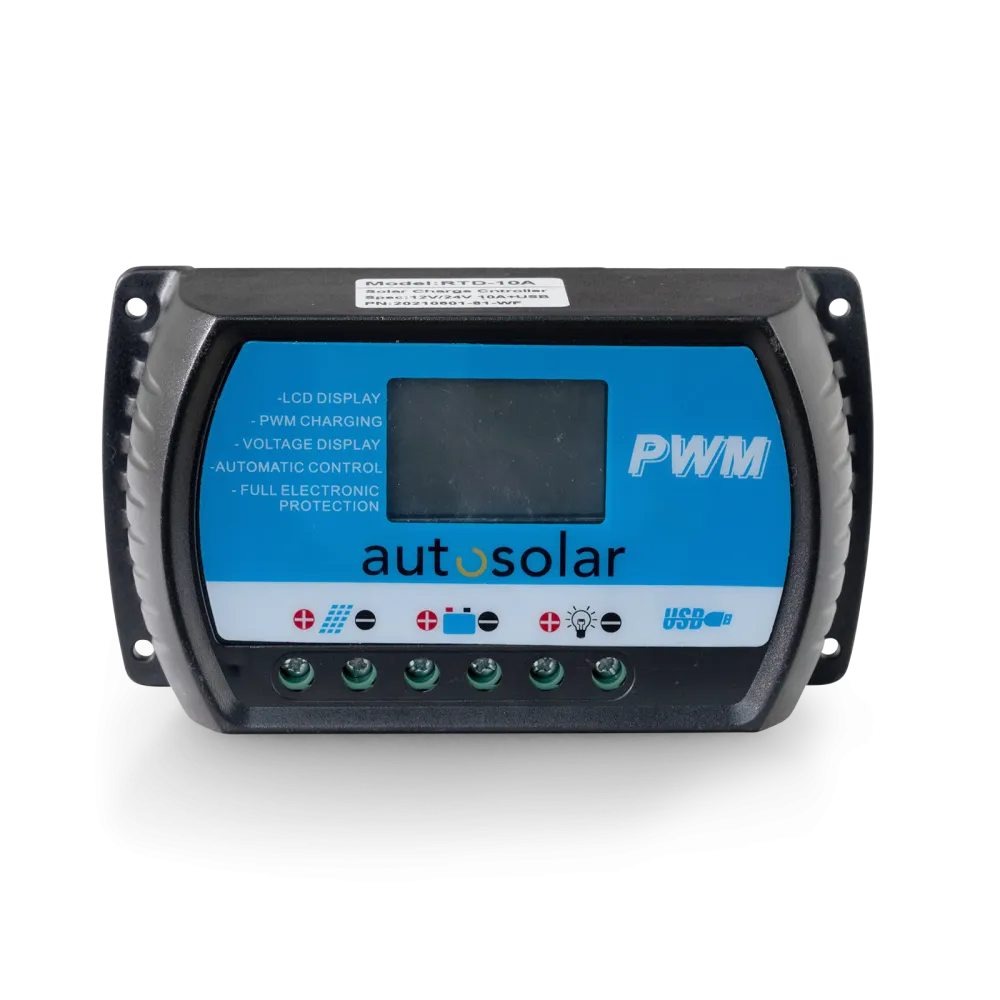

• LED indicates battery charge level
• PWM modulation

• Automatic switching on/off of the charging current, depending on the battery charge

• 3 battery types adjustable (acid, AGM, gel)
• Guarantee: 2 years

Technical details:

• Working voltage: 12V, 24V (automatically detected)
• Maximum working current: 30A
• DC input voltage (module working voltage): max. 12~18V at 12V battery and 24~37V at 24V battery
• Shutdown (full charge): 14.6V / 29.2V
• Shutdown (Under Voltage): 11.1V / 22.2V
• Overvoltage protection
• short-circuit proof
• Leakage current with no charge: max. 6 mA
• Voltage drop:
• Working temperature: -35°C to + 55°C
• Dimensions: 14.4 x 7.5 x 4.5 cm
• Weight: 180g
