SOLTURA 160W (Pro-Line-Solarpanel by AutoSolar) 149.00 - On sale!
More than 10 pieces in stock. Delivered within 24 hours. The SOLTURA 160W Pro Mono is the solar panel for anyone who values both performance and aesthetics equally. All-black, monocrystalline, with hail-resistant safety glass and an anodized aluminum frame—a panel you don’t hide, but show off. 160 watts rated power, IP65 junction box, plug-and-play with pre-installed MC4 connectors. Pro Series by AutoSolar. read more Compare Compare Products
Swiss online shop
Encrypted payment
Shipping within 48 hours
149.00
More than 10 pieces in stock.
Delivered within 24 hours. The SOLTURA 160W Pro Mono is the solar panel for anyone who values both performance and aesthetics equally. All-black, monocrystalline, with hail-resistant safety glass and an anodized aluminum frame—a panel you don’t hide, but show off. 160 watts rated power, IP65 junction box, plug-and-play with pre-installed MC4 connectors. Pro Series by AutoSolar. read more
Compare
Compare Products
Swiss online shop
Encrypted payment
Shipping within 48 hours
A solar panel is visible. On the camper roof, on the boat deck, on the balcony railing. Those who care about how their vehicle or home looks don't place compromises there. The SOLTURA 160W Pro Mono was built for these people — for all those who understand that genuine quality can also be seen while it's generating electricity.

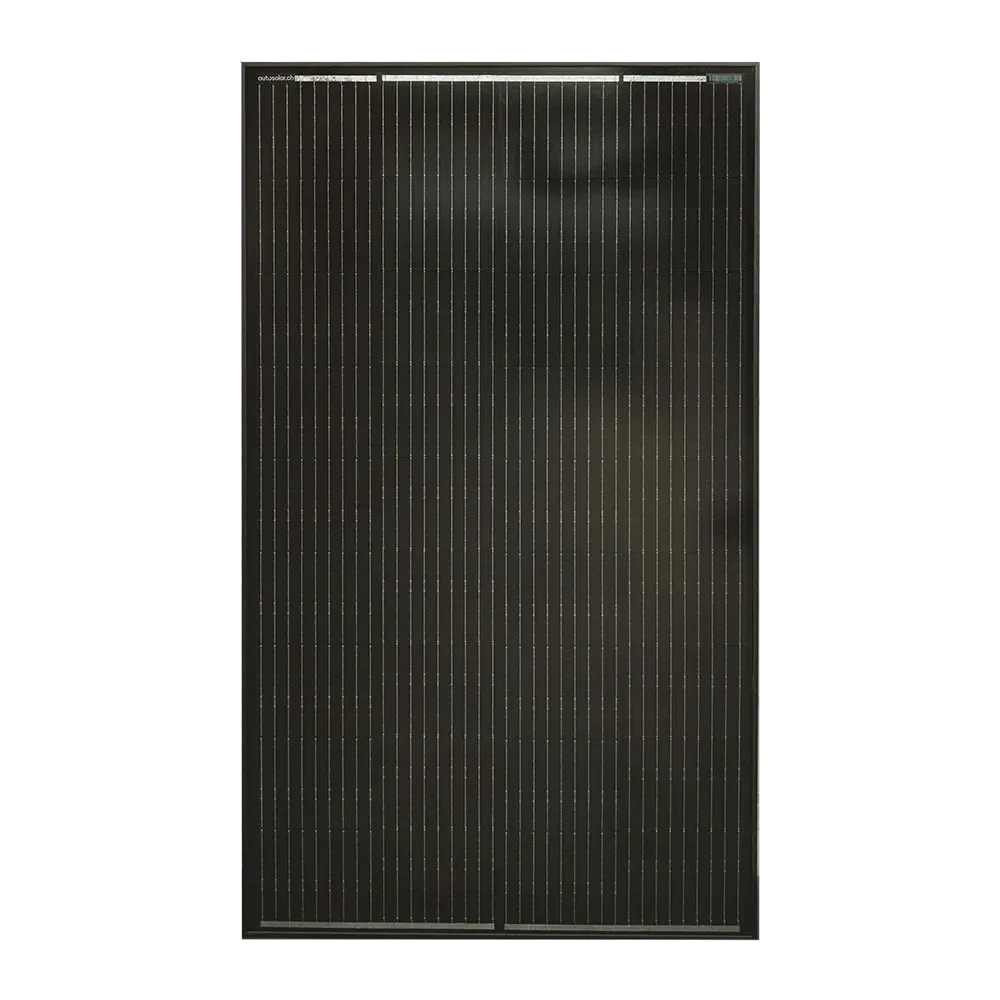

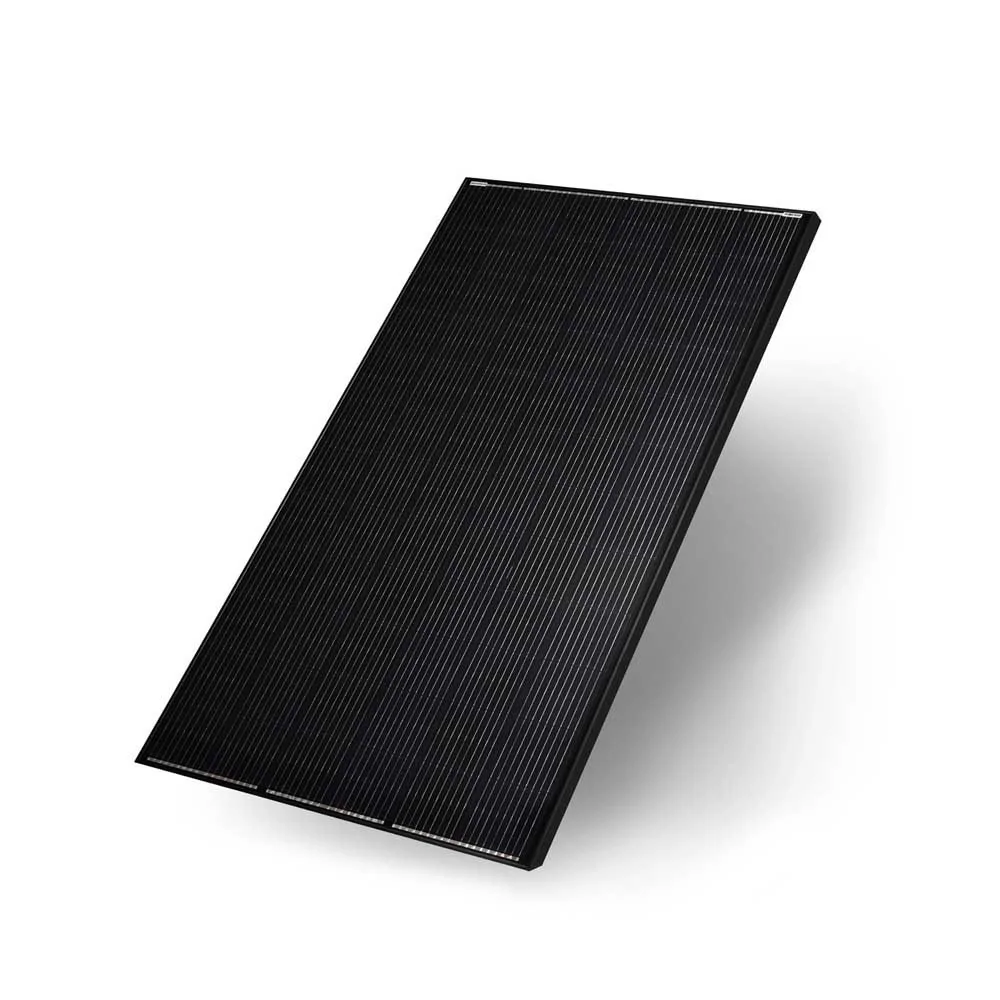

Fully Black. No white backsheet. No silver frame that disrupts. Just a uniformly dark surface that integrates seamlessly into any design.
Monocrystalline. Because efficiency knows no compromise.
Inside the SOLTURA 160W Pro, 36 high-quality monocrystalline silicon cells work — the most efficient cell technology for compact panels in 12V systems. All 36 cells are connected in series: a proven configuration that delivers stable charging voltages even in low light and oblique irradiation, working optimally with any MPPT charge controller.
Result: 160 watts of rated power, 24 V open-circuit voltage, 8.8 A short-circuit current. Enough to reliably power refrigerators, lighting, laptops and chargers throughout the day and to fully recharge the battery for the night.
Built to last.
The SOLTURA 160W Pro Mono protects each of its cells with hail-resistant safety glass — a material that is standard in professional rooftop installations and now provides the same protection in mobile use. An anodised black aluminium frame: corrosion-resistant, dimensionally stable, UV-resistant — for decades, not seasons.
The junction box on the back is IP65 certified: fully dustproof and waterproof against jets. Rain, spray at sea, pressure washers at the campsite — the panel keeps working. The 90 cm connection cable with pre-fitted MC4 connectors is factory-installed: plug in and go.

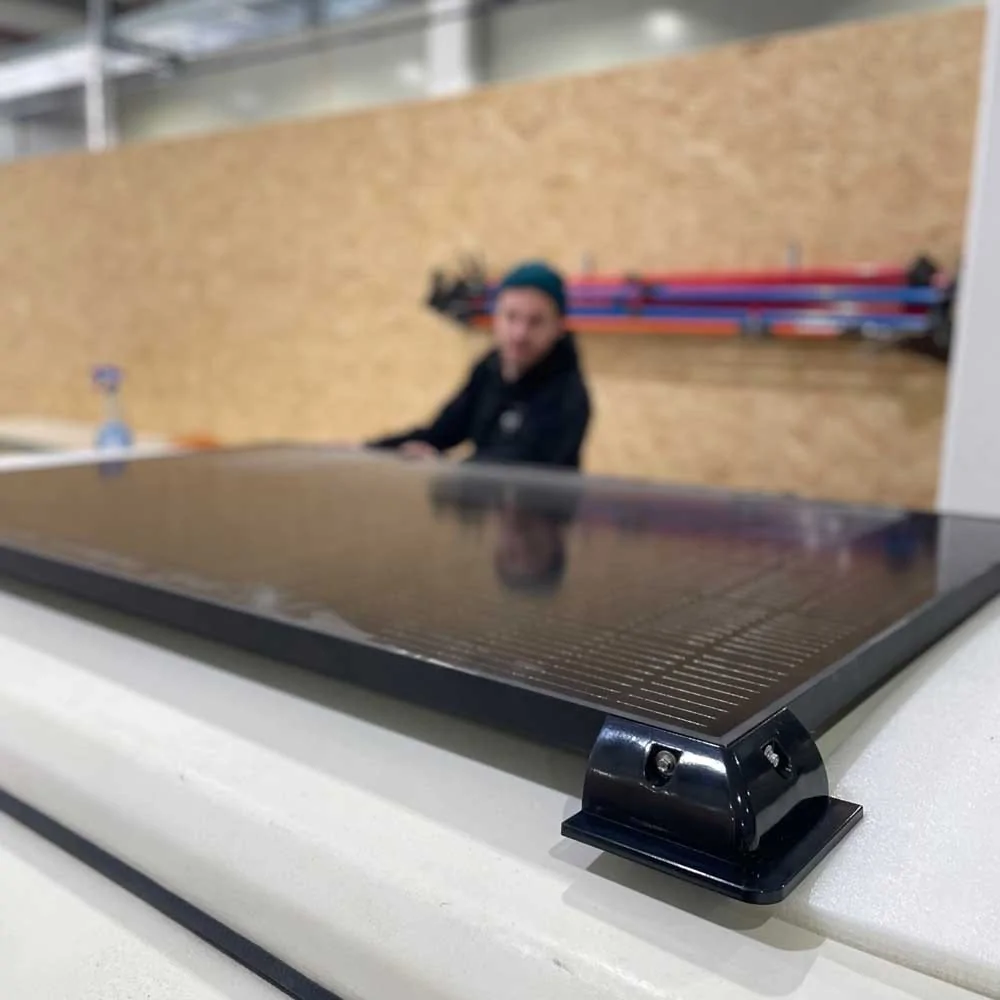

Camper and motorhome.
9 kg on the roof that go unnoticed — because the panel in black simply belongs there. No foreign element that visually disrupts the carefully planned interior build.
Sailing yacht and motorboat.
IP65, safety glass, aluminium frame: three properties that are non-negotiable at sea. The SOLTURA 160W Pro delivers what water, salt and sun demand.
Balcony power station.
Black panels disappear on dark railings and light facades alike. Anyone installing a balcony power station that shouldn't become a topic of conversation with their landlord chooses black.
Pro Series. By AutoSolar.
The SOLTURA 160W Pro is part of the AutoSolar Pro Series — a line developed for people who make no second choice when it comes to energy. Manufactured on precision machines, tested to our quality standards, built for long-term use.
Design that doesn't fade. Performance that doesn't fade. Pro Series by AutoSolar.
Produkt-Nummer
mono160b
Scope of delivery
1x 160W solar panel with 90cm cable and MC4 connector pre-assembled

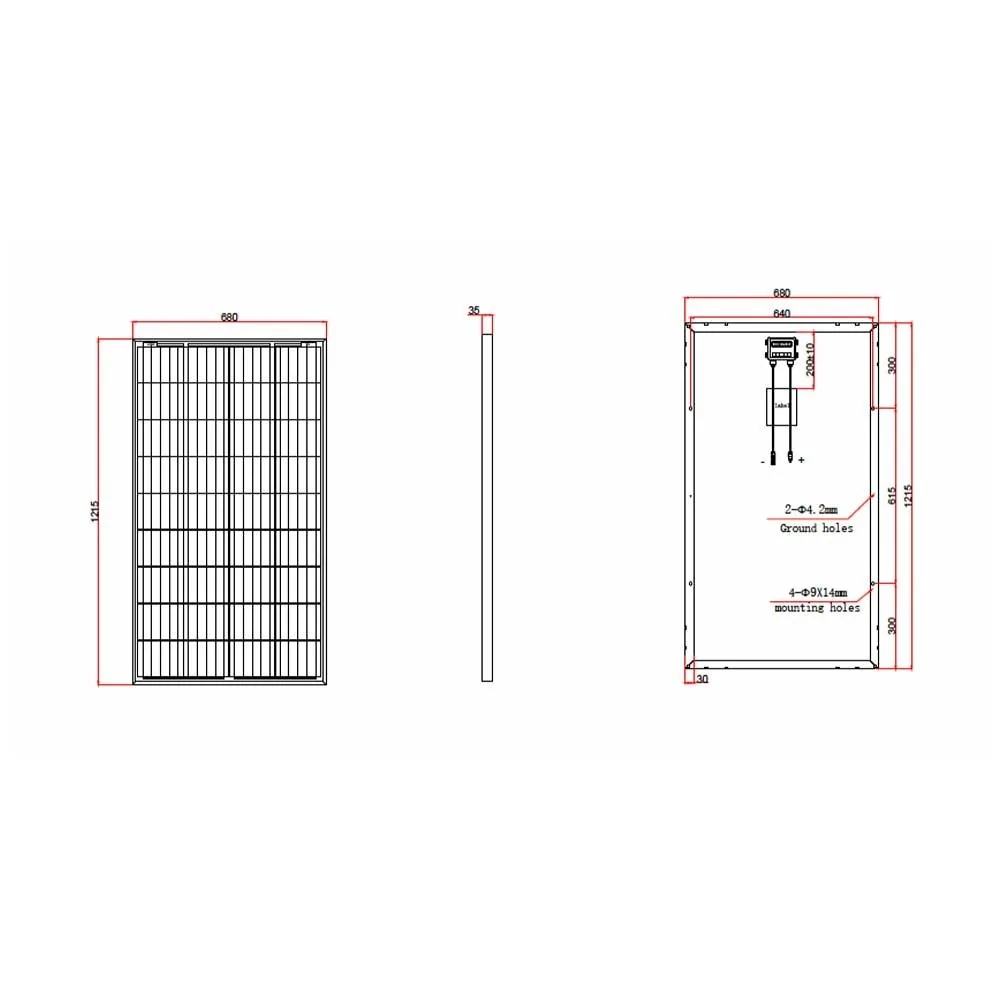

Size (length x width x height)
Weight
9 kg
Solar module type
Monocrystalline with aluminum frame
Short-circuit current (Isc)
8.8 A
Open circuit voltage (Voc)
24 V
Maximum power (Pmax)
160 watts
Bei 150W kann man ca. 600-700Wh pro Tag produzieren.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Wir empfehlen, dass Sie nur Solarmodule derselben Grösse zusammen mit einem Regler betreiben, da es sonst zu Verlusten bei den grösseren Modulen kommt.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
Bei unterschiedlicher Ausrichtung sollten die Solarmodule parallel zusammengeschlossen werden. Damit bei Abschattung nicht beide Solarmodule an Leistung verlieren.
Durch die Verschattung produziert die Solaranlage weniger Energie. Bei Standorten, bei dem ein Modul verschattet werden kann, sollten die Solarmodule parallel zusammengeschlossen werden.
Bei der Serienschaltung erhöht sich die Spannung der Solaranlage. Dies hat den Vorteil, dass auch bei schlechtem Wetter genügend Spannung vorhanden ist, damit der Laderegler optimal arbeiten kann. Serienschaltung kann nur mit einem MPPT-Laderegler gemacht werden.
