This pack contains
Produce your own electricity

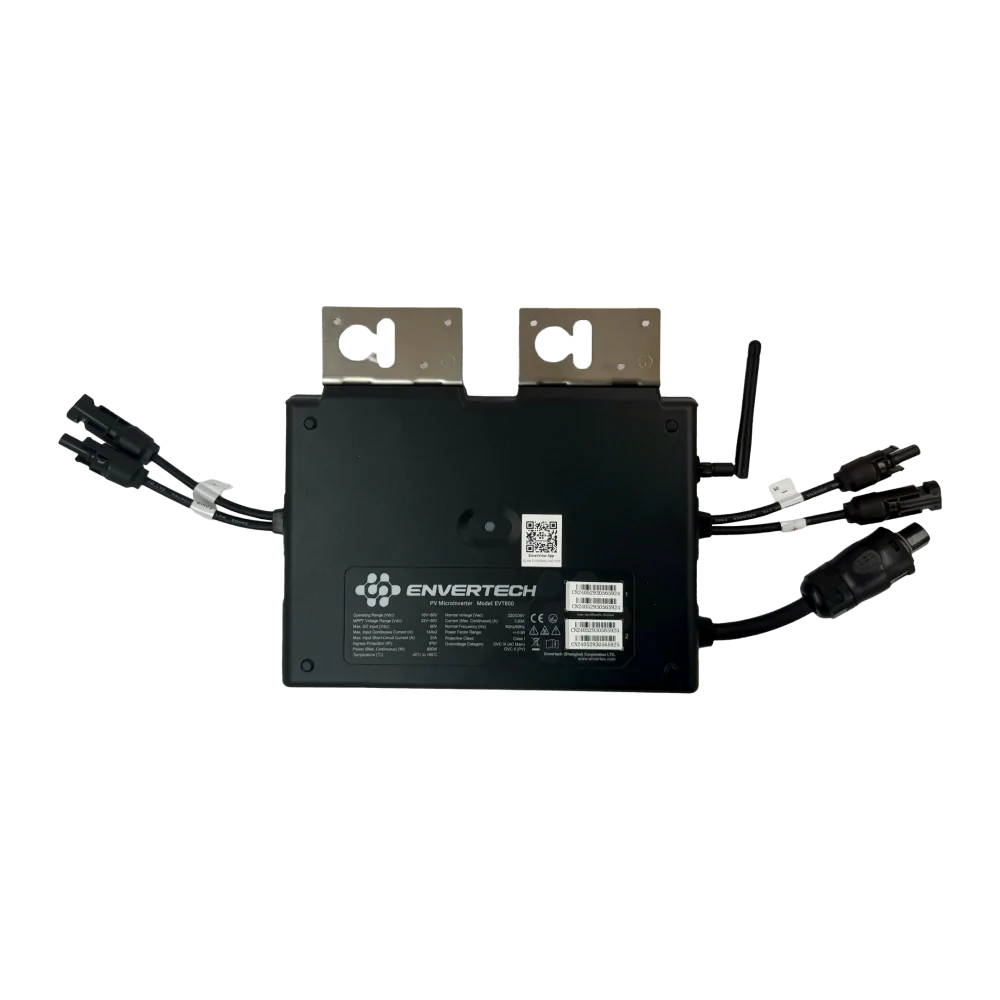

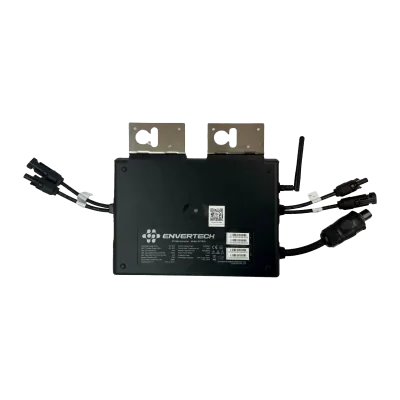

With our new microinverter, you can easily produce your own electricity. Simply connect two compatible solar panels and you're good to go. Thanks to cloud connectivity, you can always monitor your electricity production via the app (for Android and iOS ).

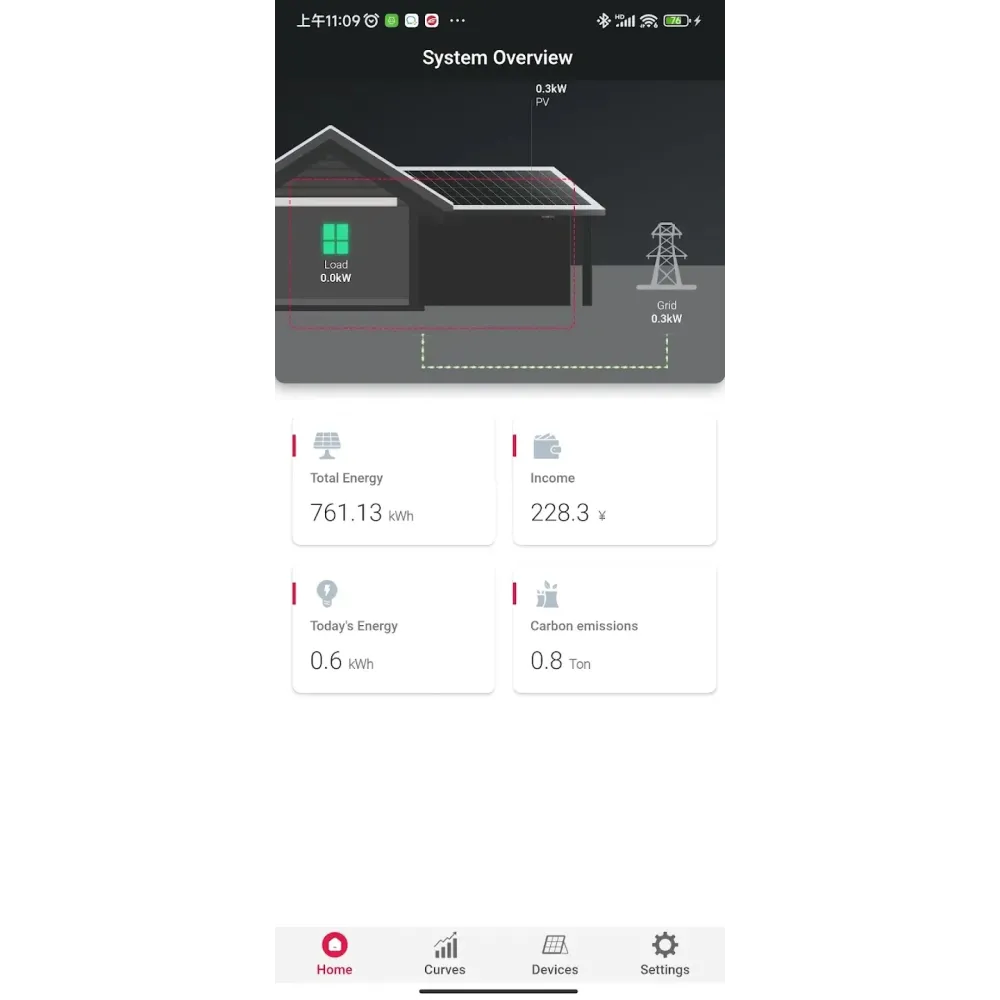

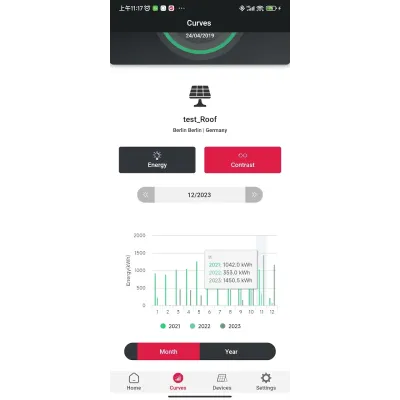

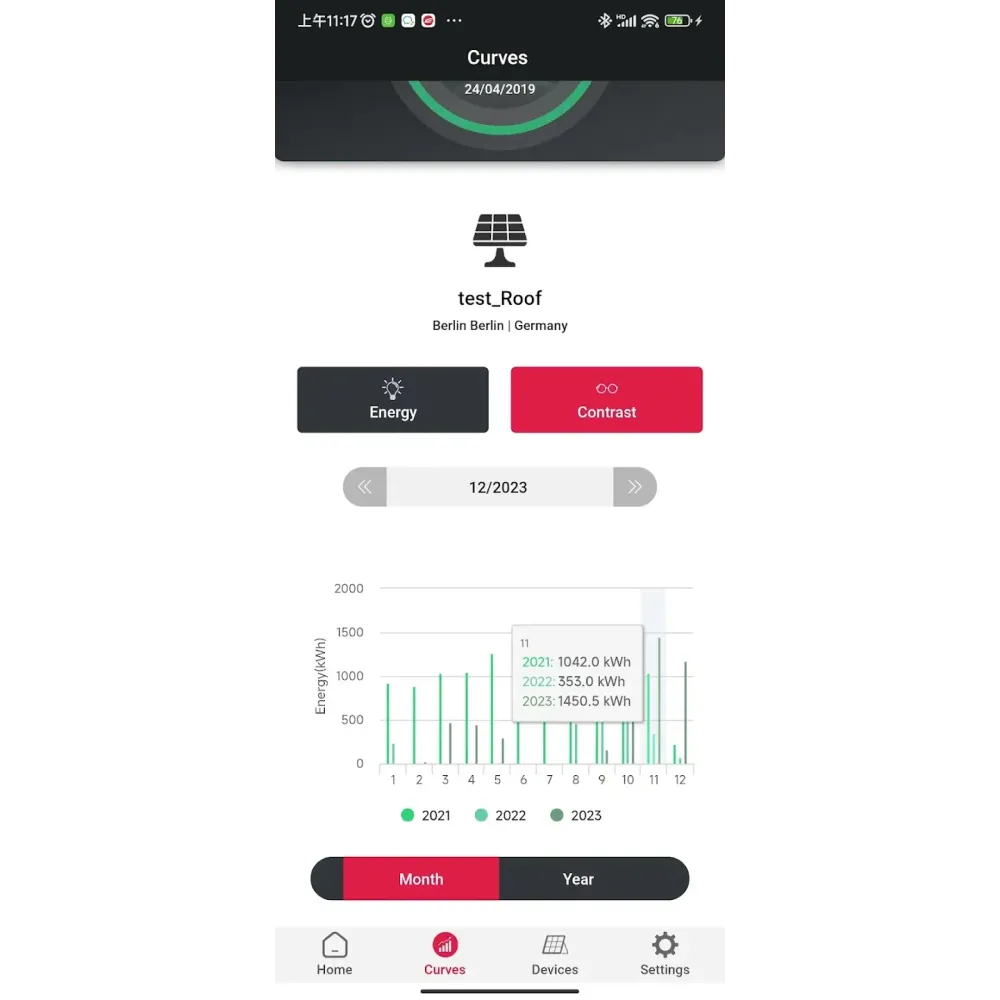

Free app
The free app provides you with information about your current output, daily production, and total production for the month and year. This way you always have an overview of how much electricity you are currently producing and have produced so far.
Maximum performance
Our microinverter is limited to a maximum permitted output of 600 watts. This allows you to connect it to a protected outdoor socket and feed your electricity into the grid without additional permits.
The larger the connected solar panel, the faster and more frequently you can utilize the maximum output of 600 watts. Here you'll find our balcony power plants , which include everything you need to get started right away.
Weatherproof
The inverter is IP67 rated, meaning it can be easily installed outdoors. It's also unaffected by fluctuating temperatures, as its operating temperature range is between -45°C and +65°C. So it won't mind being left outside.
Recommended power range: 180 – 550 W per input
AC voltage range: 189 – 260 W
AC max. current: 3.63 A

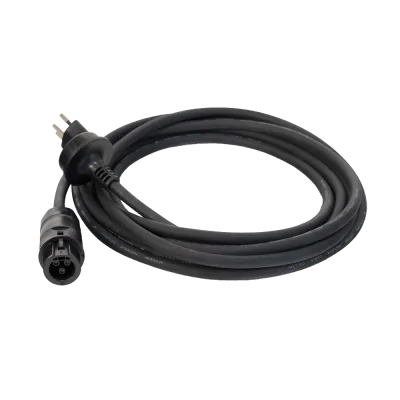

Information about the connection cable
Connection cable length: 5 meters
Connector on inverter side: Betteri
Mains connector: T13 (IP55)
Produkt-Nummer
evt800-kabel
Scope of delivery
including connection cable
Produkt-Nummer
kabel-evt
Protection certification
IP-55
Length of connection cable
5 m
Produkt-Nummer
evt800
length
264 mm
Width
194 mm
Height
35.5 mm
Weight
4.1 kg
Protection certification
IP67
max. idle current PV
25 A
Maximum Power Voltage (Vpm)
60 V
MPPT voltage range
22V – 50V
PV input voltage
16V – 60V
max. input current
14 A per channel
Continuous power
180W – 550W per input
Operating temperature
-40°C – +65°C
