200W solar system with 20A PWM charge controller

259.00
  • Pack
More than 10 pieces in stock.
Delivered within 24 hours.
A complete off-grid system kit for charging a 12V battery. The 200-watt solar kit is powerful enough to charge a 200Ah battery. read more
Add to wishlist
Compare
Compare Products



Swiss online shop



Encrypted payment



FREE shipping within 24 hours



Call us: 044 999 01 01

This pack contains

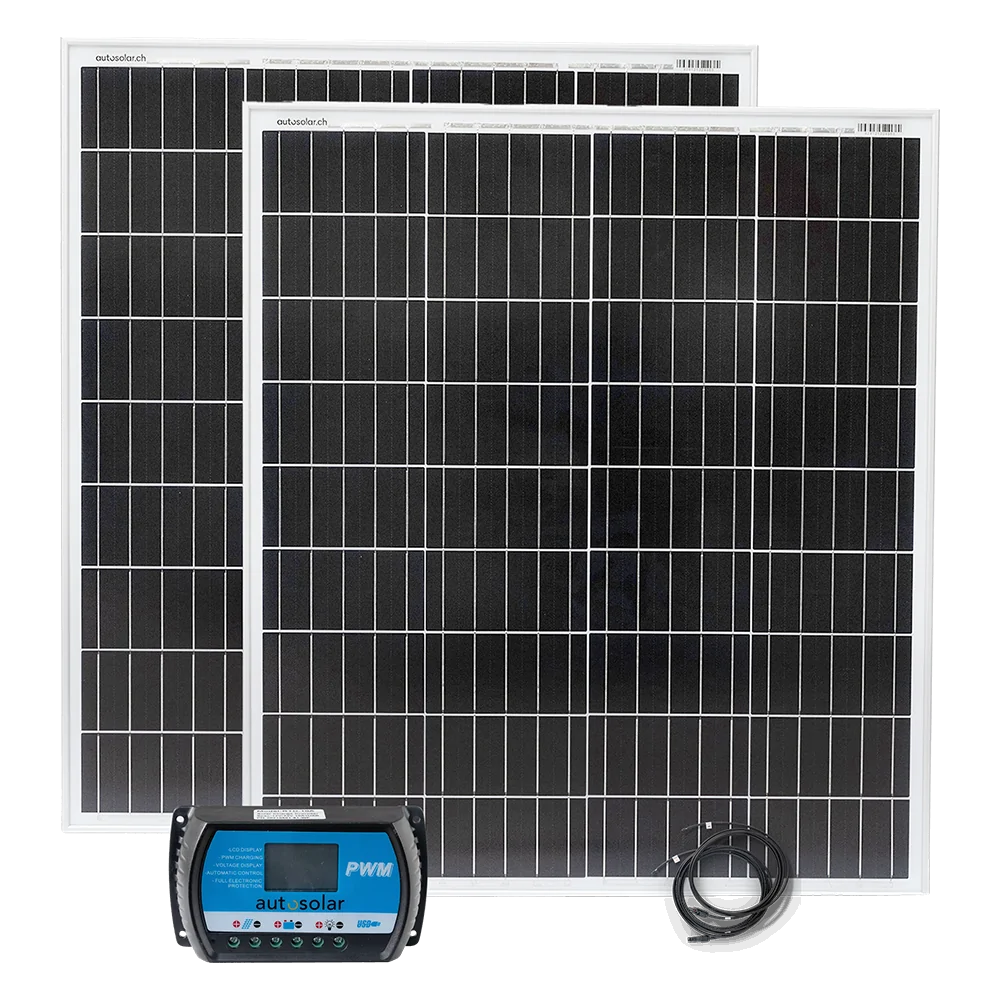

This set includes two monocrystalline 100W solar panels, a charger with USB port, and the necessary cables and plugs to charge a 12V battery.

The battery is not included in this set.

Produkt-Nummer

set200

Product line

Simply

With battery

No

With inverter

No

Includes mounting hardware

No

Solar module type

Monocrystalline with aluminum frame

Area of application

For motorhomes

Area of application

For garden shed

Area of application

For alpine hut / mountain pasture

Consumer (what is to be operated?)

Radio / Music

Consumer (what is to be operated?)

charging mobile phone

Consumer (what is to be operated?)

water pump

Consumer (what is to be operated?)

Fans

Consumer (what is to be operated?)

12V refrigerator

Consumer (what is to be operated?)

Light

System voltage

12 V

Daily yield (Wh/day)

900 Wh

Maximum power (Pmax)

200 watts

Number of modules

2 modules

Charge controller suitable for

AGM batteries

guarantee

2-year product warranty

guarantee

20-year performance guarantee (80%)

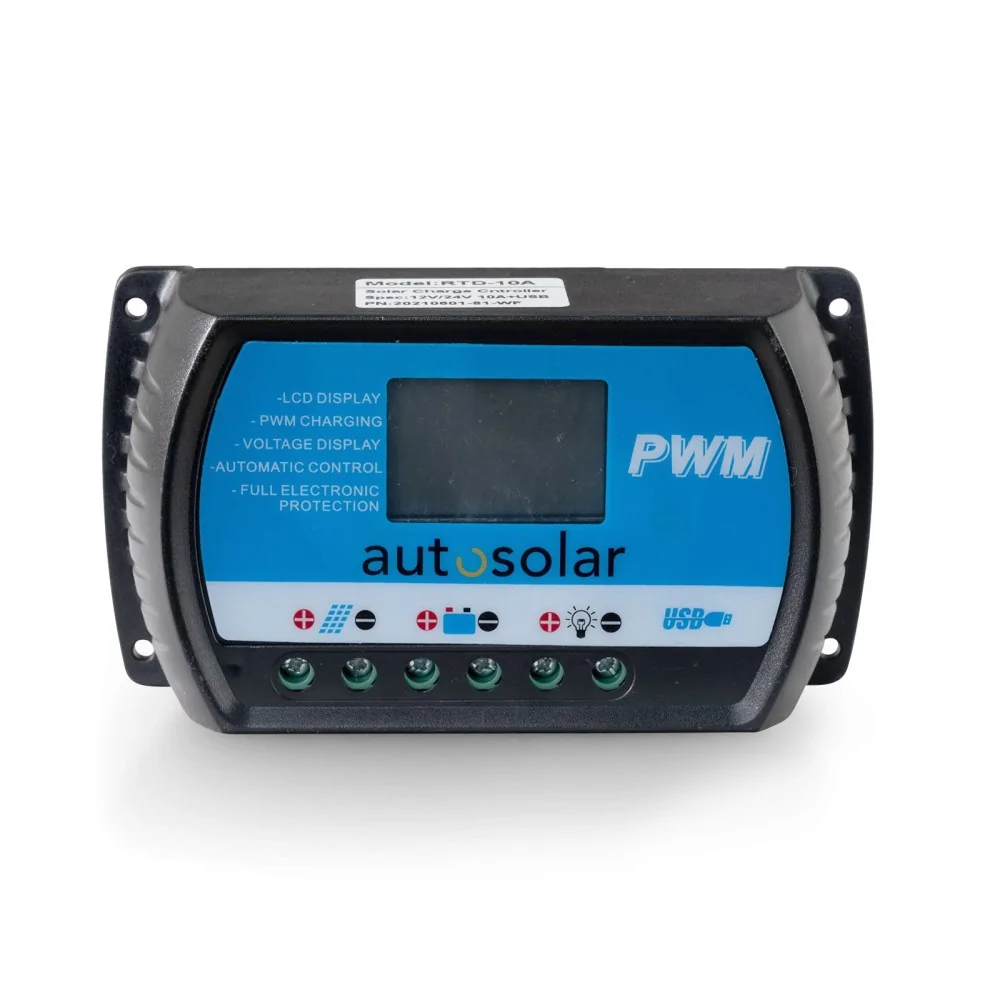

Solarcharger PWM 20A mit USB

Produkt-Nummer

pwm20A

Size (length x width x height)

150x78x35mm

Weight

0.150kg

Battery type

Suitable for lead-acid / AGM / gel batteries

Tension

Suitable for 12V and 24V

PV input voltage

12V to 18V

PV input voltage

24V to 37V

Charging current

20A

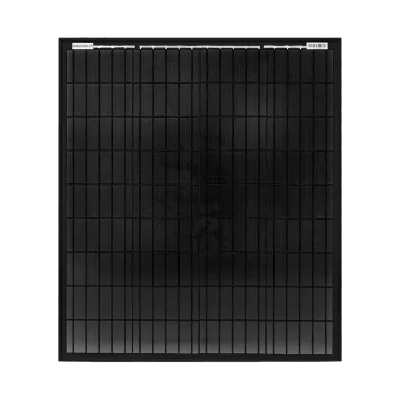

AutoSolar 100 Watt Solar Panel

Produkt-Nummer

mono100

Scope of delivery

1x solar panel with 90cm solar cable and MC4 connector pre-assembled

Size (length x width x height)

Weight

7.2 kg

Number of cells

36

Maximum System Voltage

1000 VDC

Short-circuit current (Isc)

6.07 A

Maximum Power Current (Imp)

5.62 A

Maximum Power Voltage (Vpm)

17.8 V

Open circuit voltage (Voc)

22.3 V

Maximum power (Pmax)

100 W

guarantee

2-year product warranty

guarantee

20-year performance guarantee (80%)

Y-Kabel Verteiler-Set MC4 Solarstecker für Solarpanel IP67 Wasserdicht

Produkt-Nummer

y-mc4

Ring cable lugs copper 60A 9mm ring for M8

Produkt-Nummer

rks

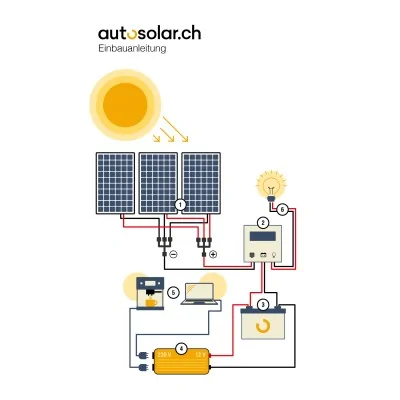

German installation and operating instructions for a solar system for 2 solar modules - parallel

Produkt-Nummer

bed2

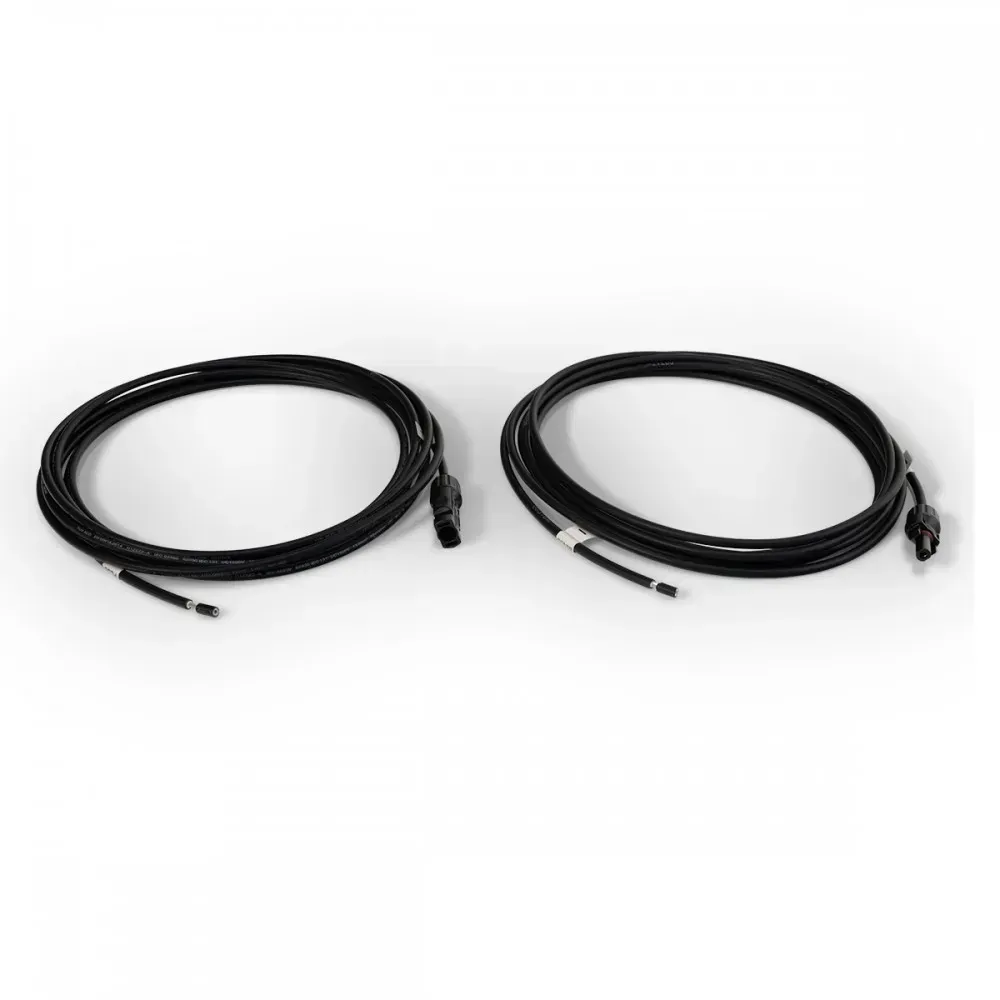

Solar cable 2 x 5 meters at 4mm² incl. solar connector (MC4 compatible)

Produkt-Nummer

kabel4mmMC4

    Kann man eine Solaranlage individuell zusammenstellen?

    Wir können gerne ein passendes Set für die jeweiligen Bedürfnisse zusammenstellen.


    Kann ich die Solaranlage selber installieren?

    Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.


    Wie teuer ist die Montage bei einer Garage machen zu lassen?

    Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.


    Wie viel Ertrag hat die Solaranlage im Winter?

    Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
