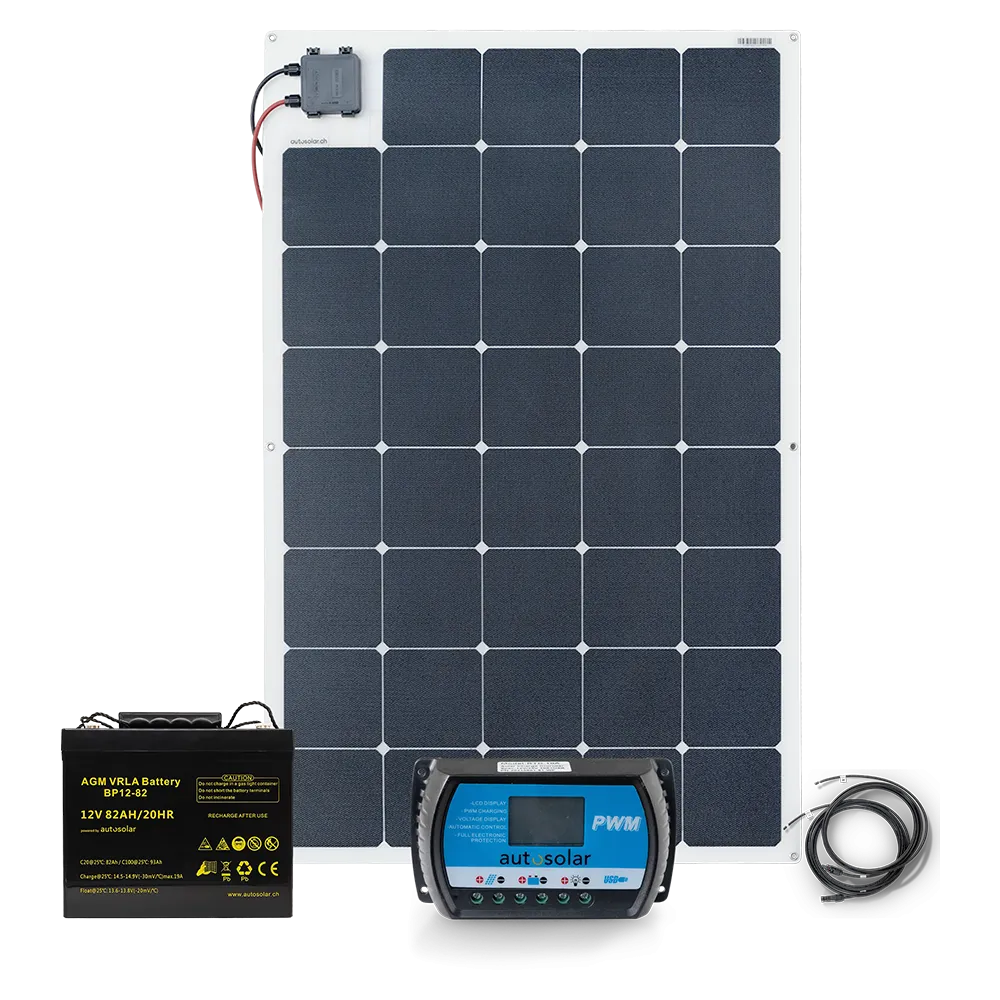

145W flexible solar kit with 82Ah battery

469.00
  • Pack
More than 10 pieces in stock.
Delivered within 24 hours.
A complete system kit, including charger, cables, battery, and a flexible 140W solar panel. The 140-watt solar system is powerful enough for approximately 620Wh per day. read more
Add to wishlist
Compare
Compare Products



Swiss online shop



Encrypted payment



FREE shipping within 24 hours



Call us: 044 999 01 01

This pack contains

This set includes a flexible 140W solar panel, a charger, an 82Ah AGM battery and the necessary cables and plugs to charge the 12V battery.

The battery is included in this set.

Produkt-Nummer

set140flexba

Product line

Per

With battery

Yes

Battery type

AGM / GEL

With inverter

No

Includes mounting hardware

No

Solar module type

flexible with SunPower cells

Area of application

For motorhomes

Area of application

For ship

Consumer (what is to be operated?)

Radio / Music

Consumer (what is to be operated?)

water pump

Consumer (what is to be operated?)

Fans

Consumer (what is to be operated?)

TV

Consumer (what is to be operated?)

12V refrigerator

Consumer (what is to be operated?)

Light

System voltage

12 V

Daily yield (Wh/day)

720 Wh

Maximum power (Pmax)

140 W

Number of modules

1 module

Charge controller suitable for

AGM batteries

guarantee

2-year product warranty

guarantee

20-year performance guarantee (80%)

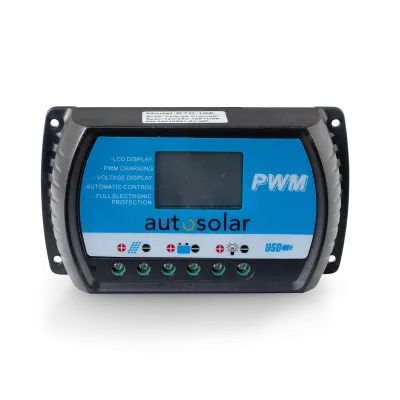

Solarcharger PWM 20A mit USB

Produkt-Nummer

pwm20A

Size (length x width x height)

150x78x35mm

Weight

0.150kg

Battery type

Suitable for lead-acid / AGM / gel batteries

Tension

Suitable for 12V and 24V

PV input voltage

12V to 18V

PV input voltage

24V to 37V

Charging current

20A

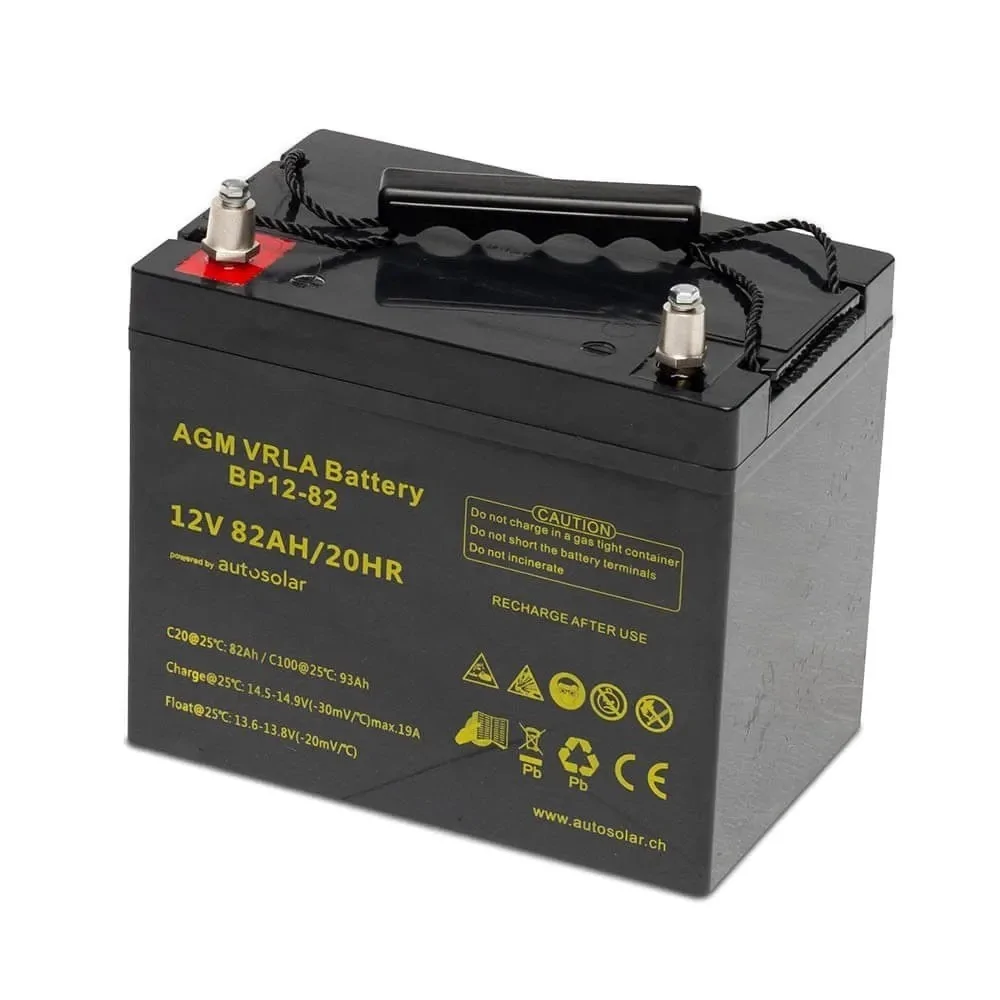

82 Ah Solarbatterie AGM - absolut wartungsfrei - Deep Cycle

Produkt-Nummer

agm82

Size (length x width x height)

260 x 170 x 230 mm

Weight

21.7 kg

Battery type

AGM

Tension

12 V

Capacity (C20)

82Ah

guarantee

2-year product warranty

Ring cable lugs copper 60A 9mm ring for M8

Produkt-Nummer

rks

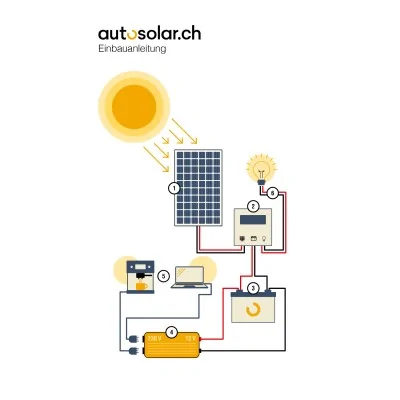

German installation and operating instructions for a solar system for 1 solar module

Produkt-Nummer

bed1

Solar cable 2 x 5 meters at 4mm² incl. solar connector (MC4 compatible)

Produkt-Nummer

kabel4mmMC4

145W solar panel semi flexible

Produkt-Nummer

flex145

Short-circuit current (Isc)

6.35 A

Maximum Power Current (Imp)

6.01 A

Maximum Power Voltage (Vpm)

24.2 V

Open circuit voltage (Voc)

28.4 V

Maximum power (Pmax)

145 W

    Kann man eine Solaranlage individuell zusammenstellen?

    Wir können gerne ein passendes Set für die jeweiligen Bedürfnisse zusammenstellen.


    Kann ich die Solaranlage selber installieren?

    Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.


    Wie teuer ist die Montage bei einer Garage machen zu lassen?

    Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.


    Wie viel Ertrag hat die Solaranlage im Winter?

    Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
