This pack contains
This set includes a flexible 100W solar panel, an MPPT charger and the necessary cables to charge the 55Ah lithium battery.
Produkt-Nummer
set100-230li
With battery
Yes
Battery type
lithium
With inverter
Yes
Includes mounting hardware
Yes
Solar module type
Monocrystalline with aluminum frame
Area of application
For motorhomes
Area of application
For ship
Consumer (what is to be operated?)
Radio / Music
Consumer (what is to be operated?)
charging mobile phone
Consumer (what is to be operated?)
water pump
Consumer (what is to be operated?)
Fans
Consumer (what is to be operated?)
TV
Consumer (what is to be operated?)
charging laptop
Consumer (what is to be operated?)
12V refrigerator
Consumer (what is to be operated?)
Light
Maximum power (Pmax)
100 W
guarantee
2-year product warranty
Produkt-Nummer
mono100
Scope of delivery
1x solar panel with 90cm solar cable and MC4 connector pre-assembled
Size (length x width x height)
Weight
7.2 kg
Number of cells
36
Maximum System Voltage
1000 VDC
Short-circuit current (Isc)
6.07 A
Maximum Power Current (Imp)
5.62 A
Maximum Power Voltage (Vpm)
17.8 V
Open circuit voltage (Voc)
22.3 V
Maximum power (Pmax)
100 W
guarantee
2-year product warranty
guarantee
20-year performance guarantee (80%)
Produkt-Nummer
dd2-w
Area of application
For motorhomes
Area of application
camper

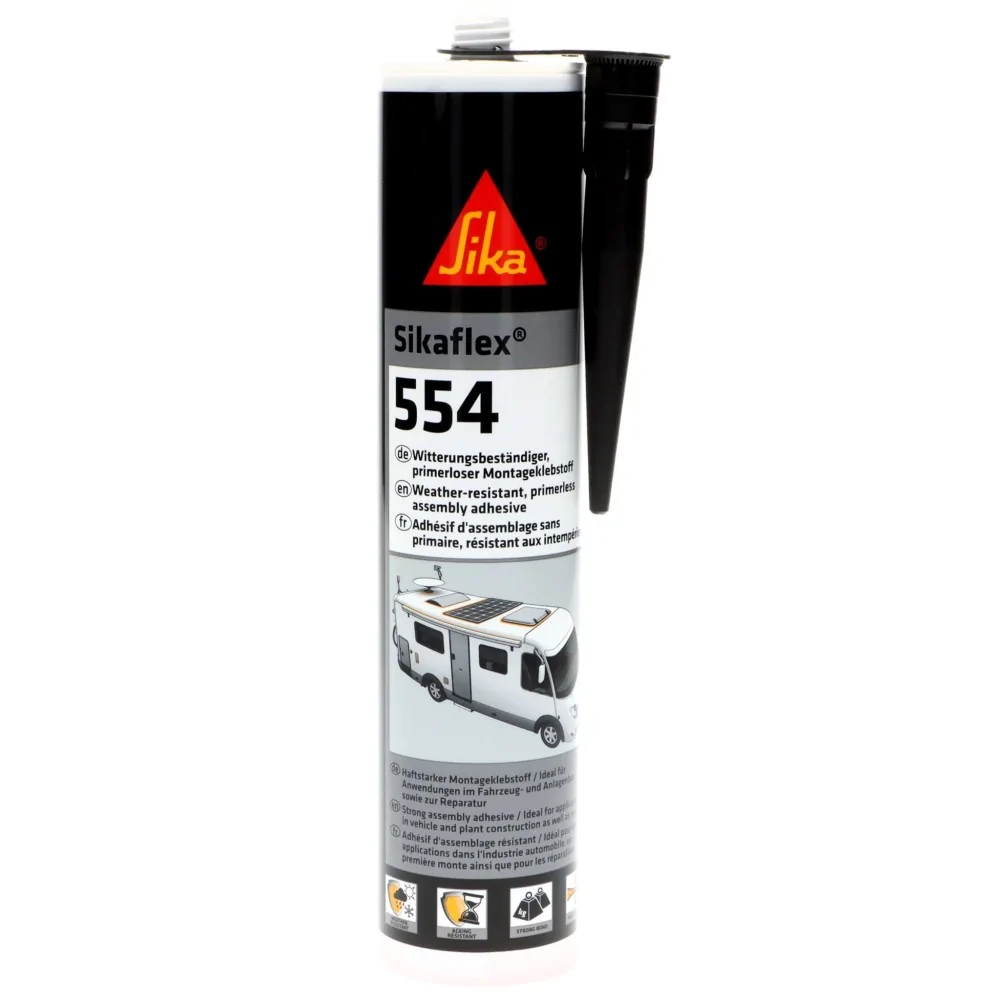

Produkt-Nummer
sika554
Area of application
For motorhomes
Area of application
camper

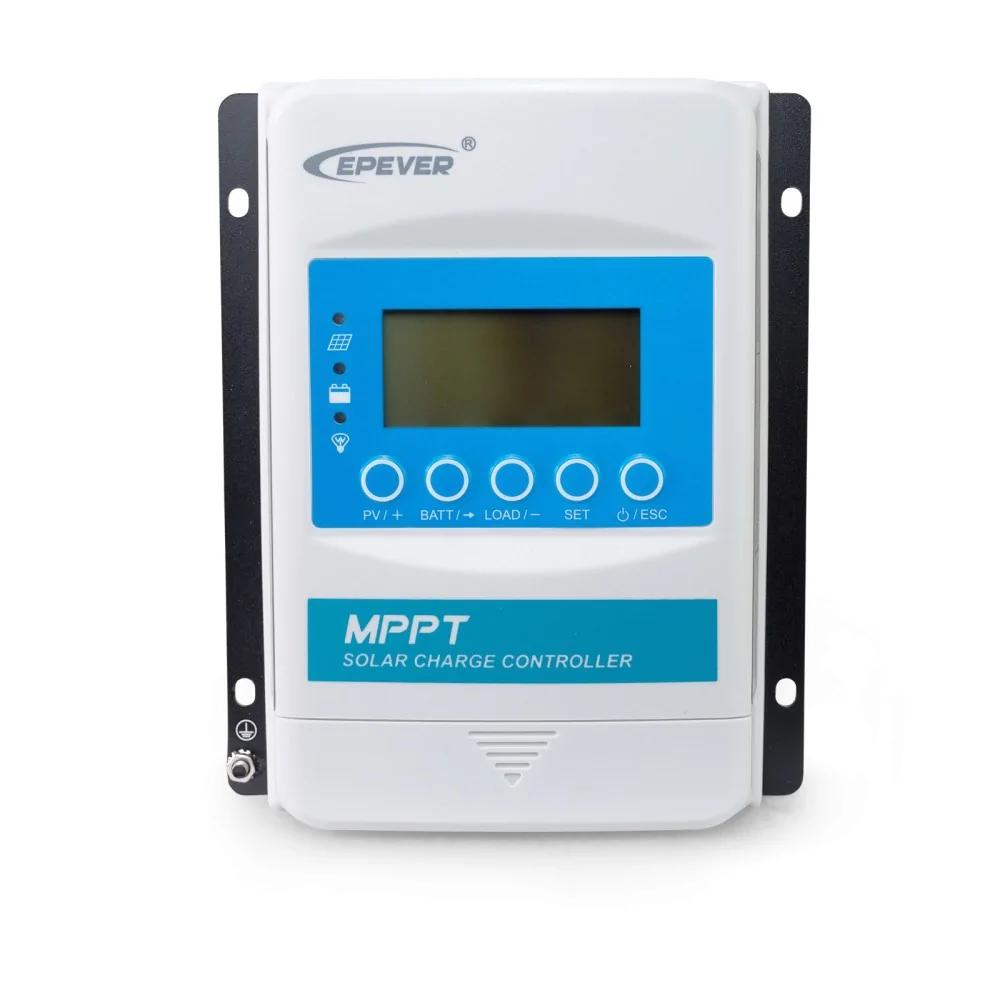

Produkt-Nummer
mppt10A
Size (length x width x height)
217×158× 56.5mm
Weight
0.95kg
Battery type
Suitable for lead/AGM/Gel/Lithium
Tension
12V / 24V
PV input voltage
100V
Charging current
10A
guarantee
2 years
Produkt-Nummer
eck4
Area of application
For motorhomes
Area of application
camper

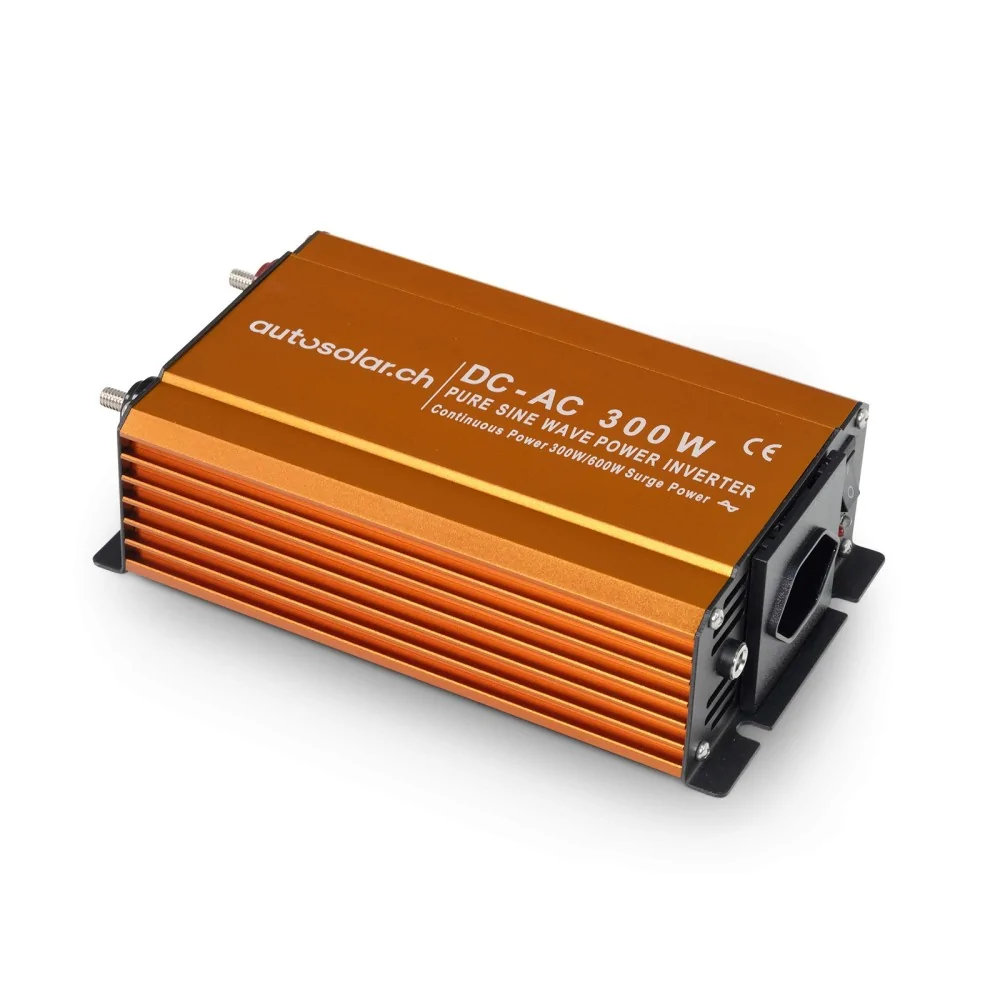

Produkt-Nummer
inv300wSin
Size (length x width x height)
187x110x52 mm
Weight
0.81kg
Tension
12 V
Top performance
600W
Continuous power
300W
With network priority switching (bypass)
No
guarantee
2 years

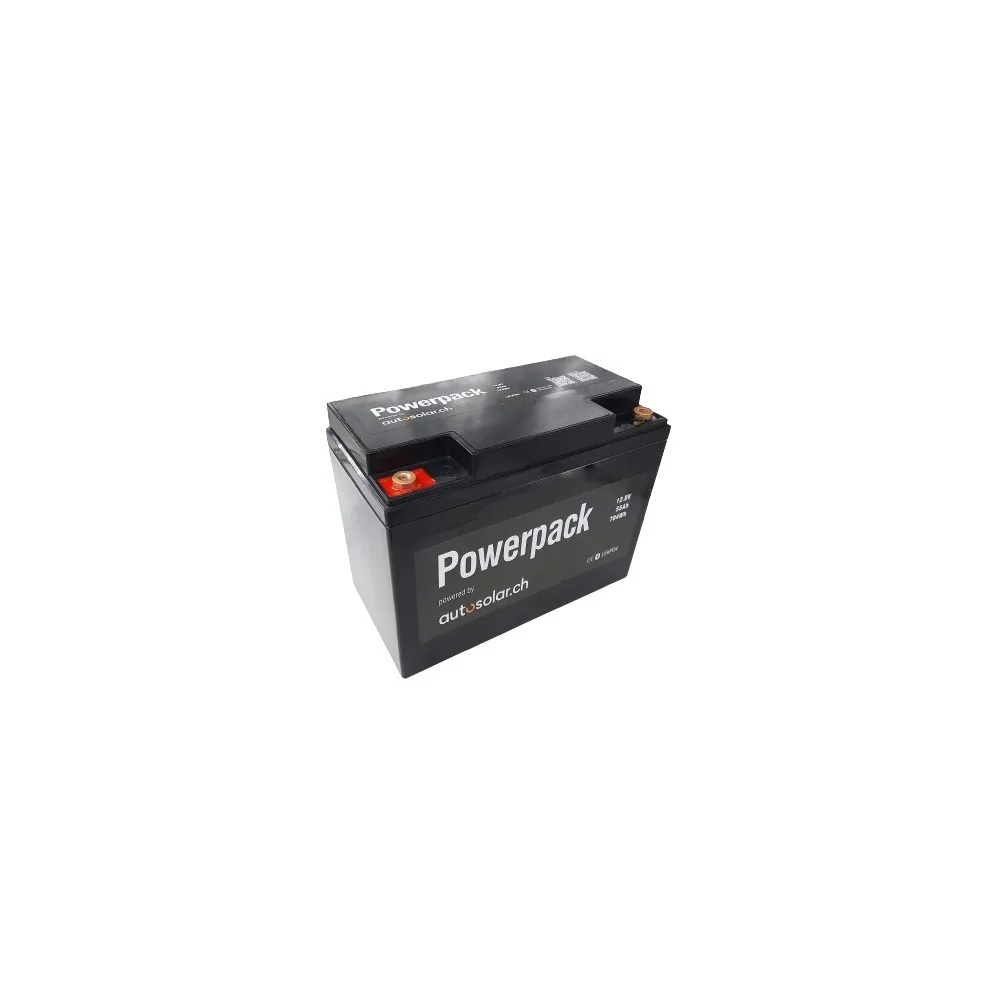

Produkt-Nummer
Li55ah
Size (length x width x height)
260 x 133 x 205mm
Weight
6.2
Battery type
lithium
Tension
12.8 V
Capacity (10h):
55 Ah
guarantee
8-year product warranty
Produkt-Nummer
rks
Produkt-Nummer
bed1
Produkt-Nummer
kabel4mmMC4
Wir können gerne ein passendes Set für die jeweiligen Bedürfnisse zusammenstellen.
Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
