This pack contains
With the 1600W photovoltaic system complete package for roof mounting, you can transform your holiday home, alpine cabin, or weekend house into your own little power plant. The set includes everything you need – from the mounting hardware for the roof to the inverter, which you connect directly to your outdoor socket. Simply plug it in, switch it on, and your own solar power will start flowing – without any registration or complicated installation.
Installation is straightforward: The solar panels are securely attached to the roof using the included hardware. Then you simply connect the cables, and your house is supplied with clean electricity.
With an annual output of around 600 kWh, your system produces enough electricity to power numerous appliances in your holiday home – from the refrigerator to the lighting. At an electricity price of CHF 0.29/kWh, you save approximately CHF 174 per year . This means your system will pay for itself in about 8 to 9 years , and with a lifespan of 15 to 20 years, it will continue to produce free electricity for you for a long time to come.

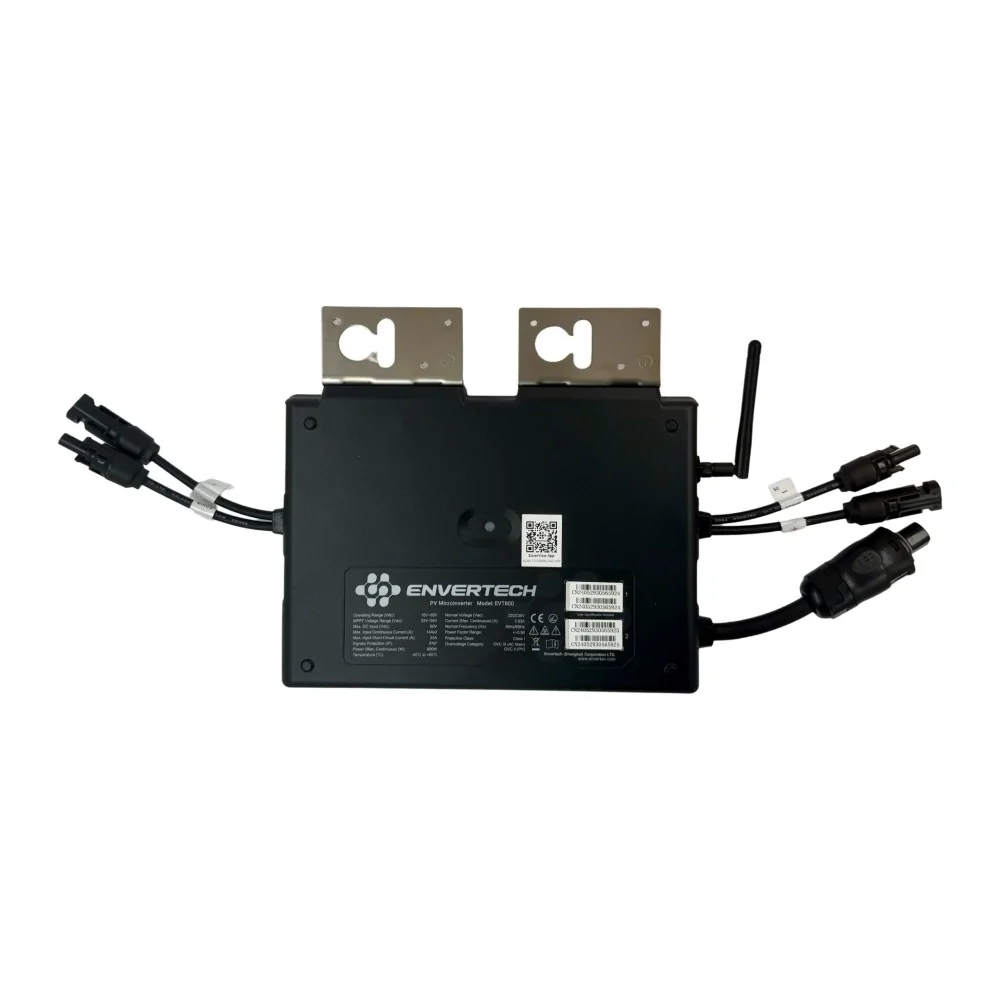

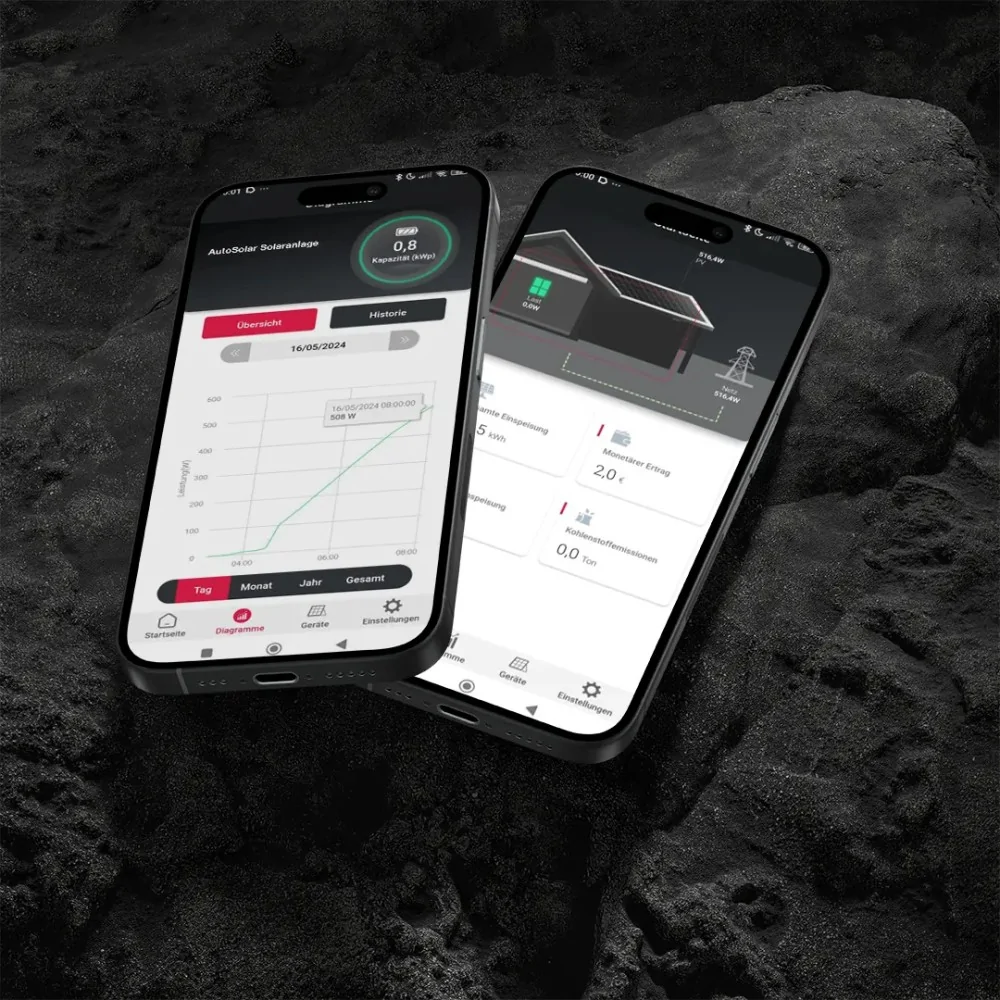

The inverter included in the set complies with all Swiss legal requirements and comes with an official declaration of conformity . You can also conveniently monitor your generated electricity via an app (for iOS and Android) – so you can see at any time how much energy your system is producing and how much you've already reduced your electricity bill.
With the complete photovoltaic system package from AutoSolar, you're perfectly equipped for self-sufficient living in your holiday home. Plug it in, and you're good to go – the sun will work for you.

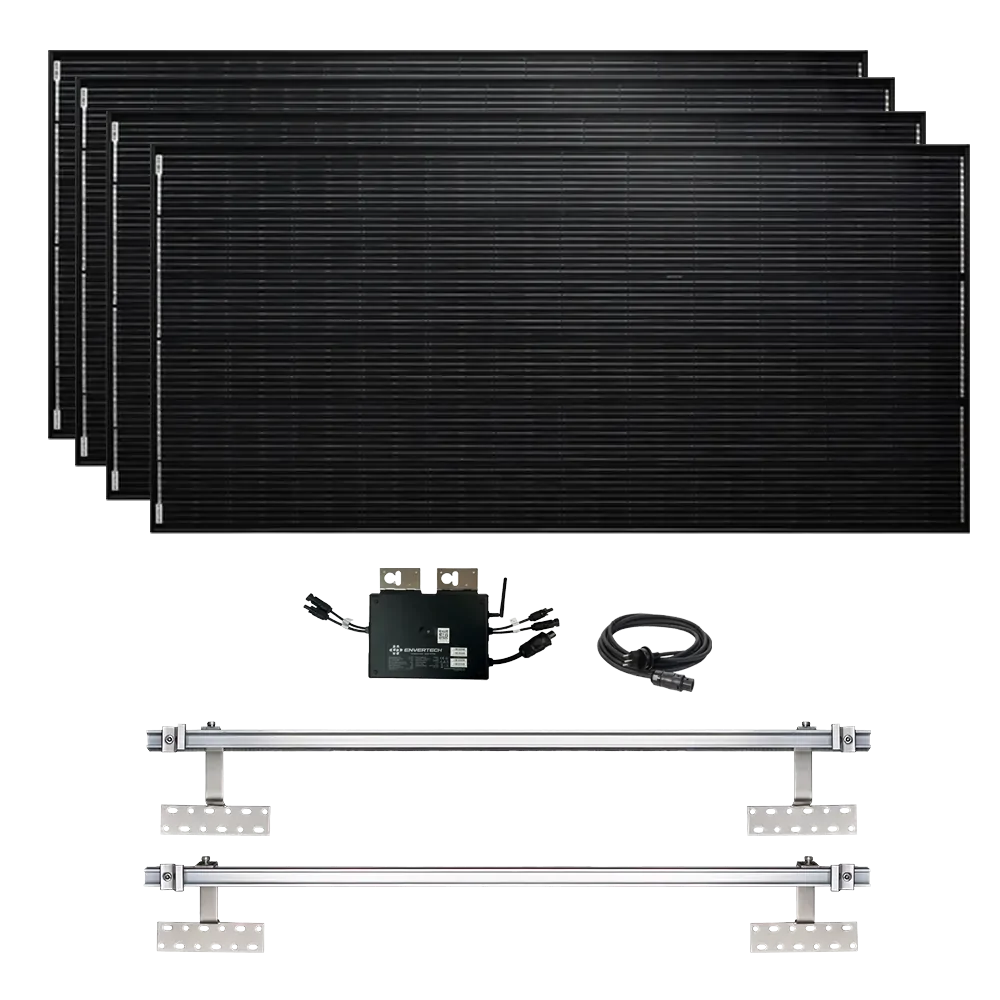

Contents:

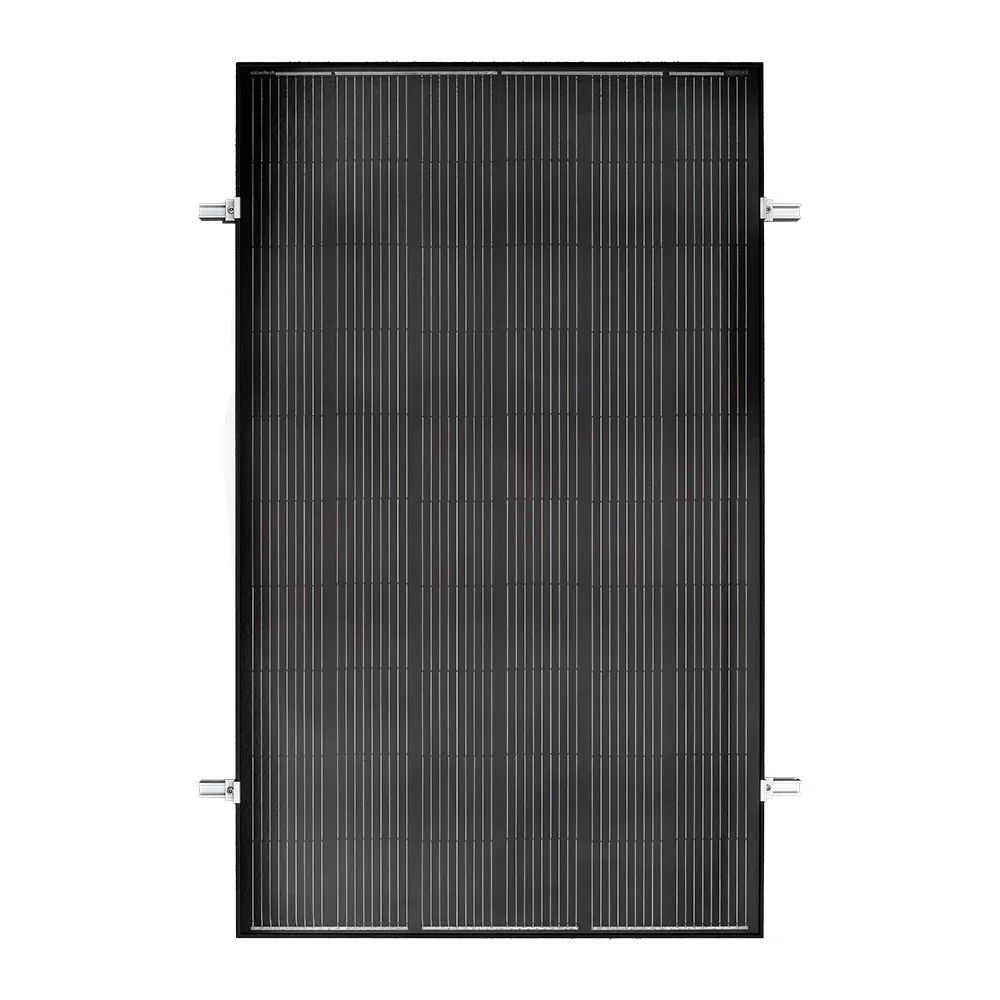

4x AutoSolar 400 Watt solar panels
Produkt-Nummer
setph1600
length
198 cm
Width
100 cm
Height
4 cm
Weight
22.5 kg
required area
8 m2
Battery / Rechargeable Battery Type
Direct feed
Solar module type
Monocrystalline with aluminum frame
Number of cells
60
Output power
600 watts
Maximum power (Pmax)
1600 watts
Number of modules
4 modules
Solar system type
Balcony power plant
Solar cell type
Monocrystalline
Solar panel design
Rigid
App available
Yes, via Wi-Fi or Bluetooth.
Plug type
MC4
AC plug type
Swiss 3-pin plug IP55
Produkt-Nummer
kabel6mmMC4
Produkt-Nummer

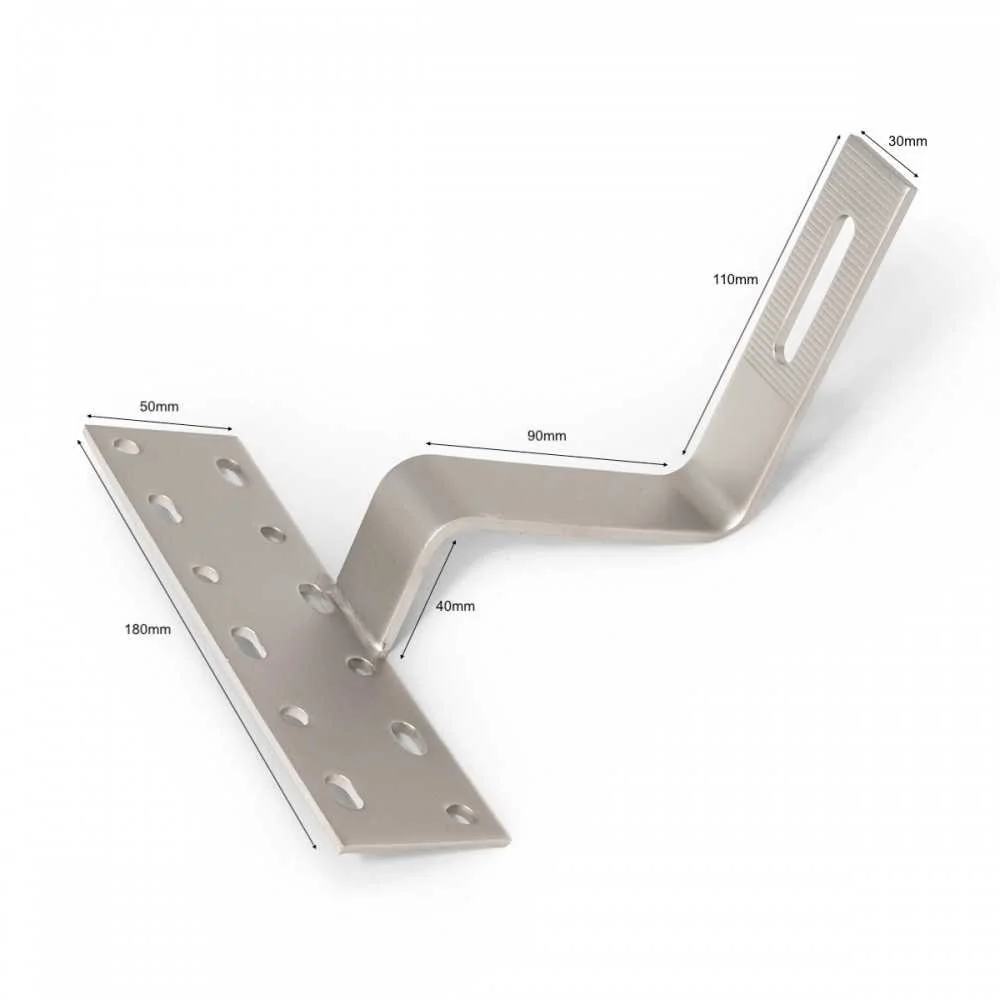

ziegel4-40
Area of application
for roof tiles
Area of application
For garden shed
Area of application
For alpine hut / mountain pasture
Produkt-Nummer
mono400b
Scope of delivery
1x 400W solar panel with 90cm cable and MC4 connector pre-assembled
Size (length x width x height)
Weight
22.5 kg
Short-circuit current (Isc)
10.91 A
Open circuit voltage (Voc)
46.6 V
Maximum power (Pmax)
400 W
Produkt-Nummer
evt800
length
264 mm
Width
194 mm
Height
35.5 mm
Weight
4.1 kg
Protection certification
IP67
max. idle current PV
25 A
Maximum Power Voltage (Vpm)
60 V
MPPT voltage range
22V – 50V
PV input voltage
16V – 60V
max. input current
14 A per channel
Continuous power
180W – 550W per input
Operating temperature
-40°C – +65°C
Wir können gerne ein passendes Set für die jeweiligen Bedürfnisse zusammenstellen.
Die Anlagen sind so gefertigt, dass die Solaranlagen selber installieren werden können. Bei jeder Solaranlage ist eine Einbauanleitung dabei.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
