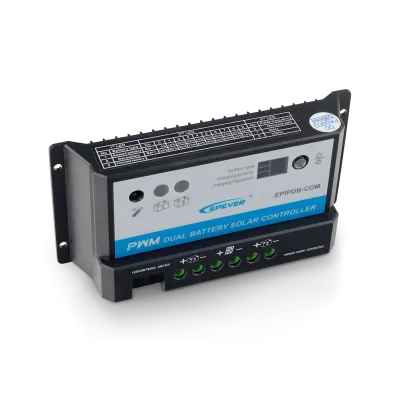

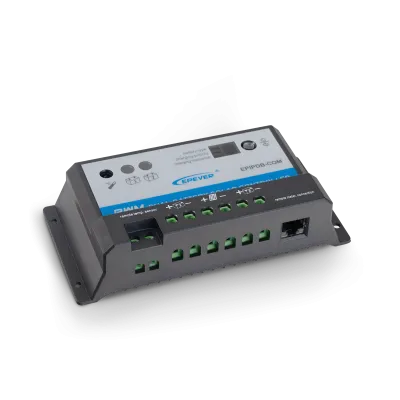

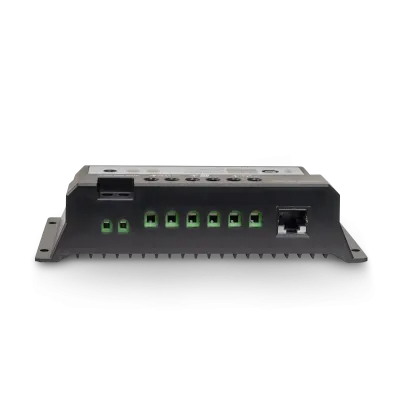

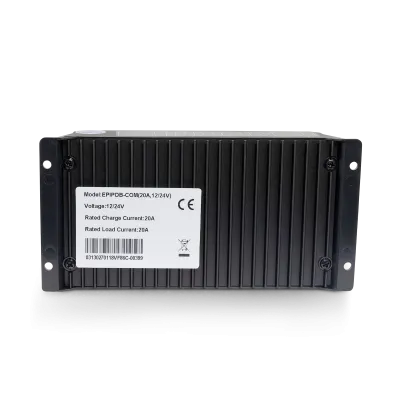

Dual-Laderegler PWM 20A für 2 Batterien - Ladekontroller

DUAL-20A PWM solar charge controller - for two batteries from 12V to 24 volts

Up to 320 watts at 12V, up to 480 watts of module power at 24 volt battery voltage.

The charge controller is connected between the solar module and the battery and thus controls the charging process so that the batteries are always optimally charged.

PWM charge controller The current operating status is determined by a resistor and the charging process is then optimized using the principle of pulse width modulation. ua , among other things, a very low voltage drop (maximum 0.24V) and own current requirement (maximum 0.02A) is achieved.
Therefore, PWM charge controllers are significantly more effective than simple linear charge controllers.
The built-in microprocessor charges the battery gently, thereby guaranteeing a long service life for your solar batteries.

The charge status and charging via the solar module can be seen on the LEDs.

Overcharging of the batteries is prevented because the charge controller ends the charging process when full capacity is reached.

Suitable for acid, AGM and gel batteries . The integrated microprocessor controls the switching thresholds of the charging process precisely and temperature-stable.

Characteristics:

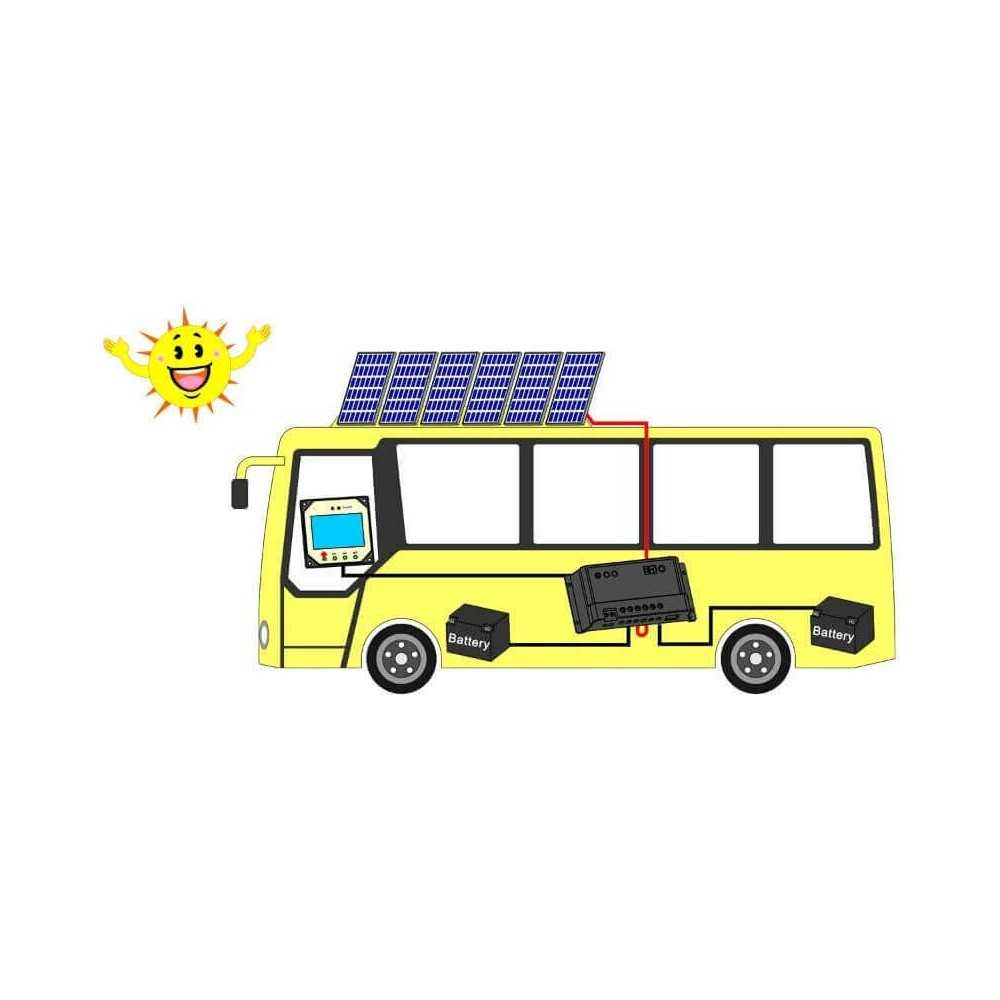

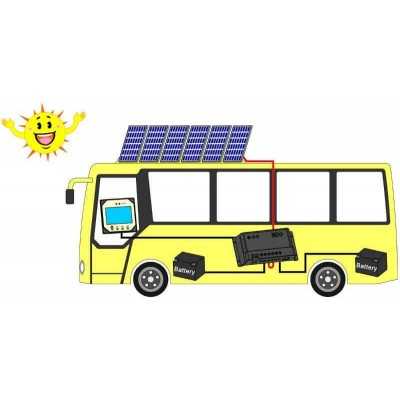

• Charges two different batteries in parallel ( zB starter battery + battery in the living area)
• Keeps the battery fully charged
• Can be used for acid, AGM and gel batteries
• protects the battery from overcharging
• prevents the battery from supplying voltage to the solar system at night
• Battery AND solar panel polarity reversal protection
• Automatic shutdown if the charging current exceeds the capacity of the controller
• Automatic shutdown in the event of a short circuit
• Automatic Temperature Compensation (ATC)

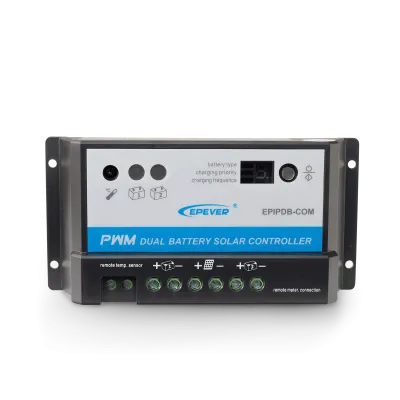

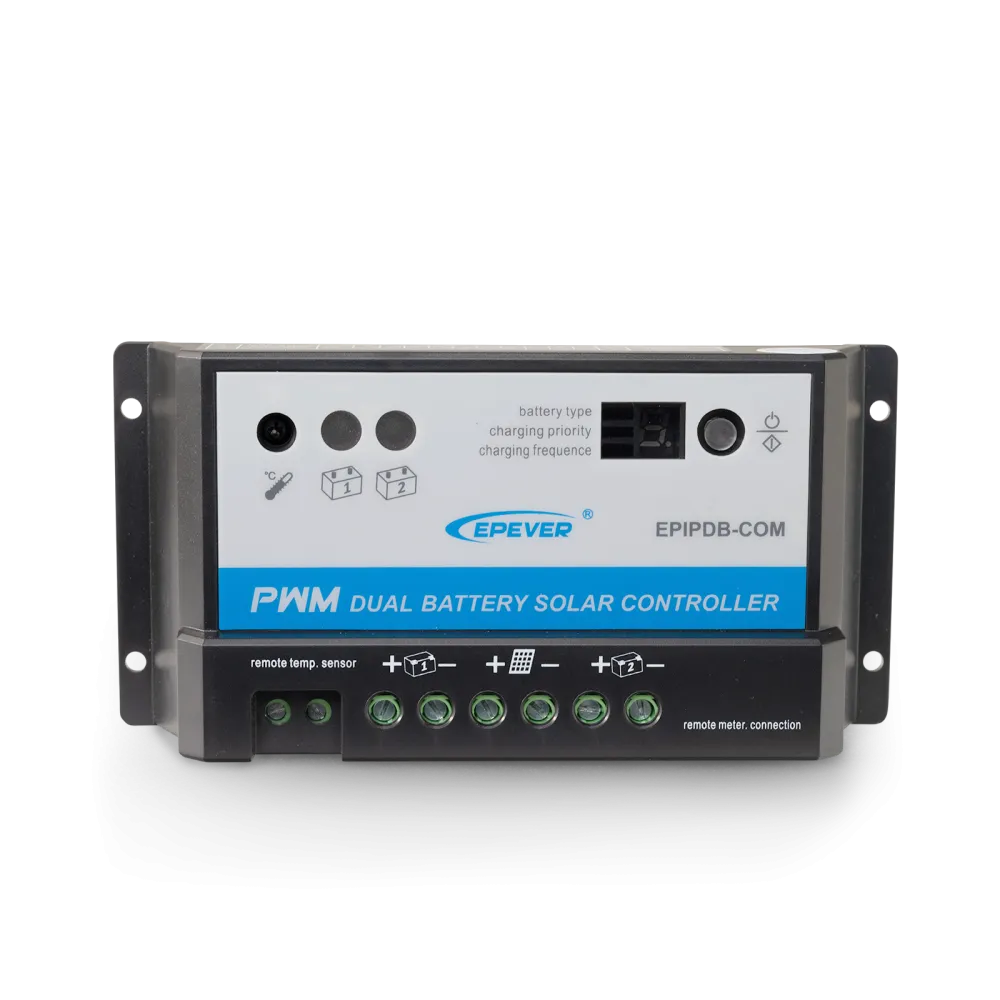

• LED indicates battery charge level
• PWM modulation
  Automatic switching on/off of the charging current, depending on the battery charge
• compatible to external remote control with display (MT-1)
• 3 battery types adjustable (acid, AGM, gel)
• Guarantee: 2 years

Technical details:

• Working voltage: 12V, 24V (automatically detected)
• Maximum working current: 20A
• DC input voltage (module working voltage) max. 12~18V with 12V battery and 24~37V with 24V battery
• Shutdown(full charge): 14V/ 28V
• Shutdown(Under Voltage): 10.5-11V / 21-22V
• Overvoltage protection
• short-circuit proof
• Leakage current with no charge: max. 5 mA
• Voltage drop:

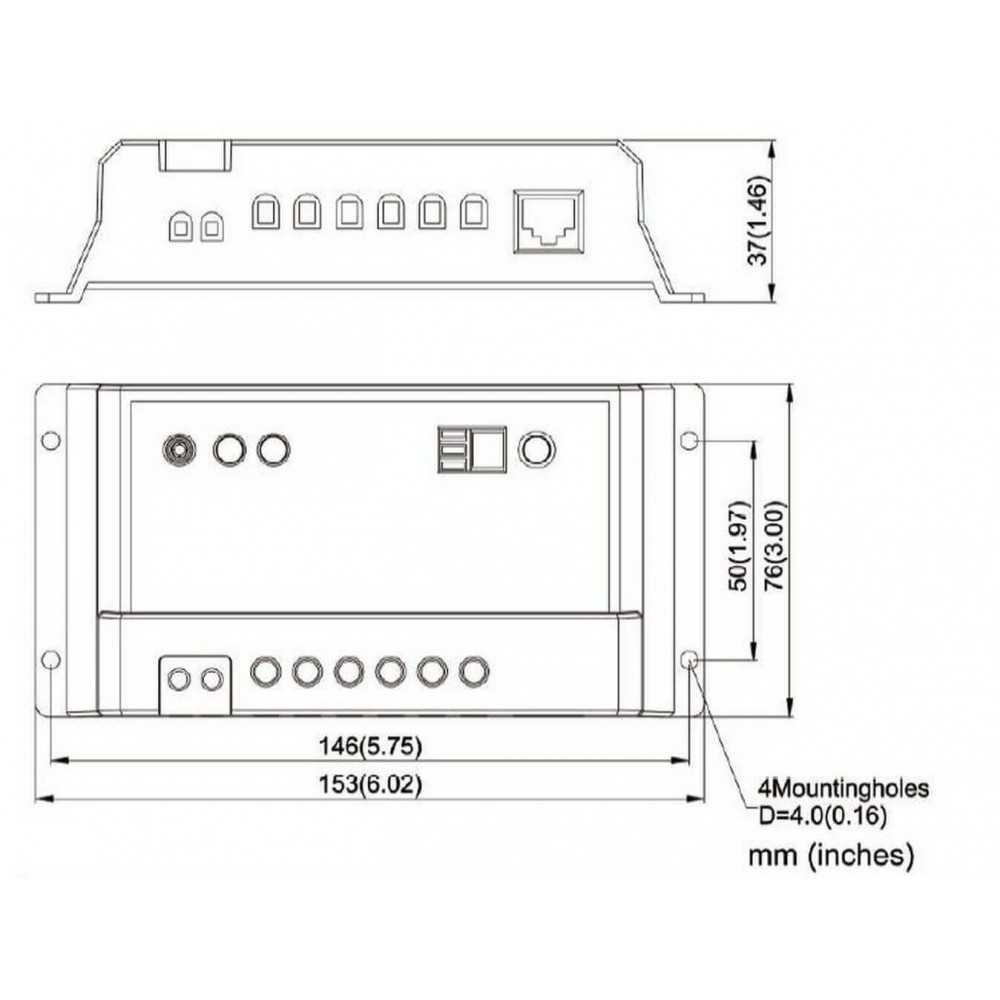

• Dimensions: 153mm x 76mm x 37mm
• Weight: 250g

The optional matching display MT1 for remote display and control can also be ordered in our shop.
