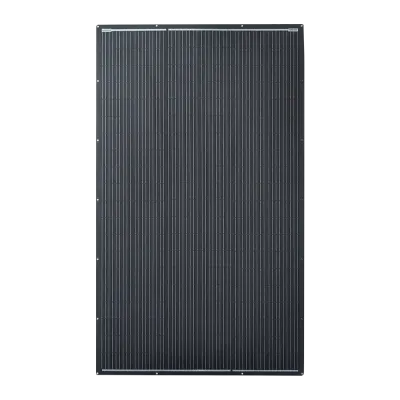

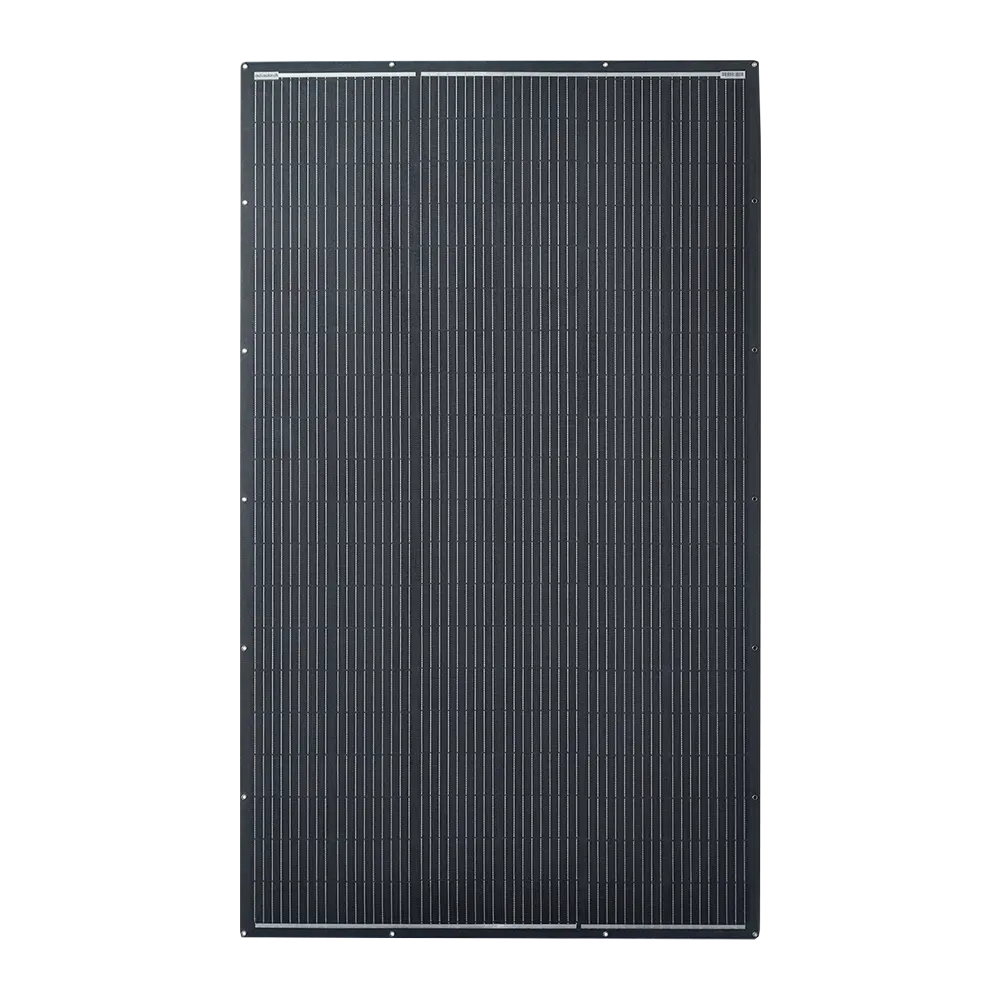

375 watt solar module 24V flexible
The only 2mm high, semi-flexible solar modules are ideal for use on the camper or as a balcony solar power plant.
With a rated output of 375 watts peak, the flexible module is very well suited for any small photovoltaic application. Can be used for boats, mobile homes, camping, garden sheds, island systems in places without a power connection, etc. Systems from 375 watts upwards can be implemented as required. On the front is the watertight junction box (IP65 weatherproof) with clamped connection cable and watertight plug connection, which allows full-surface mounting.

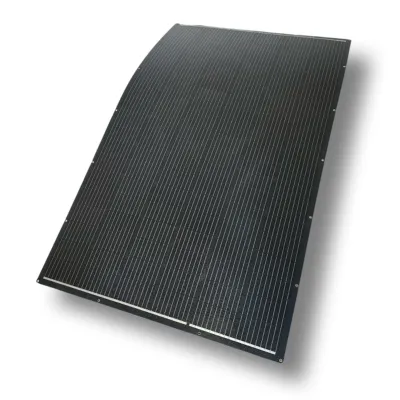

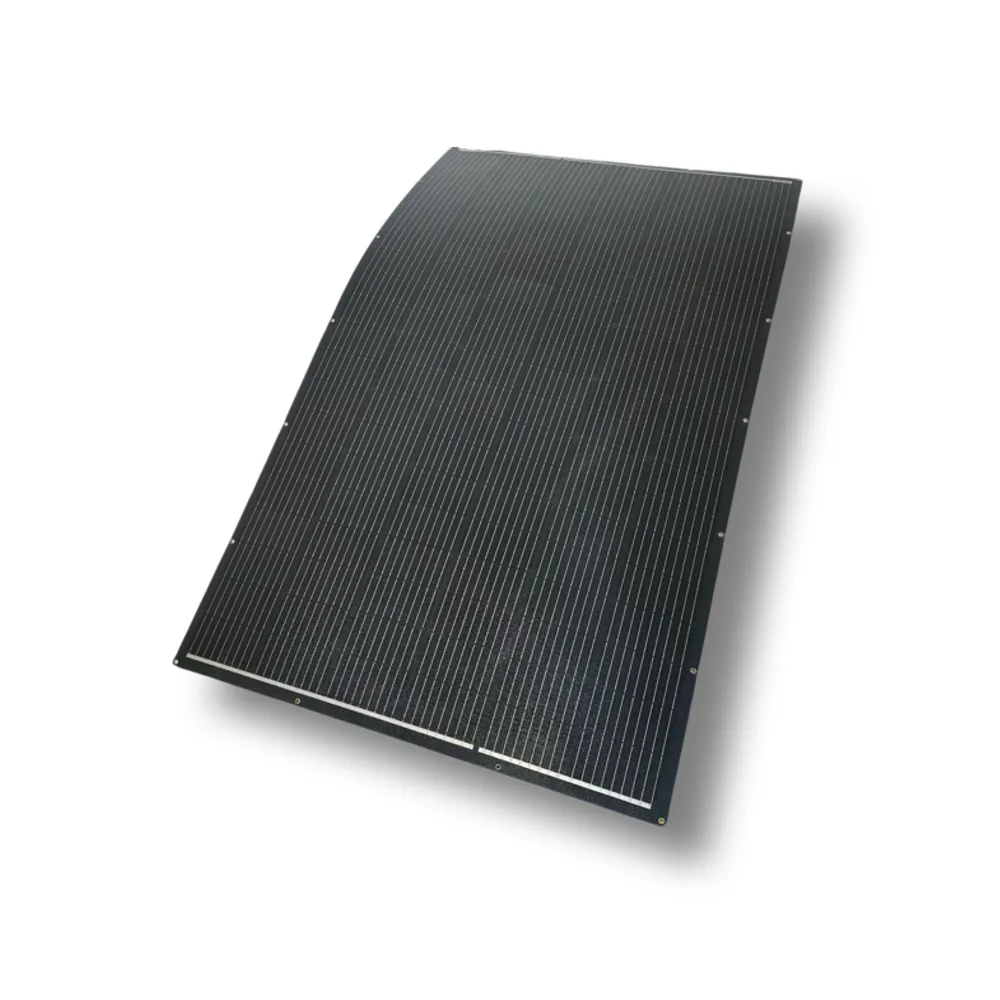

The solar modules are flexible and can be glued or screwed to curved or curved surfaces.
We have these quality modules manufactured under our strictest quality control. We attach great importance to performance and the best workmanship, which we constantly monitor. This is not a cheap product but the highest quality and controlled quality product .
Type: Monocrystalline silicone - EFTE surface

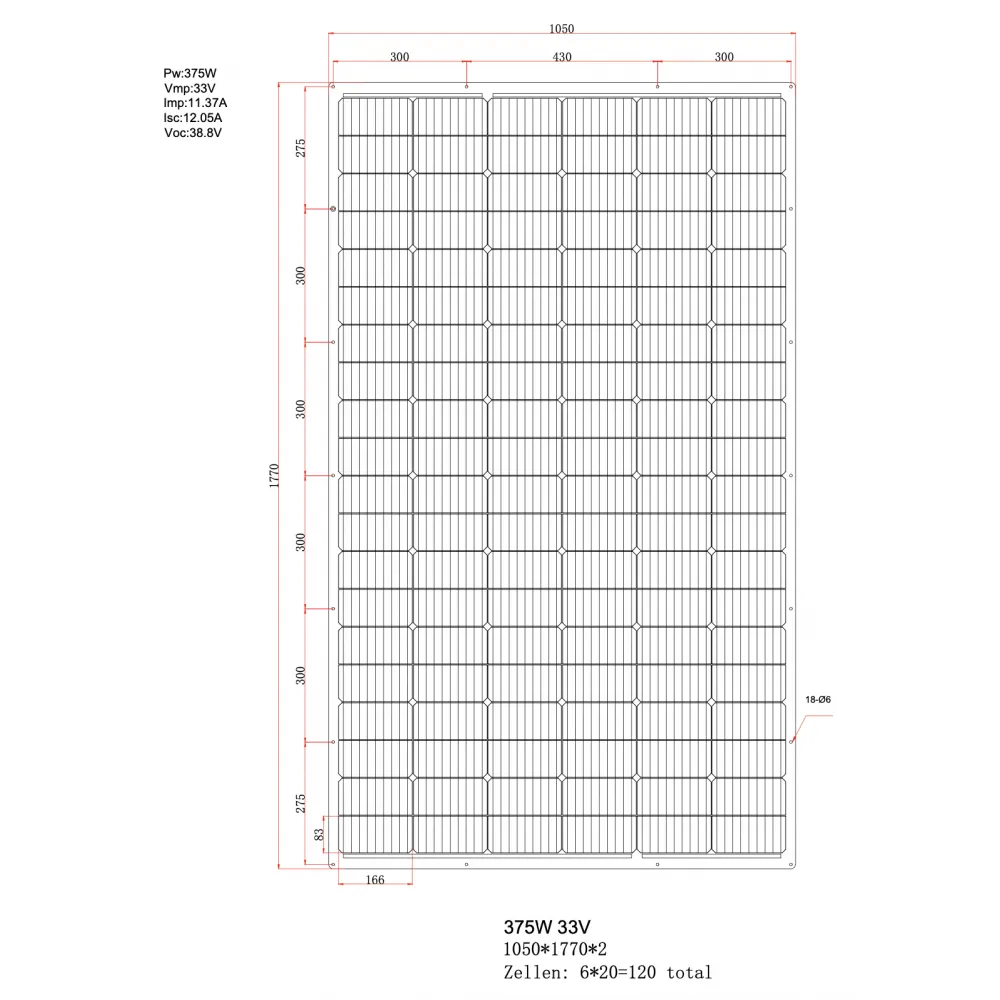

Size: 1050*1770*2mm
Number of cells: 120 (6*20)
Power: 375W

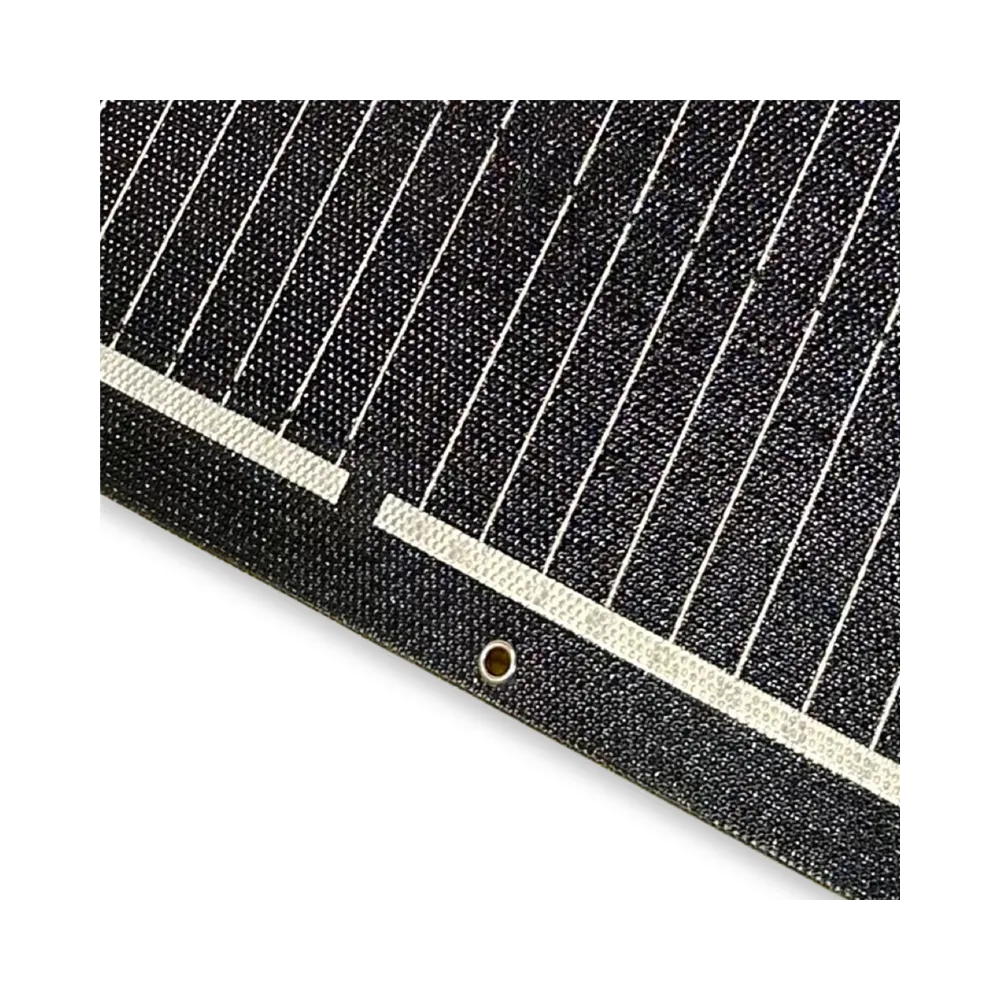

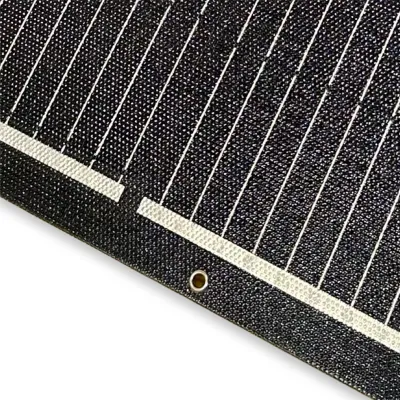

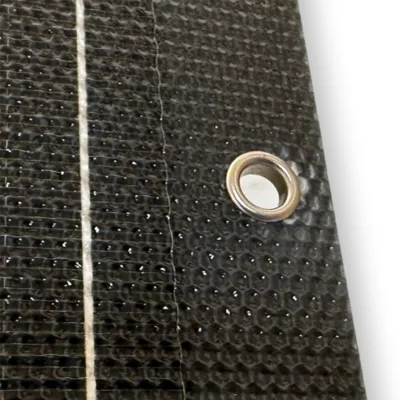

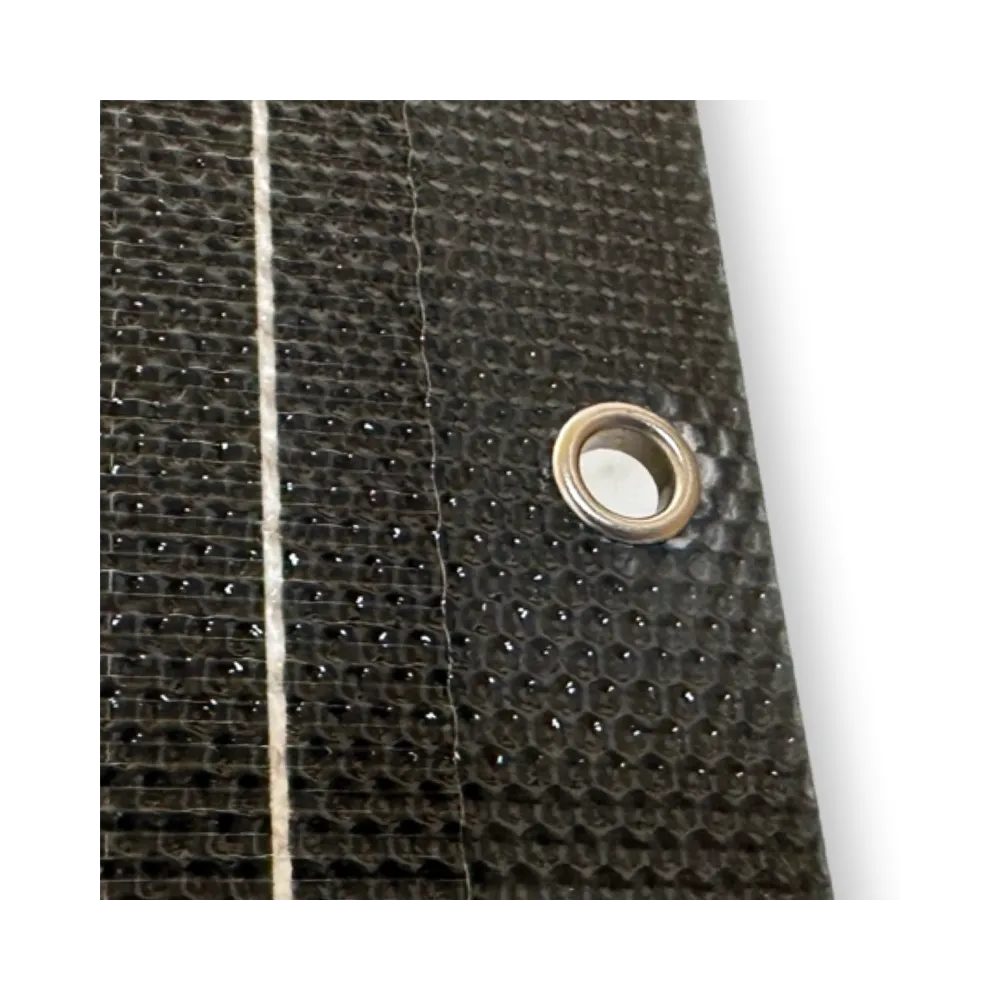

Surface: dust-repellent ETFE surface
Solar cells: Sunpower (Made in USA)

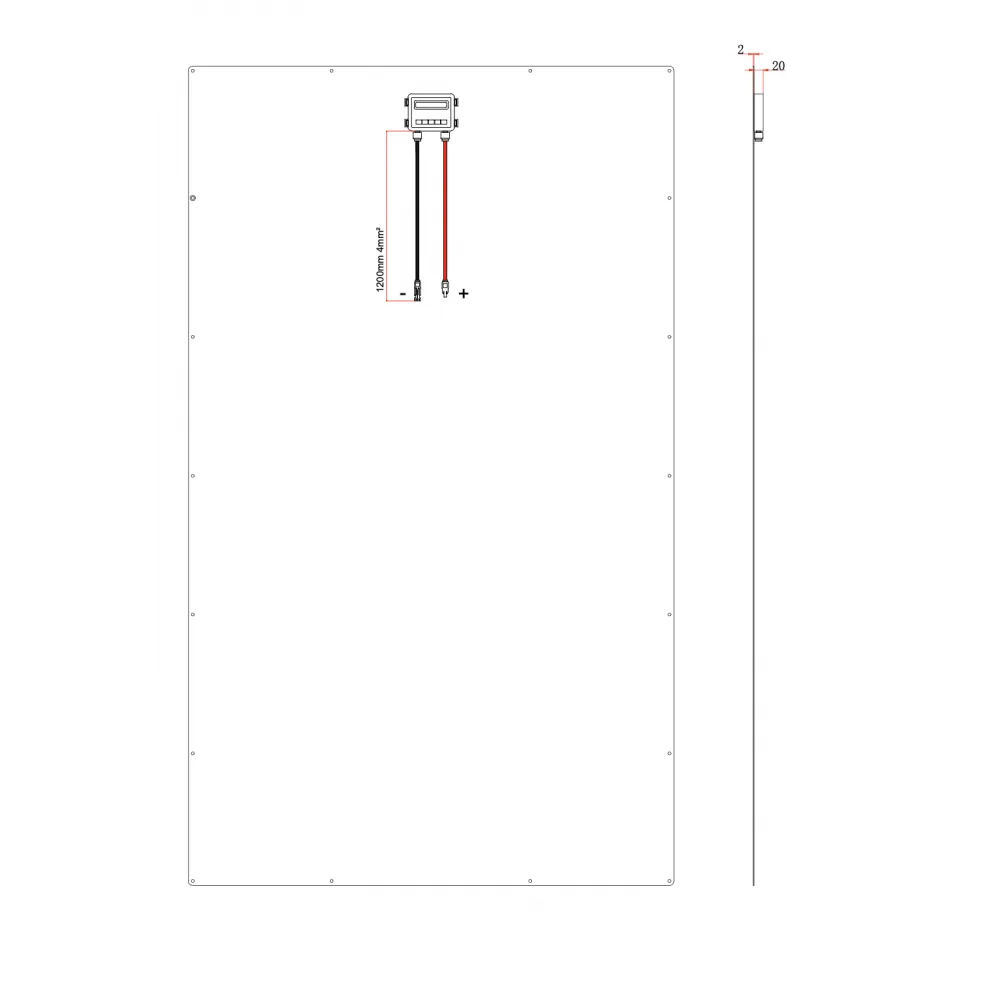

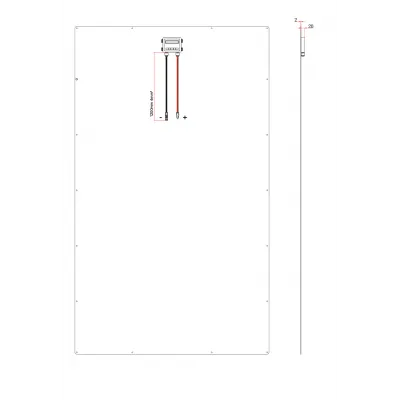

Cable: 90cm with MC4 compatible solar connectors (+ and -)

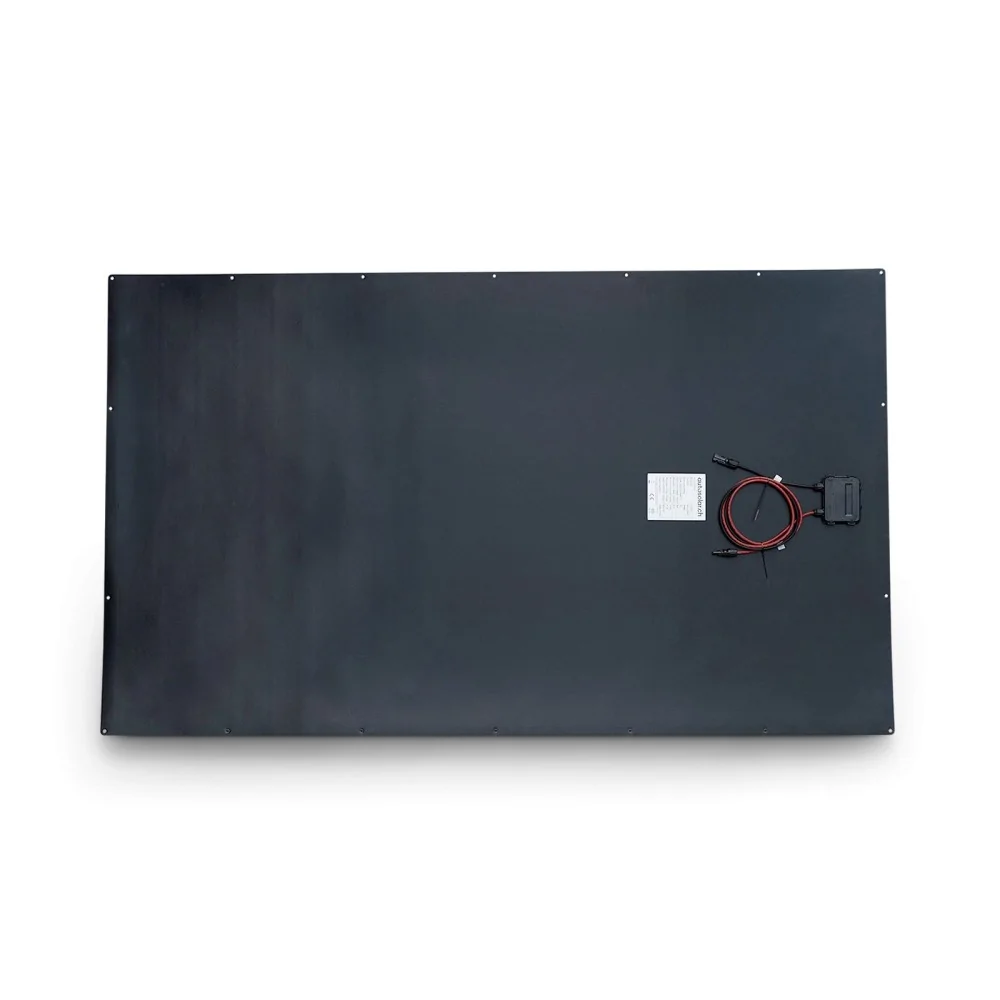

Connection box: rear
Installation: Can be glued with Sikaflex, tightened with cable ties or screwed.
Features : All Black, ultra flat (only 2mm) and highly efficient. Ideal for balcony power plants or campers.
Technical specifications:
| Maximum Power (+/- 5%) - Pmax | 375W |
| Open Circuit Voltage - Voc | 33.0v |
| Short circuit current - Isc | 12.05 A |
| Maximum Power Voltage (Vpm) | 23.0v |
| Maximum Power Current (Imp) | 11.37A |
| Maximum system voltage | 600VDC |
| length | 1050mm |
| Broad | 1770mm |
| Height | 2mm |
| number of cells | 200 |
| Weight | 6.5kg |
No specifications available
Bei 150W kann man ca. 600-700Wh pro Tag produzieren.
Jedes Auto ist unterschiedlich im Aufbau, darum können die Kosten nicht im Voraus bestimmt werden.
Wir empfehlen, dass Sie nur Solarmodule derselben Grösse zusammen mit einem Regler betreiben, da es sonst zu Verlusten bei den grösseren Modulen kommt.
Im Winter ist die Sonneneinstrahlung weniger stark als im Sommer. Dadurch kann der Ertrag auf 1/3 vom Sommer Ertrag fallen.
Bei unterschiedlicher Ausrichtung sollten die Solarmodule parallel zusammengeschlossen werden. Damit bei Abschattung nicht beide Solarmodule an Leistung verlieren.
Durch die Verschattung produziert die Solaranlage weniger Energie. Bei Standorten, bei dem ein Modul verschattet werden kann, sollten die Solarmodule parallel zusammengeschlossen werden.
Bei der Serienschaltung erhöht sich die Spannung der Solaranlage. Dies hat den Vorteil, dass auch bei schlechtem Wetter genügend Spannung vorhanden ist, damit der Laderegler optimal arbeiten kann. Serienschaltung kann nur mit einem MPPT-Laderegler gemacht werden.
