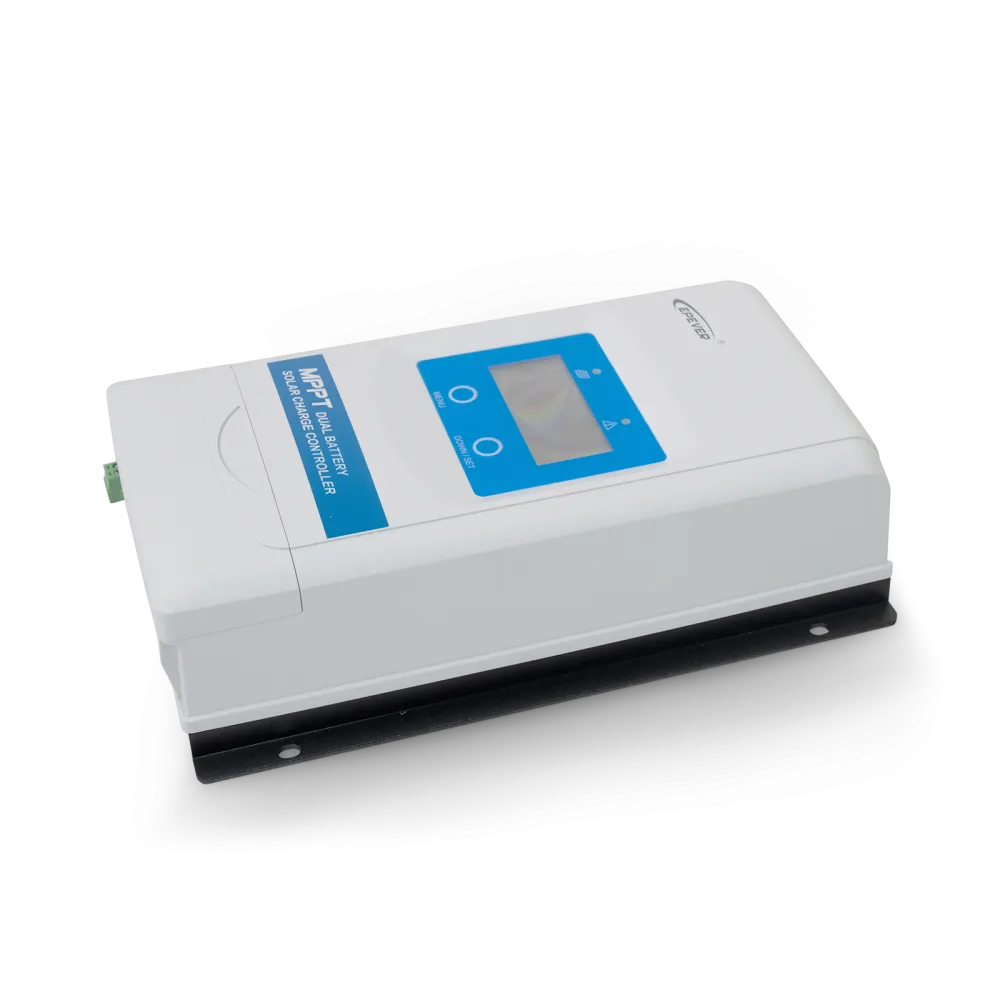

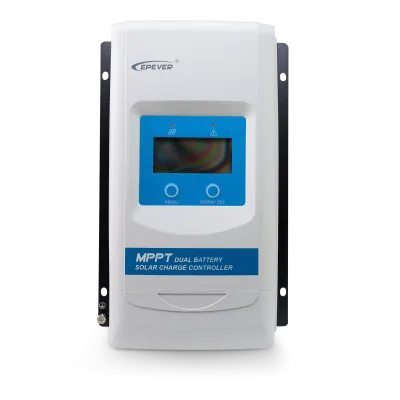

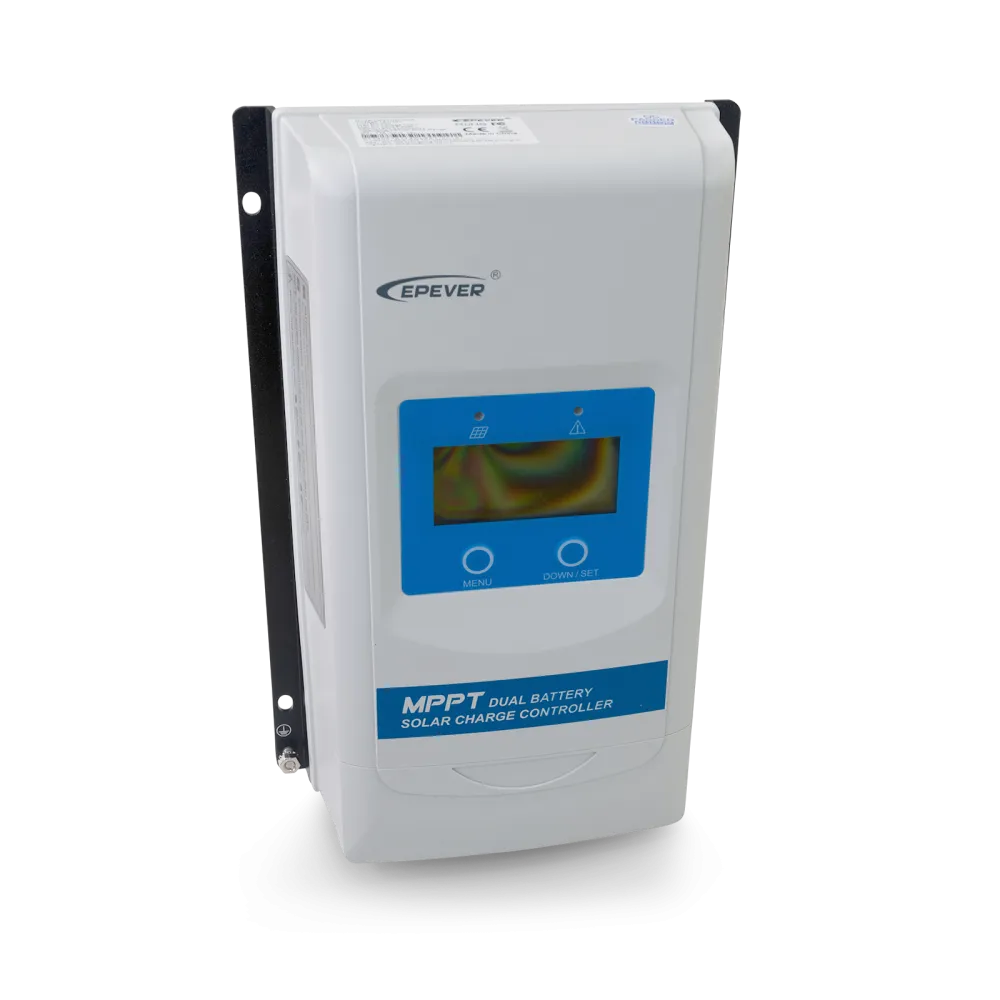

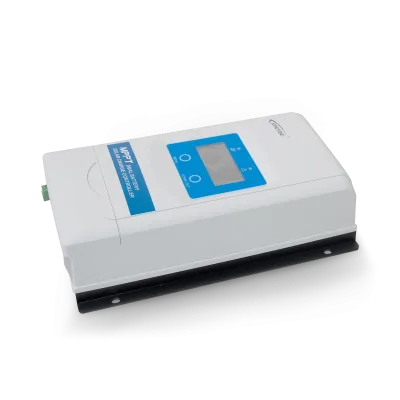

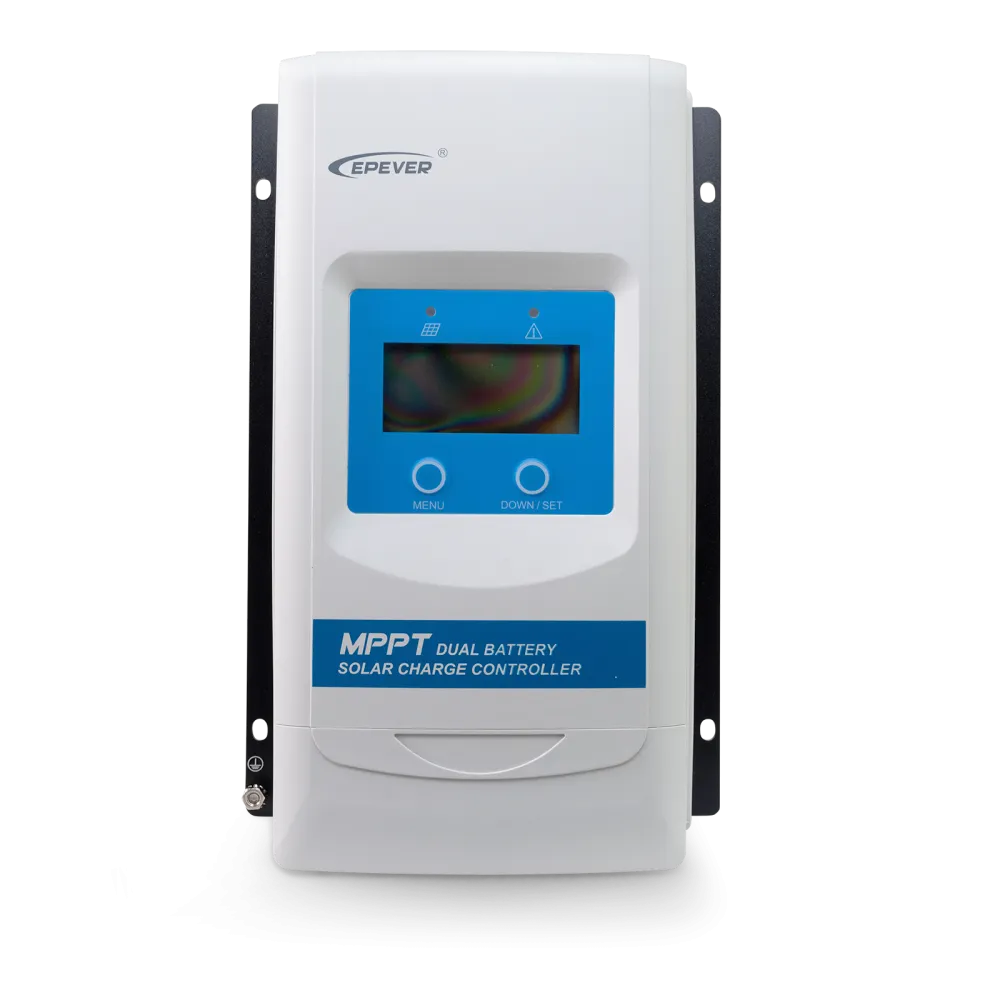

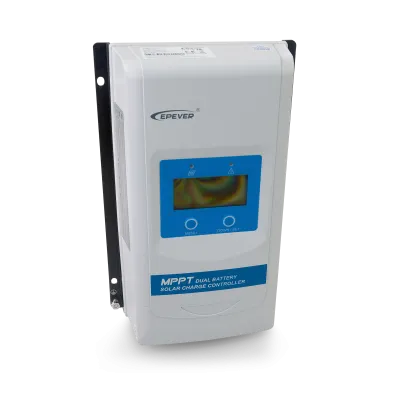

Dual charger MPPT 10A for 2 batteries

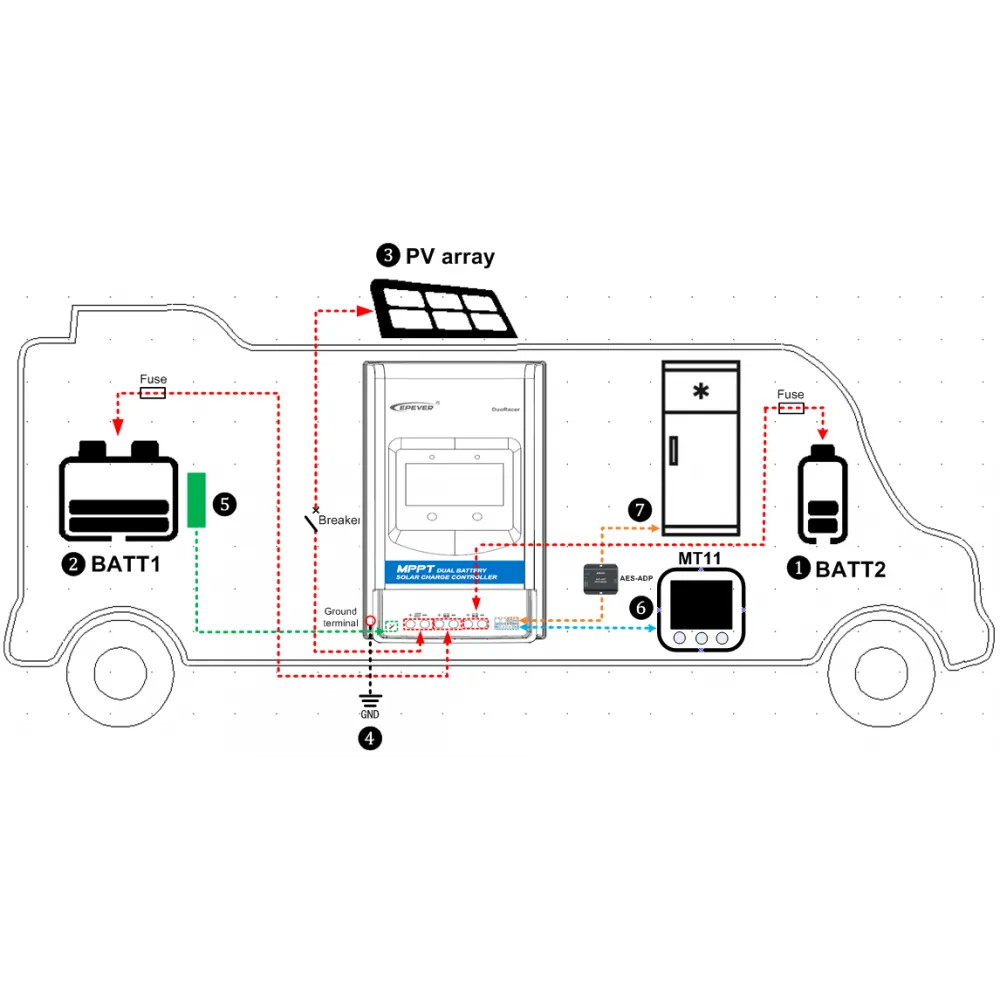

The dual charge controller charges two different batteries at the same time zB the consumer battery and the starter battery of the camper or mobile home. The charge controller is suitable for campers, mobile homes, boats and ships. In addition, the dual charge controller supports different types of batteries; lead-acid batteries, gel batteries; AGM batteries and lithium batteries. The dual charge controller automatically detects the starter battery voltage and charges the starter battery with 1A constant current.

• MPPT charging method for the consumer battery (battery 1)
• Constant current charge for starter battery (battery 2)
• Automatic charging from battery 1 and battery 2
• With MPPT (Max Power Point Tracking), the full power of your solar modules is used optimally.
• Module power up to 130 at 12V, up to 260W at 24V.
• Ideal for using the full power (20-40% more solar power yield) of your solar module to charge your 12 or 24 volt solar batteries.
• Efficiency of 98%, tracking effectiveness of 99.5%!
• With MPPT (Max Power Point Tracking), the solar power of your solar modules is optimally used.

The most efficient working point of the solar modules changes due to various factors, such as module temperature, irradiation, module type, etc. This working point is constantly monitored by the internal microcontroller and, if necessary, controlled in such a way that the solar module performs optimally and your batteries are charged with the greatest current .

The switching thresholds for over/under voltage, load disconnection and reset voltage are controlled precisely and temperature-stable via the internal microcontroller.

The integrated display shows all relevant parameters as well as the controller settings that can be changed. The remote control (optional) with comfort display for the MPPT solar charge controller enables a visual control of the charging parameters during operation and the remote control of the MPPT solar charge controller. The integrated real-time display enables the ampere hours to be evaluated.

features

• MPPT (Max Power Point Tracking)
• Automatic system voltage detection 12/24V
• Solar input voltage range of up to 60V
• Battery deep discharge protection, overcharge protection, overvoltage protection
• Protection against desulfation
• Temperature-dependent charging parameter correction
• Over-temperature protection, over-current protection, polarity protection

The controller can be set and monitored with the optionally available MT11 display.

• battery type: geeignet für Blei/AGM/Gel/Lithium
• guarantee: 2 year product guarantee
• الوزن: 0.750kg
• Size (length x width x height): 227.2x143.0x58.1mm
• Tension: 12V / 24V
• DC-Eingangsspannung: 60V
• charging current: 10A
